FE11-50 Series Encoder: Two channels, optical type. Its typical application is printing machine, servo motor, working plant automation. Not recommed use on application referring to human safety, such as application with brake system.
option:
  • FE11-50
  • FE11-50
  • FE11-50
  • FE11-50

Parameter Overview:

Suitable

Motor

Motor size

Suitable for 57,60,70,80,86 and   above(Stepper/Brushless/Servo Motor)

Motor Shaft   diameter

Suitable for shaft   diameter 3mm,4mm,5mm,6mm,6.35mm,8mm

Storage Temperature

-4085

Environmental conditions

Application

No corrosive, flammable, explosive, conductive   gas, liquid and dust.

Temperature

-40℃~80

Humidity

No more than 85% RH

Electrical   Parameter

Supply Voltage

5VDC±0.5V

Current Consumption

≤21mA

Signal

Output

Single-ended

5V,GND,A,B

Differential

5V,GND,A+/A-,B+/B-

Output Level Mode

TTL Compatible

Differential   Output Voltage

High Level   Output (VoH) ≥3.4V

Low Level Output   (VoL) ≤0.4V

Differential   Signal Output Format

Line Drive 26C31

Optional   Resolution(UnitPPR

Decimal100,200,360,400,500,1000,2000,2500

二进制(Binary)256,512,1024

Duty cycle

50% ±10%

Phase difference

 90°±10°

Frequency Response

440KHz

Note: The signal frequency = (Speed(Rpm) *  number of Lines)/60

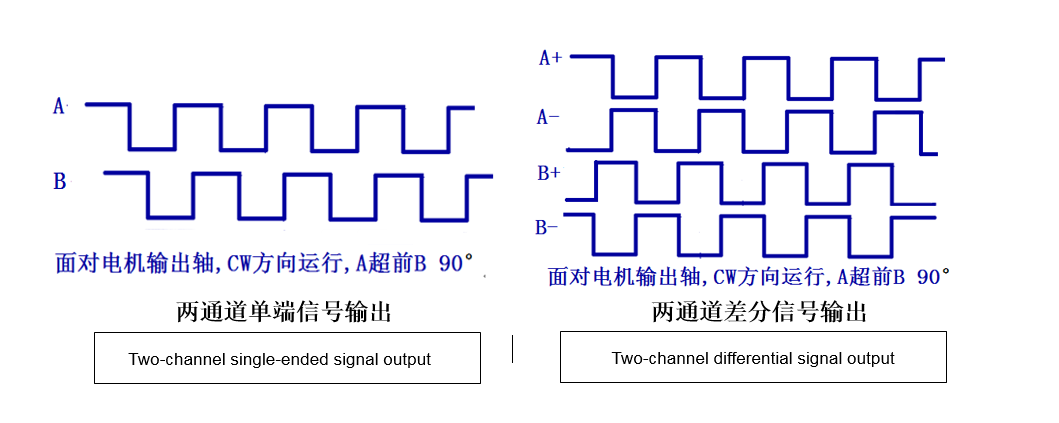

Waveform:image

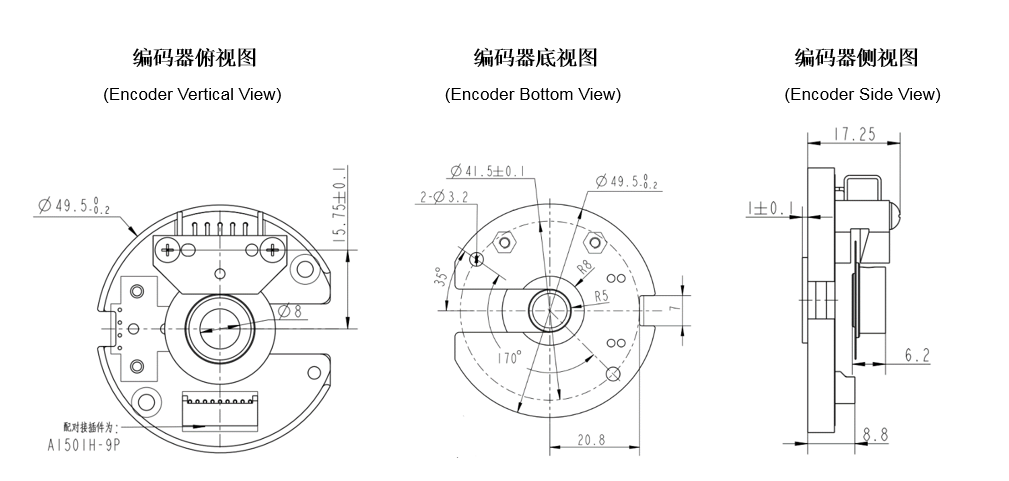

Motor size


Download
FE11-50系列 两通道高性能光电编码器 231.22 KB
