FL14SBL
Product Slotless BLDC motor

FL14SBL

Φ 14mm high speed toothed slotless motor, 6VDC, 11000RPM
option:
  • FL14SBL
  • FL14SBL
  • FL14SBL
  • FL14SBL

特性概要 ( General Specifications )


绕组连接方式 ( Winding Type )

星形 ( Star connection)

介电强度 ( Dielectric Strength )

600VAC/1S

绝缘电阻( Insulation Resistance )

100MΩ, 500VDC

环境温度 ( Ambient Temperature )

-20°C   ~   +50°C

绝缘等级 (Insulation Class)

Class B

径向间隙 ( Radial Play )

0.025mm@4N

轴向间隙 ( Axial Play )

0.3mm@4N

最大径向负载 ( Max radial force )

15N距法兰10mm

( 10mm From the flange)

最大轴向负载 ( Max axial force)

5N


电性能 (Electrical Specifications)


单 位 (Unit)

FL14SBL45-6V-12000

极数  ( Number of poles )


2

相数  ( Number of phases )


3

额定电压 ( Rated  voltage )

VDC

6

空载转速 (No load speed)

RPM

11000

空载电流 (No load current)

A

0.1

额定转矩 ( Rated torque)

mN.m

3.6

额定电流 (Rated current)

A

0.8

额定速度 ( Rated speed )

RPM

                 10000

额定功率 ( Rated power )

W

3.8

额定效率 (Rated efficiency)

%

70%

峰值转矩 ( Peak torque )

mN.m

10.8

峰值电流 ( Peak current )

A

2.4

线电阻 ( Line to line resistance )

ohms@20℃

1.3

线电感 ( Line to line inductance )

mH

0.06

转矩常数 ( Torque constant )

mNm/A

5.27

反电势 ( Back EMF )

Vrms/Krpm

0.39

外壳-环境热阻( Housing - Ambient thermal resistance)

K/W

7.32

电机热时间常数(Motor thermal time constant)

S

869

绕组最高允许温度(Max temperature of winding)

155

电气时间常数(Electrical time constant)

ms

0.046



接线说明(Electric Connection)

线颜色( Color)

线型号(Type)

功能( Functions)

黄色(Yellow)

UL1332 AWG20

U相 ( Phase U )

红色( Red)


V相 ( Phase V )

黑色(Black)


W相 ( Phase W )

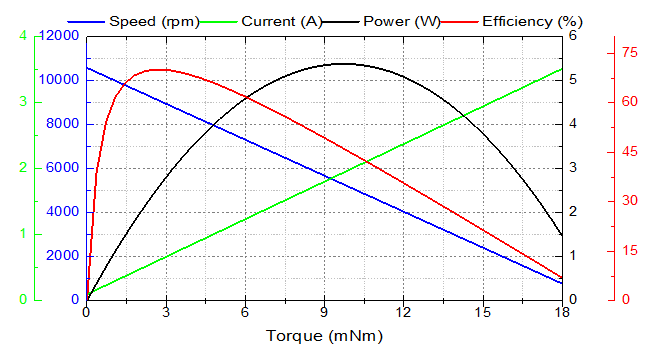

运行特性(Perfromance)



该款电机可以根据客户需求定制。

The motor can be designed &manufactured with customized request.


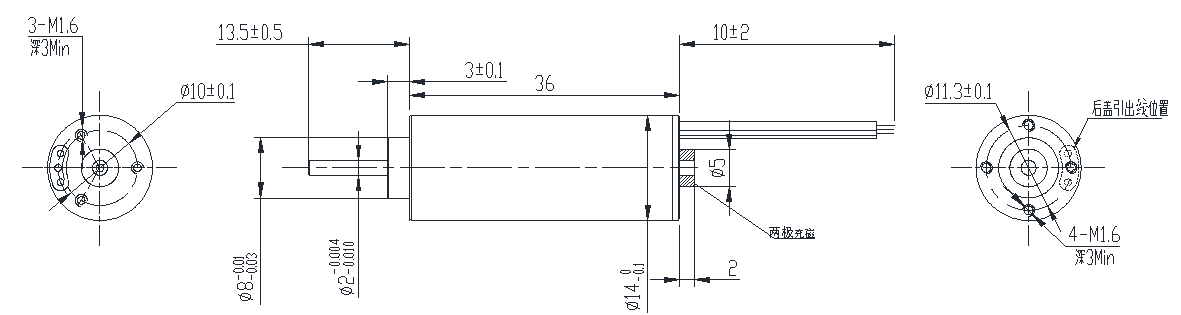

Motor size


Download
