FL46ST
Product 2 phase stepper motor

FL46ST

1.8 ° 46mm, ST structure ultra-thin stepper motor
option:
  • FL46ST
  • FL46ST
  • FL46ST
  • FL46ST

特性概要(General specification)

项目(Item)

说明(Specifications)

步距角(Step Angle)

1.8°

步距角精度(Step Angle Accuracy)

±5% (整步无负载,full step, no load)

径向间隙( Radial Play)

0.02mm@450 g

轴向间隙( Axial Play)

0.08mm@450 g

最大径向负载(Max. radial force)

10N  距法兰20mm  (20mm from the flange)

最大轴向负载(Max. axial force)

2N

介电强度(Dielectric Strength)

600VAC / 1s

绝缘电阻(Insulation Resistance)

100MΩ ,500VDC

环境温度(Ambient Temperature)

-20。C~+50。C

绝缘等级(Insulation Class)

Class B



电性能(Electrical specifications)

型号(Model No.)

Current

/Phase

每相

电流

Resistance

/Phase

每相

电阻

Inductance

/Phase

每相

电感

Holding

Torque

保持

转矩

Detent

Torque

定位

转矩

# of Leads

引出线数

Rotor

Inertia

转动惯量

Weight

重量

Length

机身

长度

Single shaft

(单出轴)

A

Ω

mH

N.m

N.m

#

g-cm2

kg

mm

FL46ST16-1004A-01

1.0

3.2

2.5

0.08

0.006

4

11

0.1

15.3



该款电机可以根据客户需求定制。

The motor can be designed &manufactured with customized request.

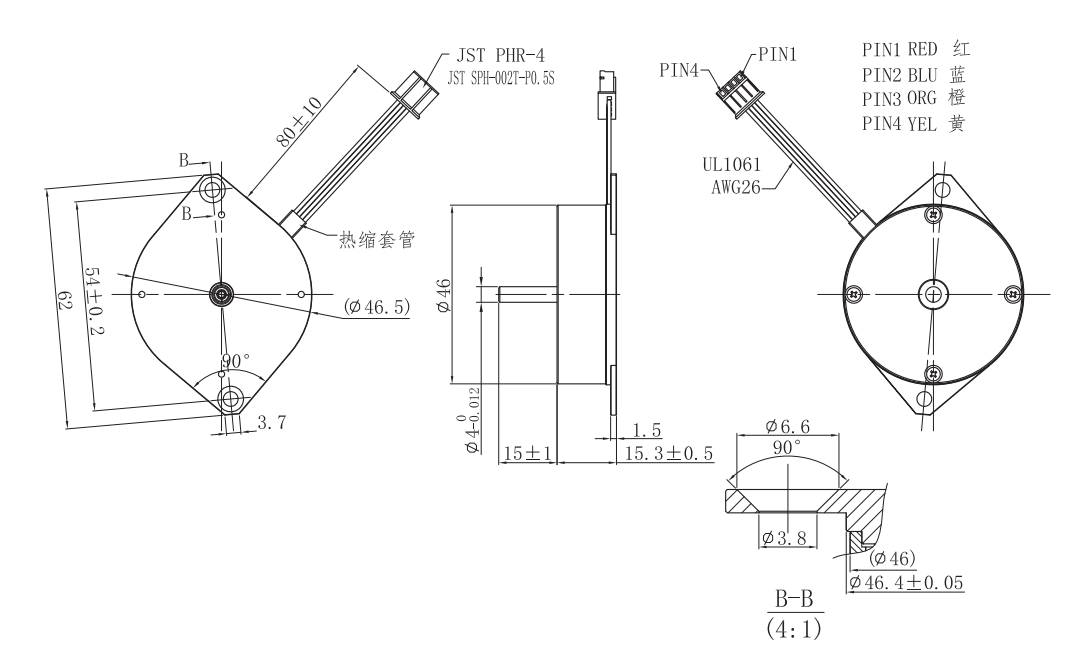

Motor size

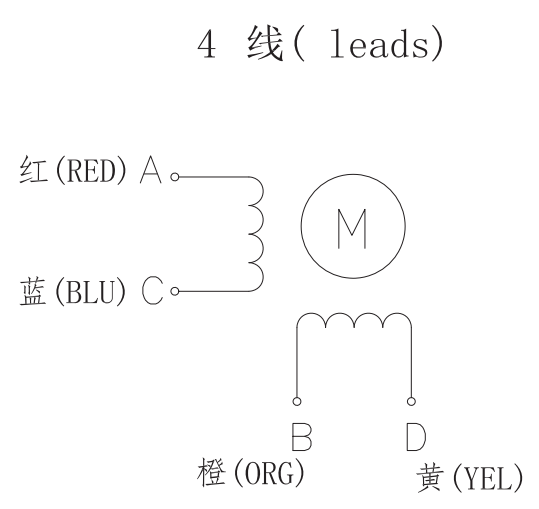

接线图(Wiring Diagram)

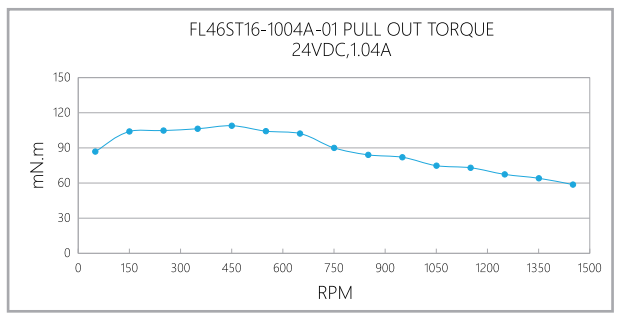

矩频曲线 (Pull out torque curve)



Download
FL46ST16-1004A-01 160.89 KB
