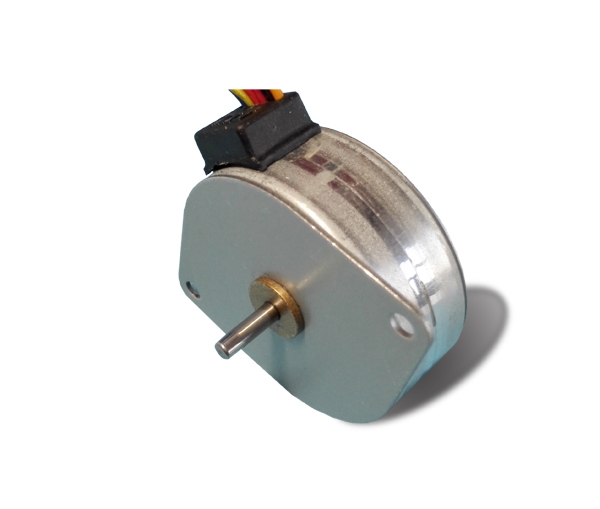

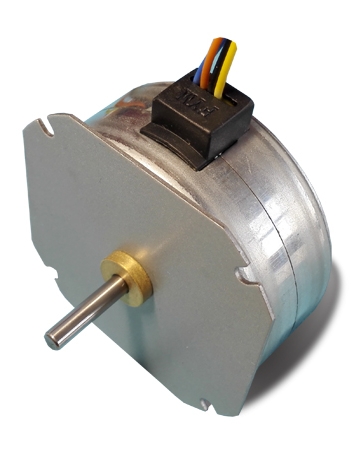

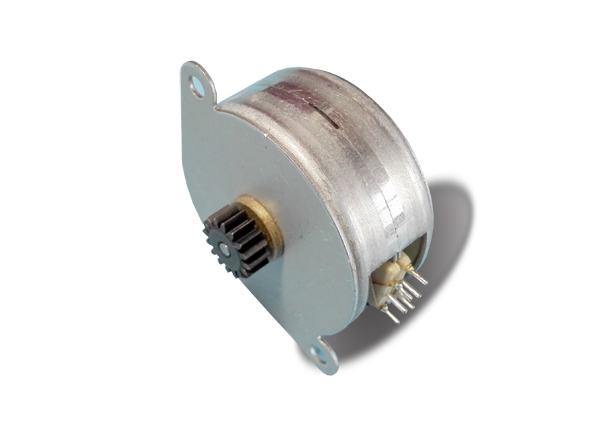

Product PM stepper motor

PM35/42/49/57

Φ35,42,49,57mm PM Stepper motor
option:
  • PM35/42/49/57
  • PM35/42/49/57
  • PM35/42/49/57
  • PM35/42/49/57

特性概要General Specification

Item

Specifications

步距角精度Step Angle Accuracy

±8% (整步空载full step, no load)

电阻公差Resistance Accuracy

±10%

电感公差Inductance Accuracy

±20%

温升Temperature Rise

80。C Max.(额定电流,2相通电

rated current,2 phase on)

环境温度Ambient Temperature

-20℃+50℃

绝缘电阻Insulation Resistance

100MΩMin. ,500VDC

介电强度Dielectric Strength

500VAC/1s

径向间隙Shaft Radial Play

0.06Max. (450 g-load)

轴向间隙Shaft Axial Play

0.08Max. (450 g-load)



电性能SPECIFICATIONS

型号

Model

步距角Step Angle

(Deg.)

相数

No. of

Phase

电压Voltage



(V)

相电流Current

/Phase

(A)

相电阻

Resistance

/Phase

(ohms)

保持力矩

Holding

Torque

(g.cm)

定位力矩

Detent

Torque

(g.cm)

转子惯量

Rotor

Inertia

(g.cm^2)

接线图

Wire

Diagram

PM3522-01A

15

2

5

0.46

11

335





125









7.5



A

PM3522-02A

15

4

5

0.46

11

300

B

PM3522-01B

7.5

4

5

0.862

5.8



550

PM3522-02B

7.5

2

5

0.5

10

A

PM3522-03B

7.5

2

12

0.2

608

PM3516-01

7.5

4

12

0.255

47

300

65

B

PM3516-02

7.5

2

5

0.42

12

350

75

A

PM4222-01A

7.5

4

12

0.8

15

800

210

9.6



B

PM4222-02A

7.5

2

4.2

0.6

7

800

210

A

PM4222-01B

7.5

2

12

0.13

95

550

100

7.5

PM4222-02B

7.5

4

5

0.81

6.2

600

110

B

PM4217-01

7.5

4

12

0.24

50

600

90

9.6

PM4217-02

7.5

2

5

0.59

8.6

500

100

A

PM4930-01

7.5

2

5

0.9

5.5

1700

350

<14.5


PM5725-01

7.5

4

12

0.6

21

1500

425

<12.5

B

PM5725-02

7.5

2

5.6

0.625

9

1200

A


该款电机可以根据客户需求定制。

The motor can be designed &manufactured with customized request.

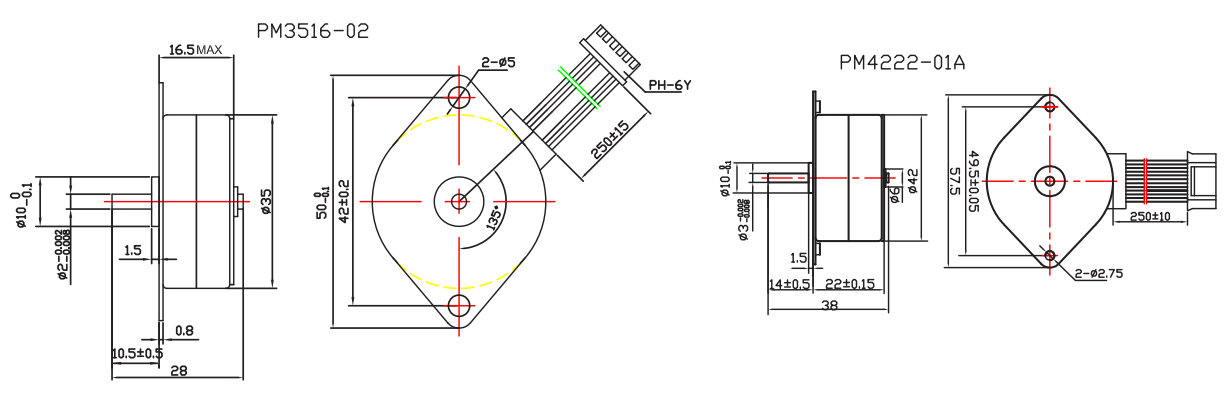

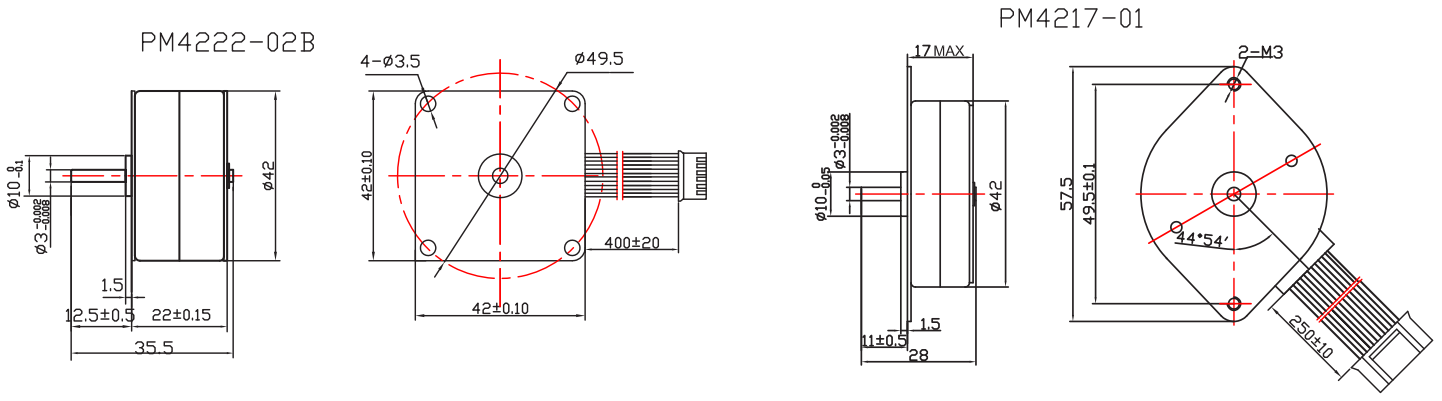

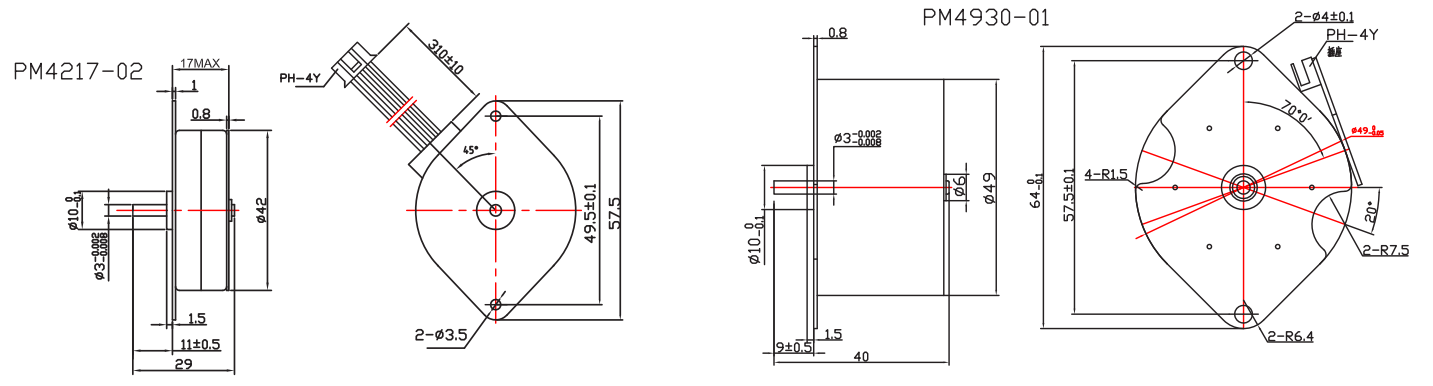

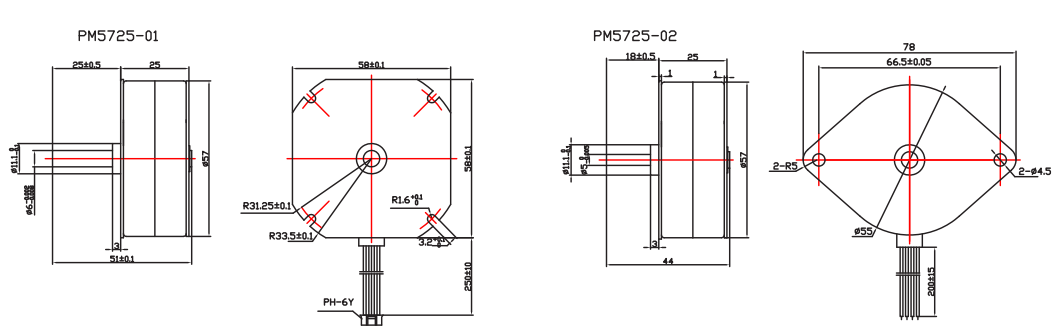

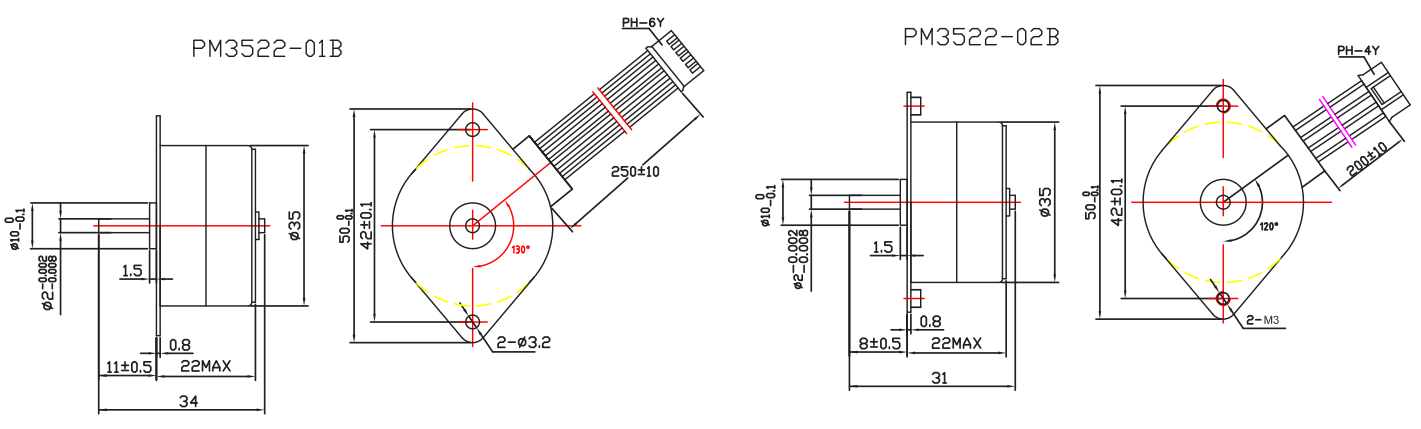

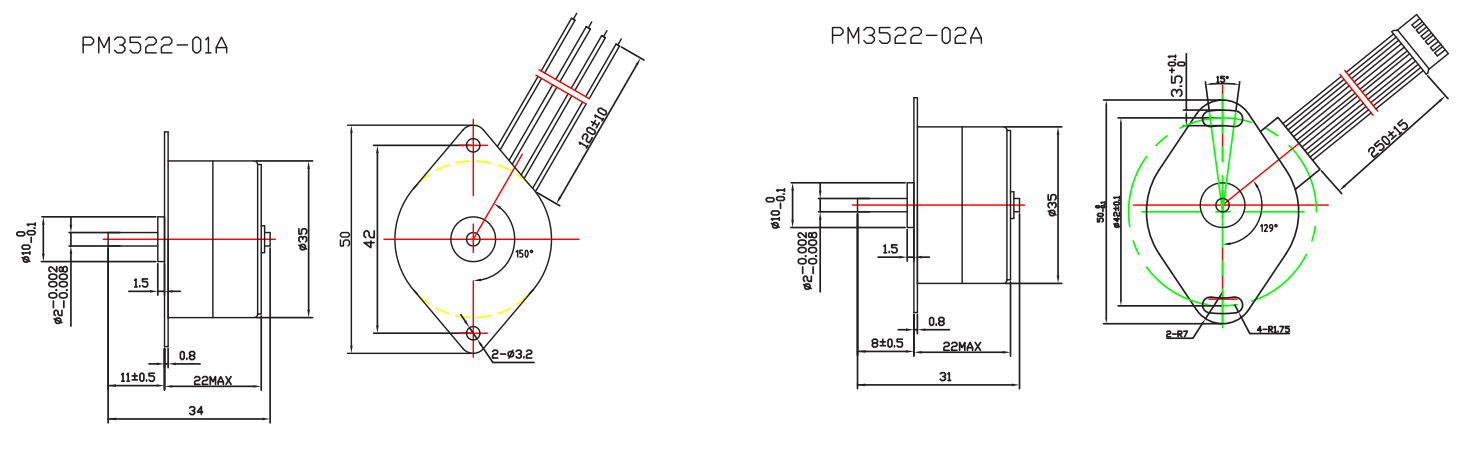

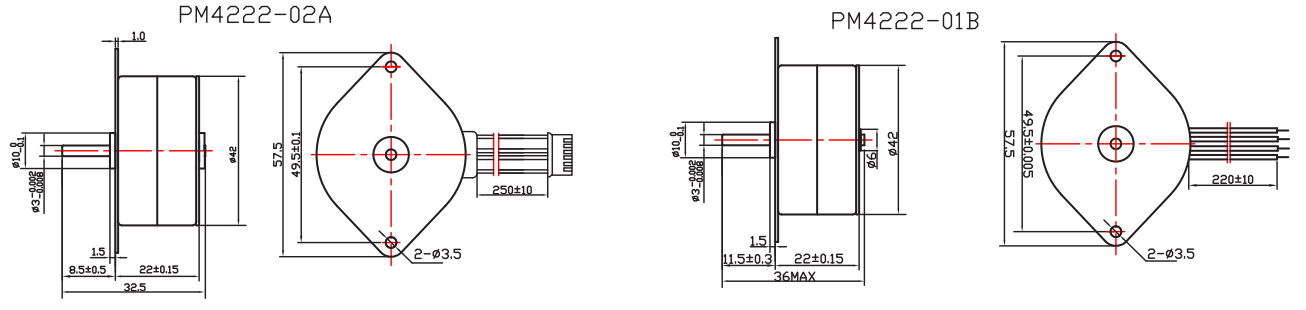

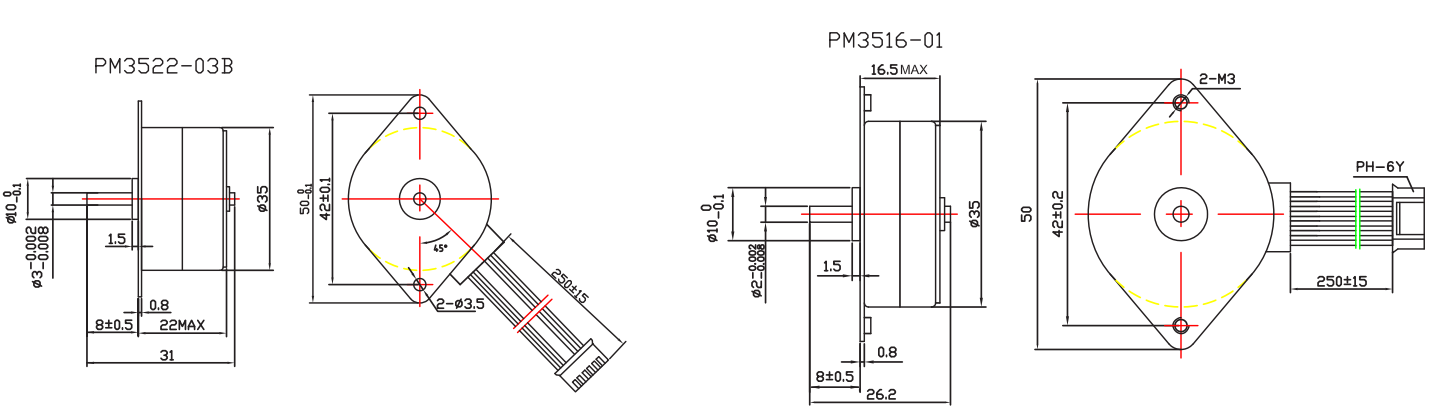

Motor size

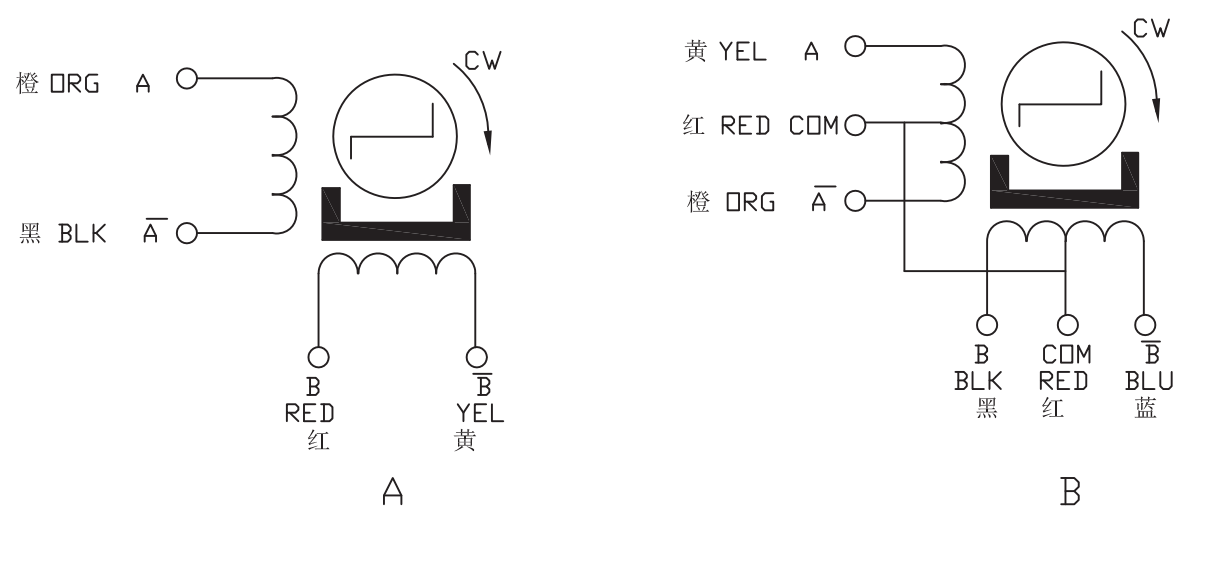

接线图WIRING DIAGRAM
