FL22SBL
Product Slotless BLDC motor

FL22SBL

Φ 22mm high speed toothed slotless motor, 24VDC, 40000RPM~48000RPM
option:
  • FL22SBL
  • FL22SBL
  • FL22SBL
  • FL22SBL

特性概要 ( General Specifications )

绕组连接方式 ( Winding Type )

星形 ( Star connection)

介电强度 ( Dielectric Strength )

360VAC/1S

绝缘电阻( Insulation Resistance )

100MΩ, 500VDC

环境温度 ( Ambient Temperature )

-20°C   ~   +50°C

绝缘等级 (Insulation Class)

Class B

径向间隙 ( Radial Play )

0.02mm@4N

轴向间隙 ( Axial Play )

0.14mm@4N

最大径向负载 ( Max radial force )

8N距法兰5mm

( 5mm From the flange)

最大轴向负载 ( Max axial force)

4N


电性能 (Electrical Specifications)


单 位 (Unit)

FL22SBL58-24V-450-100A

FL22SBL70-24V-300-130A

极数  ( Number of poles )


2

2

相数  ( Number of phases )


3

3

额定电压 ( Rated  voltage )

VDC

24

24

空载转速 (No load speed)

RPM

48000

40000

空载电流 (No load current)

A

0.56

0.7

额定转矩 ( Rated torque)

mN.m

21

41

额定电流 (Rated current)

A

5

8.5

额定速度 ( Rated speed )

RPM

45000

30000

额定功率 ( Rated power )

W

100

130

额定效率 (Rated efficiency)

%

83.8

80

峰值转矩 ( Peak torque )

mN.m

63

82

峰值电流 ( Peak current )

A

15

17

线电阻 ( Line to line resistance )

ohms@20℃

0.15

0.35

线电感 ( Line to line inductance )

mH

0.012

0.036

转矩常数 ( Torque constant )

mNm/A

4.72

5.67

反电势 ( Back EMF )

Vrms/Krpm

0.35

0.42

外壳-环境热阻( Housing - Ambient thermal resistance)

K/W

6.74

6.2

电机热时间常数(Motor thermal time constant)

S

900

860

绕组最高允许温度(Max temperature of winding)

155

155

电气时间常数(Electrical time constant)

ms

0.08

0.1


接线说明(Electric Connection)

线颜色( Color)

线型号(Type)

功能( Functions)

红色(Red)

AFR250-SY AWG26

霍尔电源正(Vcc)

蓝色(Blue)


霍尔 W ( Hw )

绿色(Green)


霍尔 V ( Hv )

白色(White)


霍尔 U ( Hu )

黑色(Black)


霍尔电源负(GND)

黄色(Yellow)

UL1332 AWG22

U相 ( Phase U )

红色( Red)


V相 ( Phase V )

黑色(Black)


W相 ( Phase W )

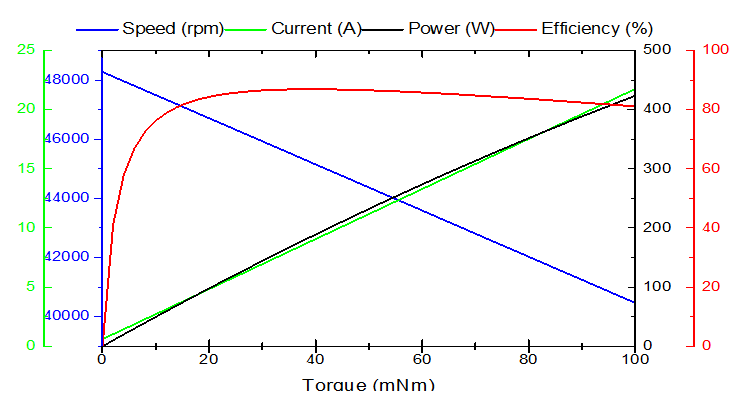

运行特性(Perfromance)



该款电机可以根据客户需求定制。

The motor can be designed &manufactured with customized request.

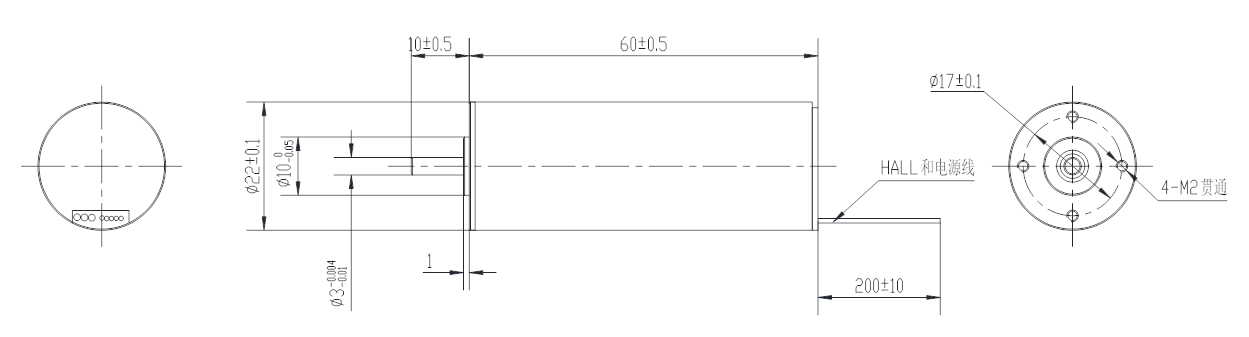

Motor size
