FL863P
Product 3 phase stepper motor

FL863P

1.2 ° 86mm, Nema 34, three-phase hybrid stepper motor
option:
  • FL863P
  • FL863P
  • FL863P
  • FL863P

特性概要(General specification)

项目(Item)

说明(Specifications)

步距角(Step Angle)

1.2°

步距角精度

±5% (整步,空载)

径向间隙( Radial Play)

0.025mm@500 g

轴向间隙( Axial Play)

0.075mm@1000 g

最大径向负载(Max. radial force)

220N  距法兰20mm  (20mm from the flange)

最大轴向负载(Max. axial force)

60N

介电强度(Dielectric Strength)

1200VAC /1S

绝缘电阻(Insulation Resistance)

100MΩ ,500VDC

环境温度(Ambient Temperature)

-20。C~+50。C

绝缘等级(Insulation Class)

Class B



电性能(Electrical specifications)

型号. (Model No.)

Current

/Phase

每相

电流

Resistance

/Phase

每相

电阻

Inductance

/Phase

每相

电感

Holding

Torque

保持

转矩

Detent

Torque

定位

转矩

# of Leads

引出线数

Rotor

Inertia

转动惯量

Weight

重量

Length

机身

长度

Single shaft

(单出轴)

A

Ω

mH

N.m

N.m

#

g-cm2

kg

mm

FL863P67-01AW

1.75

4.25

11

2.0

0.08

6

1120

1.65

67

FL863P97-01AW

2

5.8

23

4.52

0.15

6

2200

2.7

97

FL863P97-02AW

5.8

0.97

3.2

4.52

0.15

6

FL863P127-01AW

2.25

9

41

6.78

0.26

6

3300

3.8

127

FL863P127-02AW

5.2

1.8

8

6.78

0.26

6



该款电机可以根据客户需求定制。

The motor can be designed &manufactured with customized request.

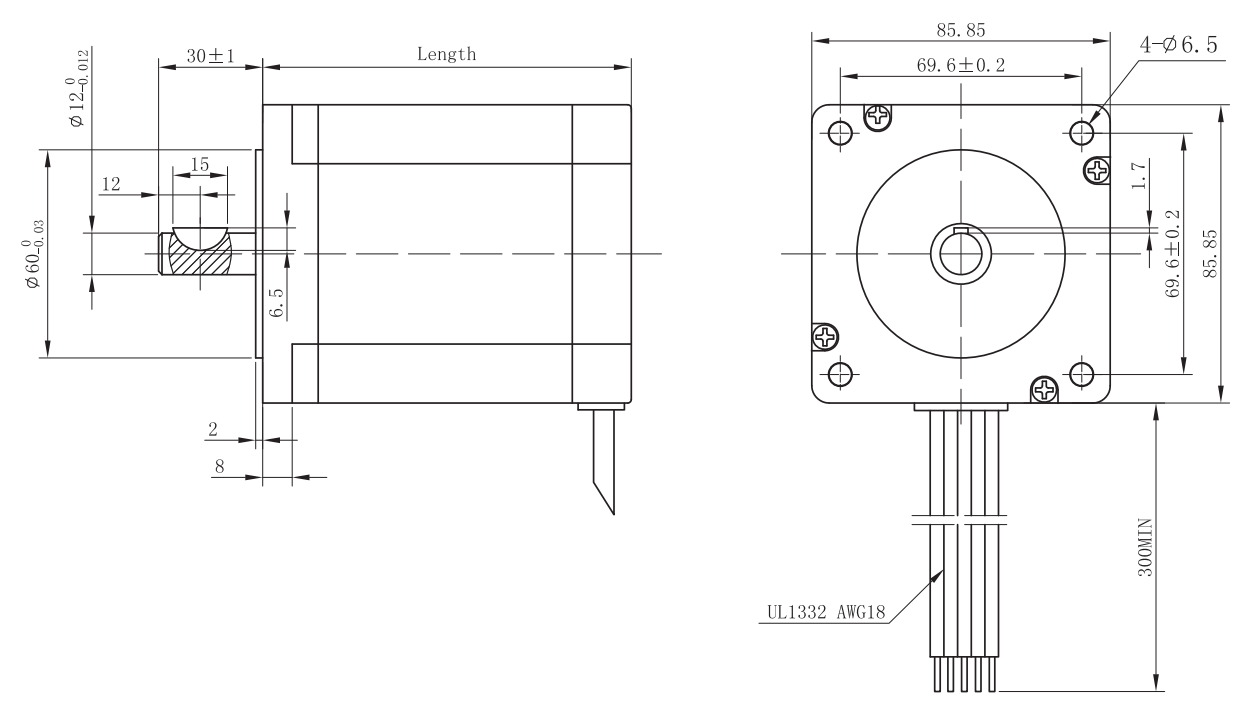

Motor size

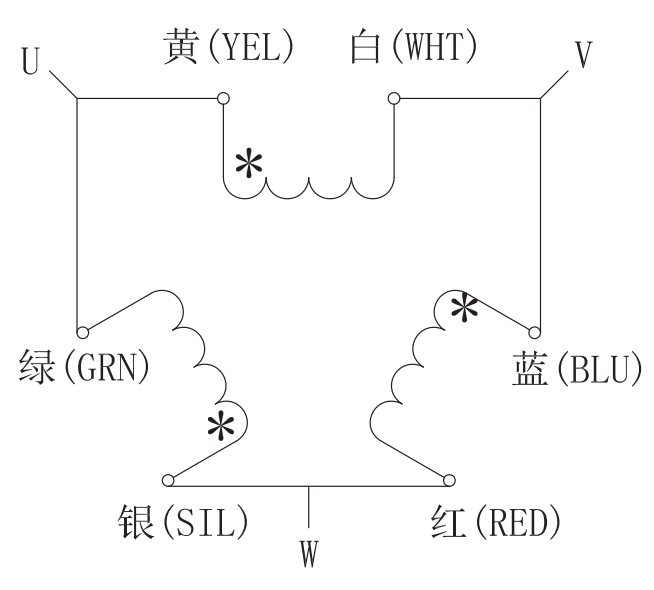

接线图(Wiring Diagram)

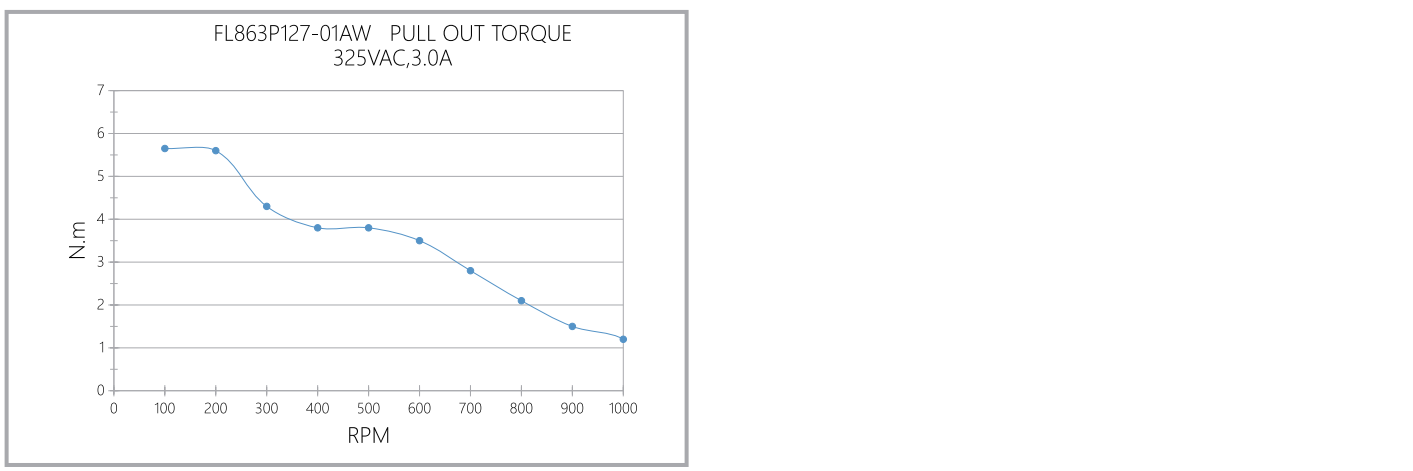

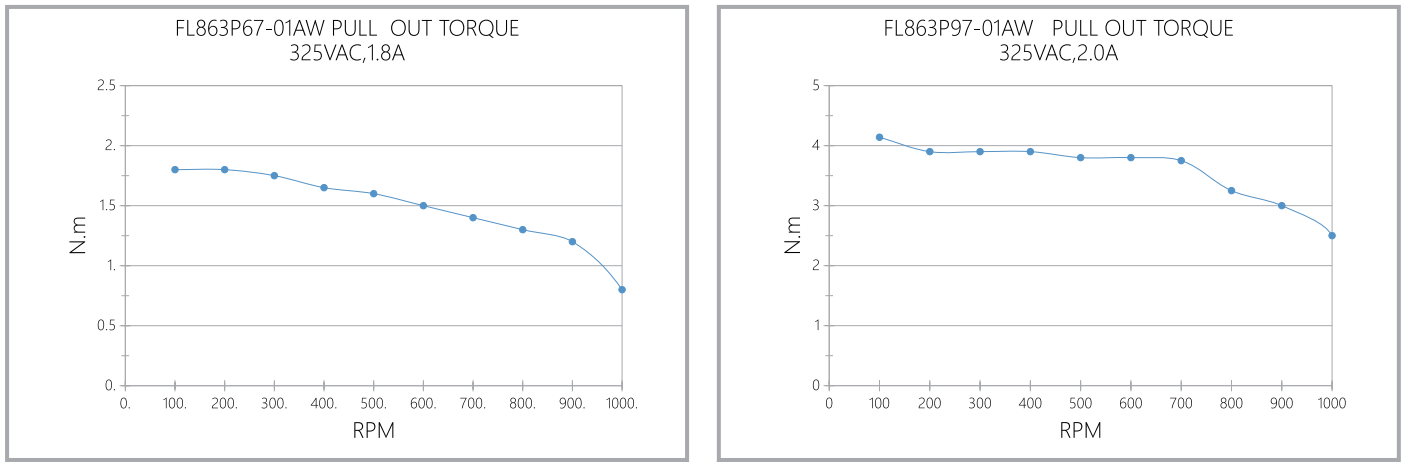

矩频曲线 (Pull out torque curve)




Download
FL863P97-01AW 176.9 KB
FL863P67-01AW 176.23 KB
FL863P97-02AW 177.12 KB
FL863P127-01AW 176.76 KB
FL863P127-02AW 176.91 KB

Copyright 2024 Copyright Fulling Motor (North America)
