FL38BLG
Product High performance BLDC motor

FL38BLG

38mm high-performance waterproof brushless motor, IP65, Class F insulation, servo structure
option:
  • FL38BLG
  • FL38BLG
  • FL38BLG
  • FL38BLG
特性概要 ( General Specifications )

绕组连接方式 ( Winding Type )

星形 ( Star connection )

径向负载 ( Max radial force )

69N @ 14mm from the flange

轴向负载 ( Max axial force )

59N

绝缘等级 (Insulation Class)

Class F

防护等级 (Protection level)

IP65

使用环境温度 (Temperature)

-20℃~ +40℃

使用环境湿度 (Relative humidity)

≤90%RH (无凝露)( No dewing)

存储环境 (Storage Condition)

-20℃~ +60℃,≤85%RH (无凝露)( No dewing)

安装环境(Installation environment)

远离腐蚀、可燃性气体,油滴,灰尘,

海拔≤1000m  Far away active gas,

Combustible gas, oil drop, ash


接线说明(Electric Connection)

Pin No

引出线型号Type

引出线颜色Color

功能Functions

5

UL1332 AWG26



绿色  ( Green )

霍尔电源正  ( Vcc )

1


黄色  ( Yellow )

霍尔 U ( Hu )

2


棕色  ( Brown )

霍尔 V ( Hv )

3


灰色  ( Gray )

霍尔 W ( Hw )

4


蓝色  ( Blue )

霍尔电源负 ( GND )

1

Cable

4*0.5(0.75)mm2+2*0.35mm2

黄色  ( Yellow )

U相 ( Phase U )

2


红色  ( Red)

V相 ( Phase V )

3


黑色  ( Black )

W相 ( Phase W )


电机技术性能 (Motor Technical Specification)

类型 (Model)单位Unit)FL38SV05FL38SV10
额定功率(Rate d power) PNW50100
额定电压(Rate d voltage) UNVAC/VDC2204822048
额定转速(Rated speed) XNrpm3000300030003000
额定转矩(Rate dtorque) TNN.m0.160.160.320.32
额定电流(Rate d current) INArms0.21.30.42.5
峰值转矩(Peak tor que) TMN.m0.480.480.960.96
峰值电流(Peak current) IMArms0.63.91.27.5
电阻(Line to line resistance) RLohm2485.81182.8
电感(Line to line inductance) ZzmH1603.8882.1
反电势系数(Back EMF constant) KeV/krpm54.58.554.58.5
转矩系数(Torque constant) K,N.m/A0.800.1230.80.128
转动惯量(Rotor inertia) Jm0kg.cm 20.0240.0240.040.04
转动惯量带制动器(Rotor inertia with brake) Jm1kg.cm0.0340.0340.050.05
极数(Number of poles)
10101010
机身长度(Motor length) L1mm7288
机身长度带制动器(Motor length with brake) L2mm106122
重量(Weight)kg0.40.5
重量带制动器(Weight with brake)kg0.650.75


该款电机可以根据客户需求定制。

The motor can be designed &manufactured with customized request.

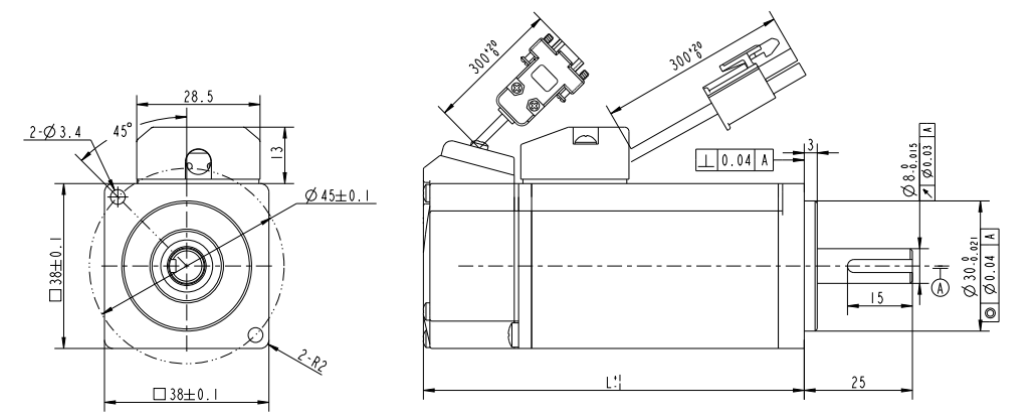

Motor size
