FL42BLS-IE
Product BLDC motor with integrated driver

FL42BLS-IE

42mm square integrated brushless motor with built-in driver, 24VDC, 4000RPM
option:
  • FL42BLS-IE
  • FL42BLS-IE
  • FL42BLS-IE
  • FL42BLS-IE


 +5VF/RSVPGGND GND +Vp
OOOOOOO
1234567





特性概要 ( General Specifications )

绕组连接方式 ( Winding Type )

三角形 ( Delta connection)

霍尔分布角度 ( Hall Effect Angle )

120度电角度 ( Electrical Angle of 120 degree)

径向间隙 ( Radial Play )

0.025mm@460g

轴向间隙 ( Axial Play )

0.08mm@4000g

最大径向负载 ( Max radial force )

10N  距法兰10mm ( 10mm From the flange)

最大轴向负载 ( Max axial force )

10N

介电强度 ( Dielectric Strength )

600VAC/1S

绝缘电阻 ( Insulation Resistance )

100MΩ, 500VDC

环境温度 ( Ambient Temperature )

-20°C ~ +50°C

绝缘等级 (Insulation Class)

Class B



接线说明(Electric Connection)

Pin No


功能Functions

1

+5V

电压输出(VOLTAGE OUTPUT)

2

F/R

转向控制(ROTATING DIRECTION)

3

SV

调速电压0—5VDC (SPEED VOLTAGE 0—5VDC)

4

PG

速度脉冲输出(TTL) (SPEED PULSE OUTPUT(TTL)

5

GND

接地(GND)

6

GND

接地(GND)

7

+Vp

+24VDC(DC POWER INPUT +24VDC)



电性能 (Electrical Specifications)


单 位 (Unit)

FL42BLS01-IE

FL42BLS02-IE

FL42BLS03-IE

FL42BLS04-IE

极数  ( Number of poles )


8

相数  ( Number of phases )


3

额定电压 ( Rated  voltage )

VDC

24

额定转矩 ( Rated torque)

N.m

0.0625

0.125

0.185

0.25

连续运行转矩 ( Continuous stall torque)

N.m

0.075

0.15

0.22

0.3

额定速度 ( Rated speed )

RPM

4000

4000

4000

4000

额定功率 ( Rated power )

W

26

52

78

104

峰值转矩 ( Peak torque )

N.m

0.11

0.18

0.28

0.28

峰值电流 ( Peak current )

A

3.5

5.0

7.5

7.5

线电阻 ( Line to line resistance )

ohms@20℃

1.5

0.8

0.43

0.3

线电感 ( Line to line inductance )

mH

2.1

1.2

0.71

0.5

转矩常数 ( Torque constant )

N.m/A

0.033

0.036

0.037

0.035

反电势 ( Back EMF )

Vrms/KRPM

2.45

2.71

2.74

2.62

转动惯量 ( Rotor inertia )

g.cm2

24

48

72

96

机身长度 ( Motor length ) L

mm

77

97

137

157

重量 ( Weight )

Kg

0.45

0.6

    0.8

0.95


该款电机可以根据客户需求定制。

The motor can be designed &manufactured with customized request.

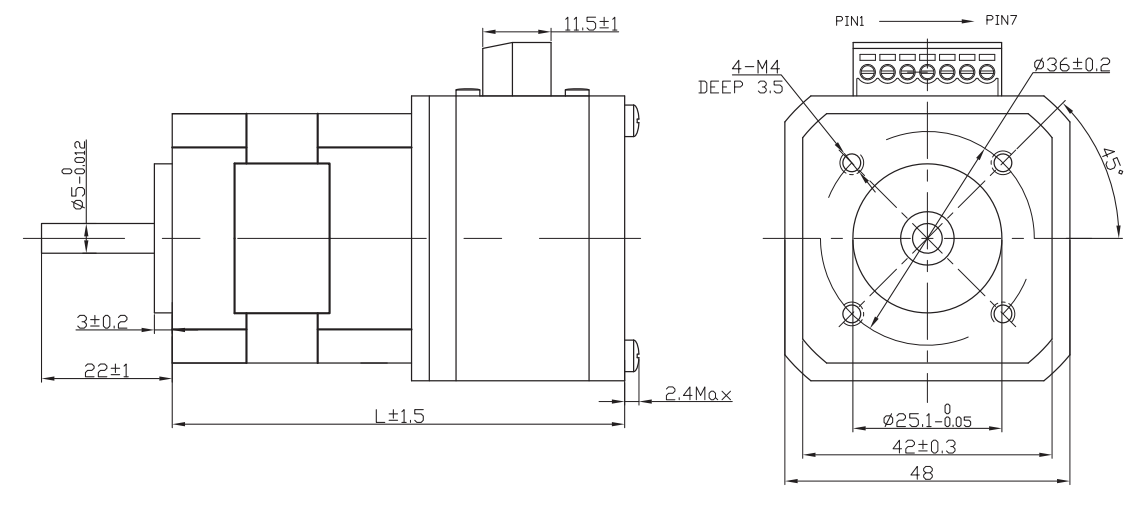

Motor size



Download
FL42BLS01-IE 324.12 KB
FL42BLS02-IE 324.99 KB
FL42BLS03-IE 324.73 KB
FL42BLS04-IE 325.34 KB
