86STH-C
Product 2 phase stepper motor

86STH-C

Fuxing stepper motors provide high-performance two-phase and three-phase hybrid stepper motors with various sizes and output torques, single polarity or bipolar control, and single or dual axis. The products are divided into standard type, torque enhanced type, high protection type, etc., which can fully meet the various application needs of different users.
option:
  • 86STH-C
  • 86STH-C
  • 86STH-C
  • 86STH-C

1、特性概要(General specification)

项目(Item

说明(Specifications

步距角(Step Angle

1.8°

步距角精度(Step Angle Accuracy

±5% (整步无负载,full   step, no load)

径向间隙( Radial Play

0.02mm@450 g

轴向间隙( Axial Play

0.08mm@450 g

最大径向负载(Max. radial force

130N  距法兰20mm  (20mm from the flange)

最大轴向负载(Max. axial force

36N

介电强度(Dielectric Strength

1200VAC / 1s

绝缘电阻(Insulation Resistance

100MΩ ,500VDC

环境温度(Ambient Temperature

-20C~+50C

绝缘等级(Insulation Class

Class B


2、电性能(Electrical specifications)

型号(Model No.

Current

/Phase

每相

电流

Resistance

/Phase

每相

电阻

Inductance

/Phase

每相

电感

Holding

Torque

保持

转矩

Detent

Torque

定位

转矩

# of Leads

引出线数

Rotor

Inertia

转动惯量

Weight

重量

Length

机身

长度

Single shaft

(单出轴)

A

Ω

mH

N.m

N.m

#

g-cm2

kg

mm

FL86STH65-6004AC

6

0.29

1.77

3.5

0.08

4

1000

1.7

63

FL86STH80-6004AC

6

0.39

3

4.5

0.12

4

1400

2.3

75

FL86STH118-6004AC

6

0.55

6

8.5

0.24

4

2700

3.8

112

FL86STH156-6004AC

6

0.73

8.68

12

0.36

4

4000

5.3

150


Motor size

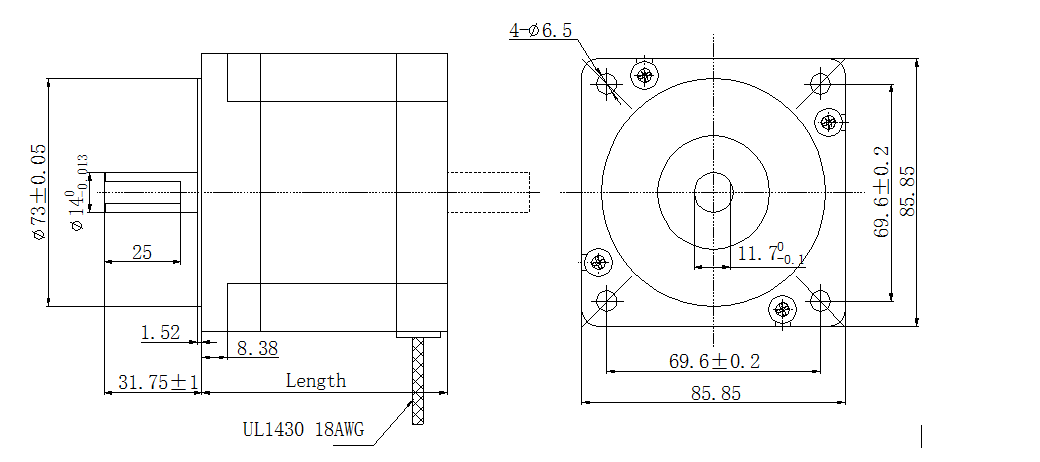

1、机械尺寸(Dimension)

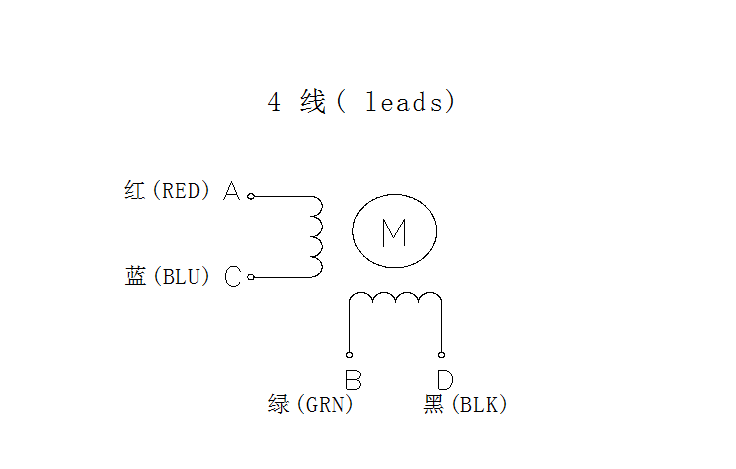

2、接线图(Wiring Diagram)

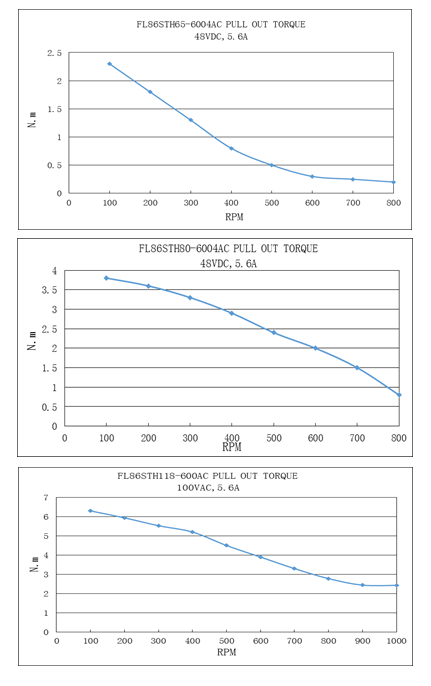

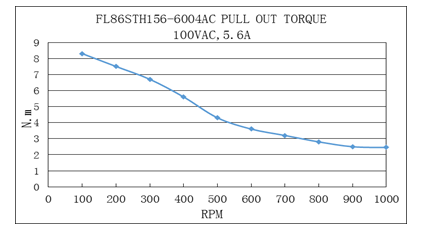

3、矩频曲线(Pull out torque curve)



根据要求,该款电机可以设计和制造成定制的类型。

The motor can be designed &manufactured with customized request.


Download
FL86STH118-6004AC 169.37 KB
FL86STH65-6004AC 166.96 KB
FL86STH80-6004AC 167.19 KB
FL86STH156-6004AC 167.37 KB
