FL60STH-C
Product Stepper motor with integrated connector

FL60STH-C

1.8 ° 60mm, Nema 24, STC structure with built-in plug-in stepper motor
option:
  • FL60STH-C
  • FL60STH-C
  • FL60STH-C
  • FL60STH-C

特性概要(General specification)

项目(Item)

说明(Specifications)

步距角(Step Angle)

1.8°

步距角精度(Step Angle Accuracy)

±5% (整步无负载,full step, no load)

径向间隙( Radial Play)

0.02mm@450 g

轴向间隙( Axial Play)

0.08mm@450 g

最大径向负载(Max. radial force)

75N  距法兰20mm  (20mm from the flange)

最大轴向负载(Max. axial force)

15N

介电强度(Dielectric Strength)

600VAC / 1s

绝缘电阻(Insulation Resistance)

100MΩ ,500VDC

环境温度(Ambient Temperature)

-20℃~+50℃

绝缘等级(Insulation Class)

Class B


电性能(Electrical specifications)

型号(Model No.)

Current

/Phase

每相

电流

Resistance

/Phase

每相

电阻

Inductance

/Phase

每相

电感

Holding

Torque

保持

转矩

Detent

Torque

定位

转矩

# of Leads

引出线数

Rotor

Inertia

转动惯量

Weight

重量

Length

机身

长度

单轴(Single shaft)

A

Ω

mH

N.m

N.m

#

g-cm2

kg

mm

FL60STH45-2804AFC

2.8

0.75

2

1.1

0.05

4

275

0.6

47±1

FL60STH56-2804AFC

2.8

0.9

3.6

1.65

0.07

4

400

0.77

56±1

FL60STH65-2804AFC

2.8

1.2

4.6

2.1

0.09

4

570

1.2

67±1

FL60STH86-2804AFC

2.8

1.5

6.8

3.0

0.12

4

840

1.4

88±1



该款电机可以根据客户需求定制。

The motor can be designed &manufactured with customized request.

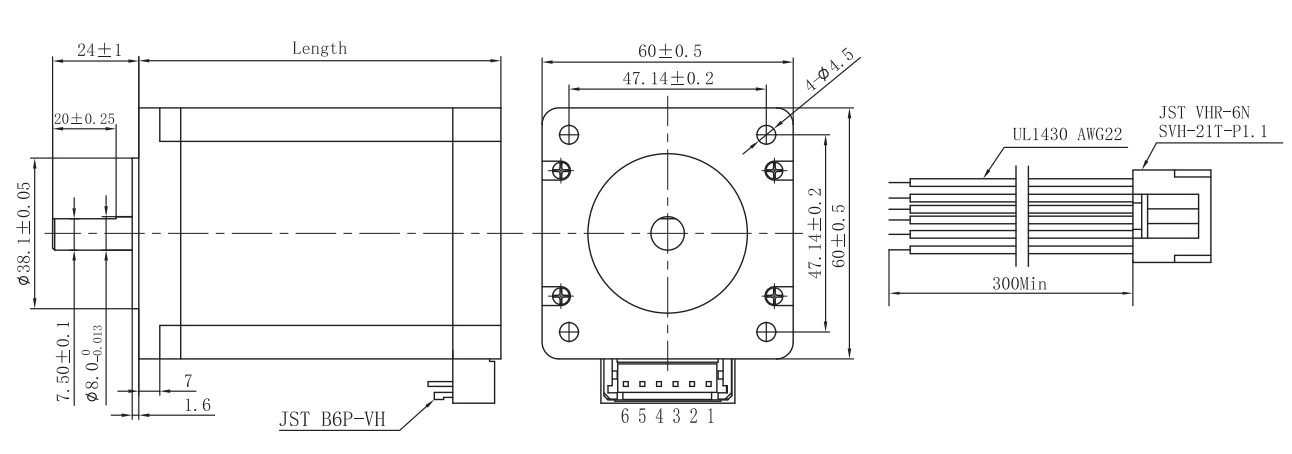

Motor size

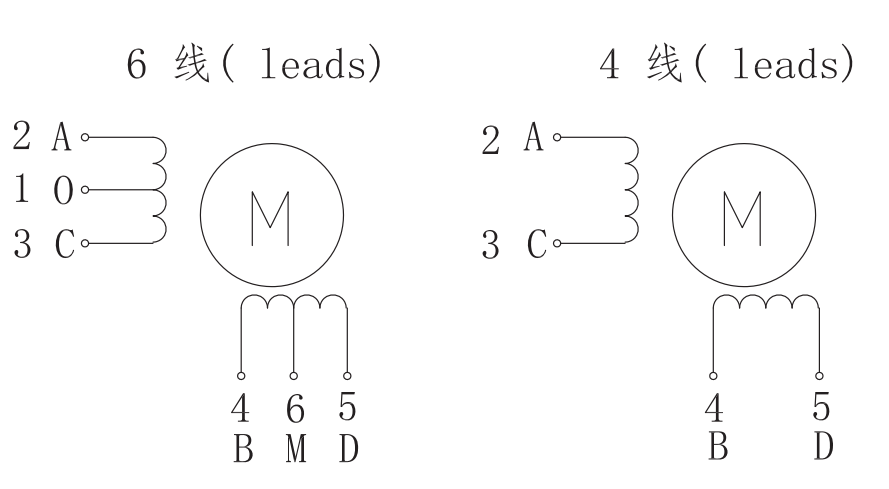

接线图(Wiring Diagram)

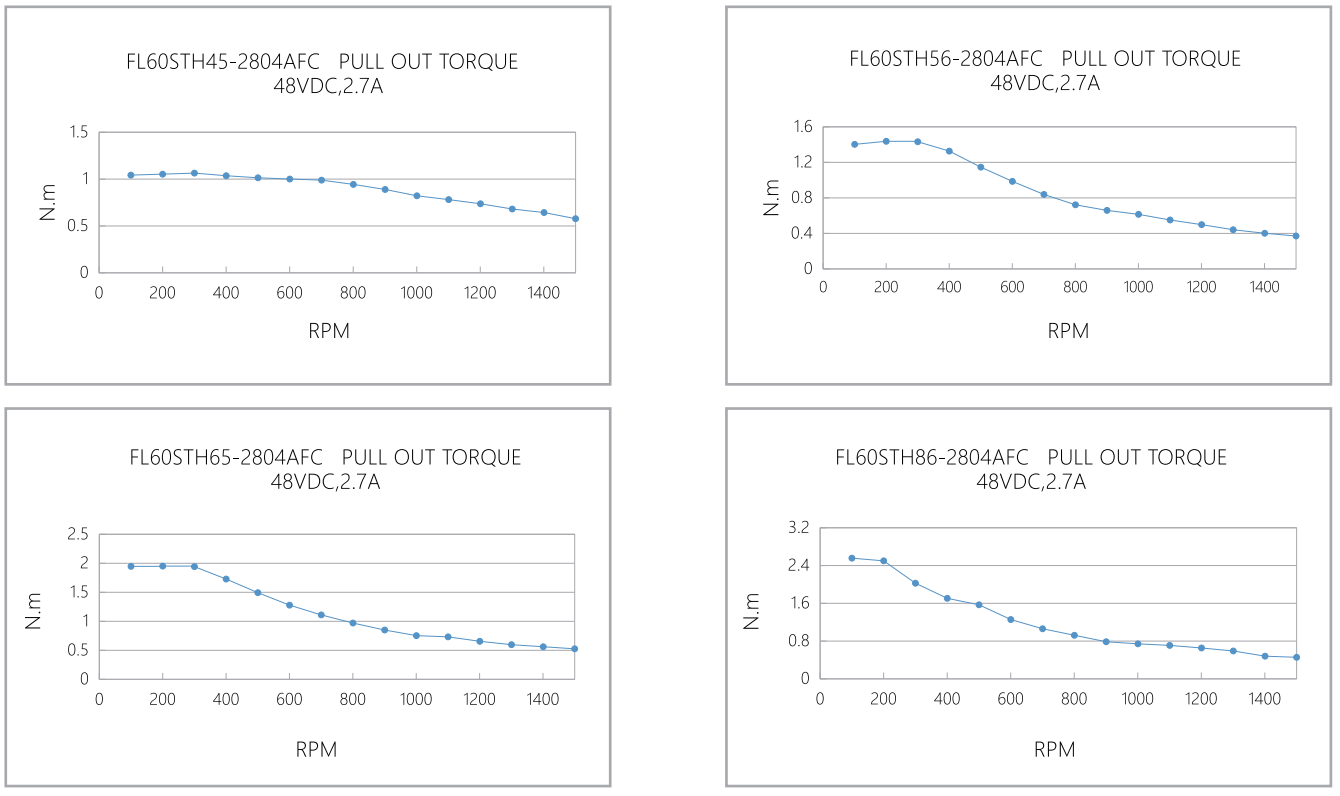

矩频曲线 (Pull out torque curve)




Download
FL60STH56-2804AFC 184.27 KB
FL60STH45-2804AFC 184.04 KB
FL60STH65-2804AFC 184.3 KB
FL60STH86-2804AFC 183.93 KB
