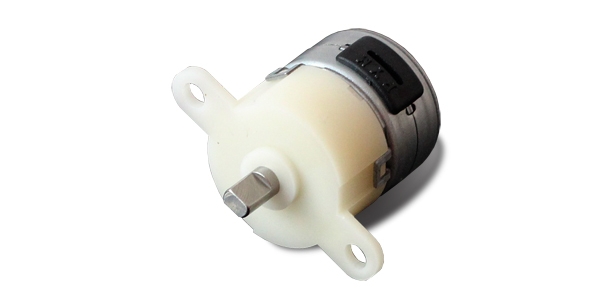

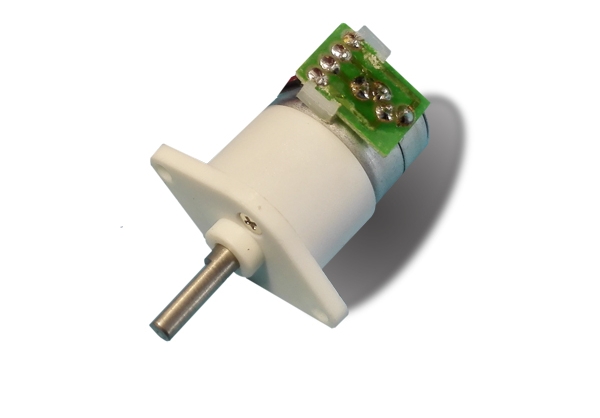

15mm PM Stepper motor with gearbox
option:
  • PMG15
  • PMG15
  • PMG15
  • PMG15

特性概要General Specification

Item

Specifications

步距角精度Step Angle Accuracy

±7% (整步,空载full step, no load)

电阻公差Resistance Accuracy

±10%

电感公差Inductance Accuracy

±20%

温升Temperature Rise

65K  Max. ambient temperature 40。C

65K 环境温度40℃

环境温度Ambient Temperature

-10。C~+50。C

绝缘电阻Insulation Resistance

100MΩMin. ,500VDC

绝缘等级Insulation Class

Class E

介电强度Dielectric Strength

650VAC for one second, leakage current 1mA

650VAC 一秒, 漏电电流1mA


电性能SPECIFICATIONS

型号

Model

步距角

Step Angle

(Deg.)

相数

No. of

Phase

电压

Voltage

(V)

相电流

Current

/Phase

(A)

相电阻

Resistance

/Phase

(ohms)

相电感

Inductance

/Phase

(mH)

牵入力矩Pull-in Torque (g.cm)

5VDC

最大牵入频率

Max. Pull-In Rate (pps)

No Load,

5VDC

保持力矩

Holding

Torque

(g.cm)

减速比

Ratio

重量

Weight



(g)



PMG1550-01

18/50

2

5

0.5

10

2.3

360 @200pps

1280

1350

1:50

12.2

PMG1550-03

18/50

2

5

0.5

10

2.8

140

@200pps

1150

2000

1:50

13

PMG15102-01

18/102.5

2

5

0.5

10

2.3

350

@200pps

1000

2000

1:102.5

12.2


该款电机可以根据客户需求定制。

The motor can be designed &manufactured with customized request.

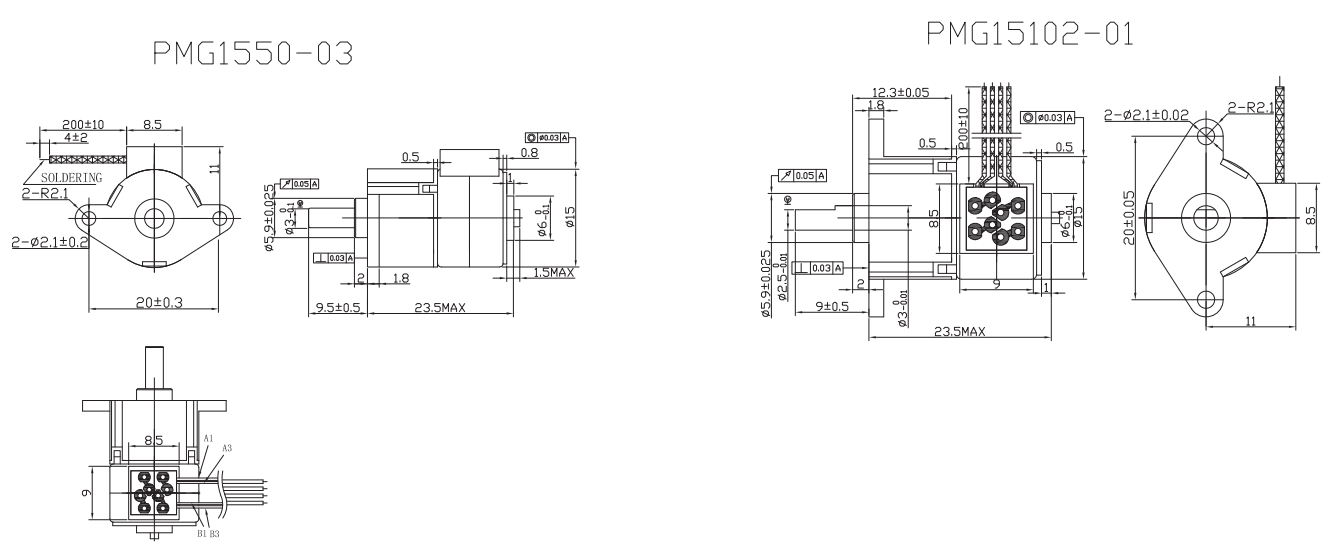

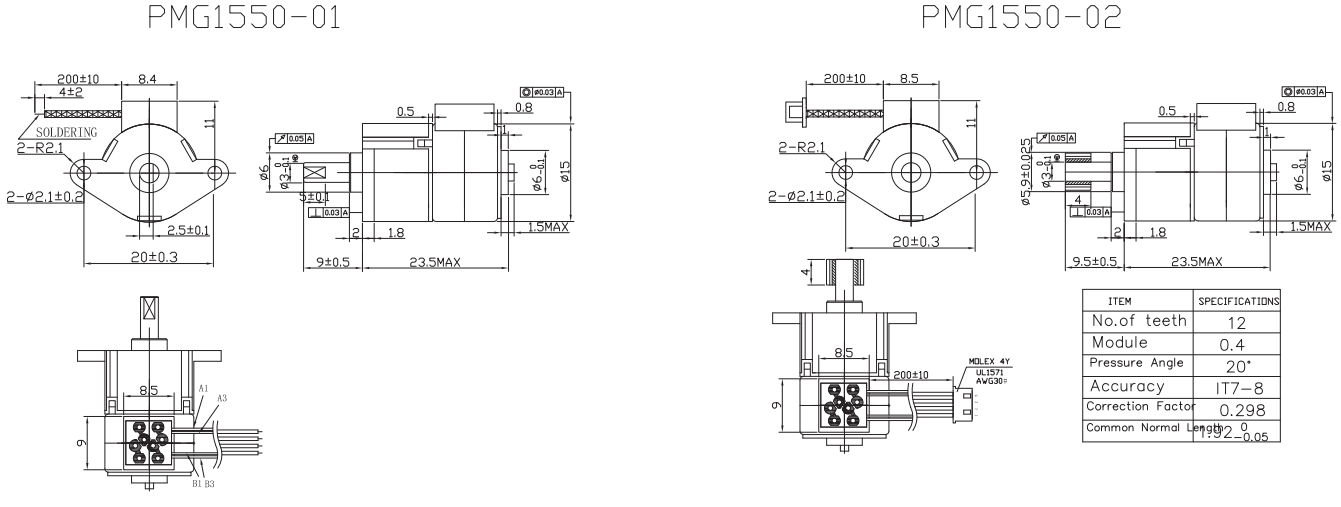

Motor size

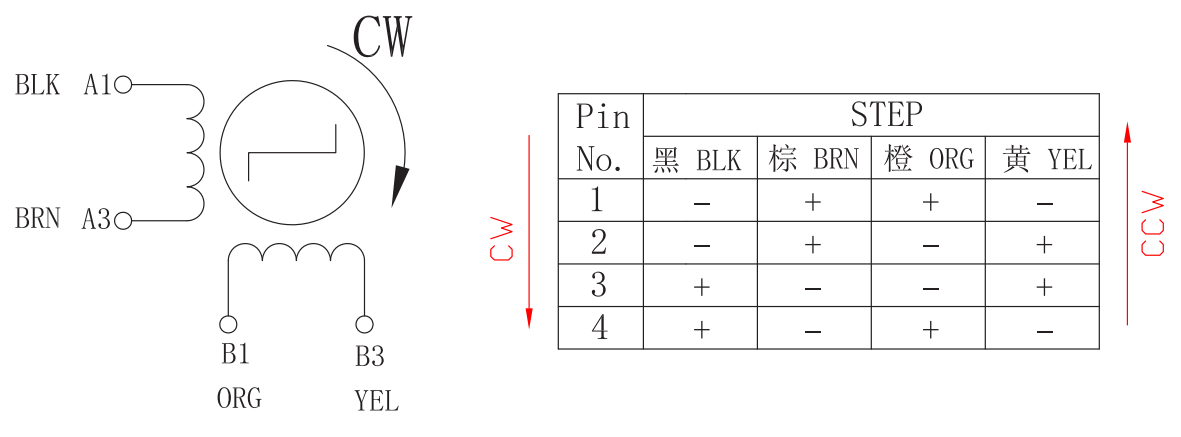

接线图WIRING DIAGRAM
