FL28BL-28JN30K
Product Planetary gearbox

FL28BL-28JN30K

28mm standard brushless motor with 28mm planetary gearbox
option:
  • FL28BL-28JN30K
  • FL28BL-28JN30K
  • FL28BL-28JN30K
  • FL28BL-28JN30K

无刷直流行星齿轮减速电机(内齿圈材质:金属)

BLDC Planetary Gear Moto (Ring Gear Material: Metal)

型号范围

FL28BL/28JN30K

Φ28行星减速器,允许转矩范围:0.3N.m~3.0N.m

28mm OD Planetary Gearbox, Permissible Load Range: 0.3N.m~3.0N.m


接线方式   Wire Diagram

UVWVccHaHbHcGND
绿Green红Red黑Black黄Yellow蓝Blue橙Orange棕Brown白 White
UL1007   26AWG


无刷电动机主要技术参数  Brushless Motor Technical Data

电机型号极 数相 数额定电压空载转速额定转速额定转矩额定功率峰值转矩峰值电流电阻电感
TYPENumber of polesNumber of phaseRated voltageNo-load speedRated speedRated torqueRated powerReak torquePeak currentLine to line resistanceLine to line inductance



VDCr/minr/minmN.mWmN.mAohmsmH
FL28BL38-2460432460004350104.5301197.8
FL28BL77-2460432460004000502015034.22.2


无刷行星齿轮减速电机主要技术参数  Brushless Gear Motor Technical Data

配置FL28BL38-2460无刷直流电机(LD=38mm)    FL28BL38-2460 DC Brushless Motor(LD=38mm)

减 速 比   Reduction ratio3.75.2141927355171100139189264369516720
减速级数 Number of gear trains112222333344444
减速器长度(L)  Length(L)mm292936.136.136.136.14343434349.949.949.949.949.9
额定转速   Rated speedr/min1173840311229161124856144312317128.46
额定转矩   Rated torqueN.m0.0330.0470.110.150.220.280.370.520.7311.21.72.433
最大瞬间允许负载Max. permissible load in a short timeN.m113.53.53.53.57.57.57.57.599999


配置FL28BL77-2460无刷直流电机 (LD=77mm)    FL28BL77-2460 DC Brushless Motor(LD=77mm)

减 速 比   Reduction ratio3.75.2141927355171100139
减速级数 Number of gear trains1122223333
减速器长度(L)  Length(L)mm292936.136.136.136.143434343
空载转速   No-load speedr/min16171158429316222171118856043
额定转速   Rated speedr/min10807692852101481147856402.9
额定转矩   Rated torqueN.m0.170.230.570.771.11.41.92.633
最大瞬间允许负载Max. permissible load in a short timeN.m113.53.53.53.57.57.57.57.5

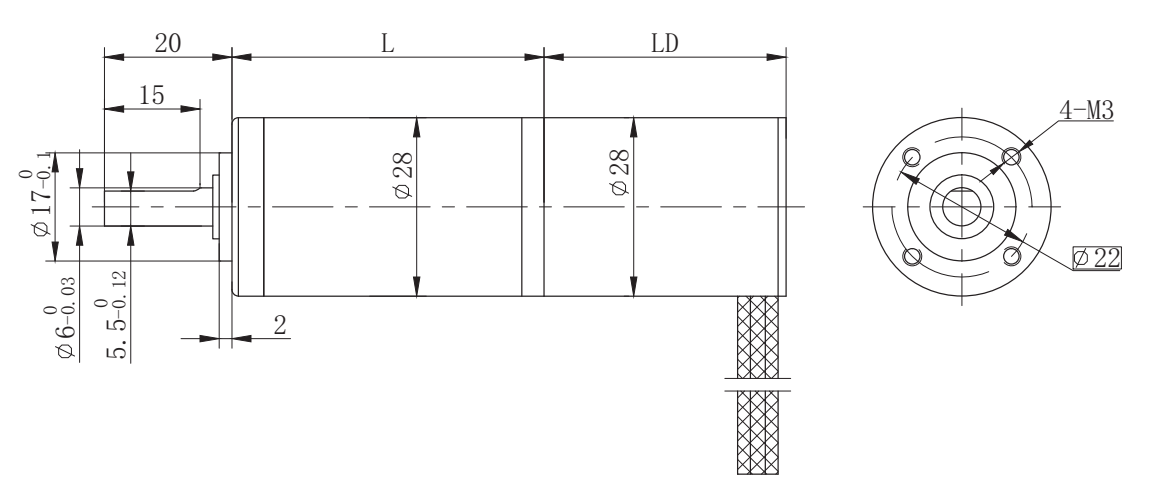

Motor size
