PMG42
PMG42
Product PM stepper motor

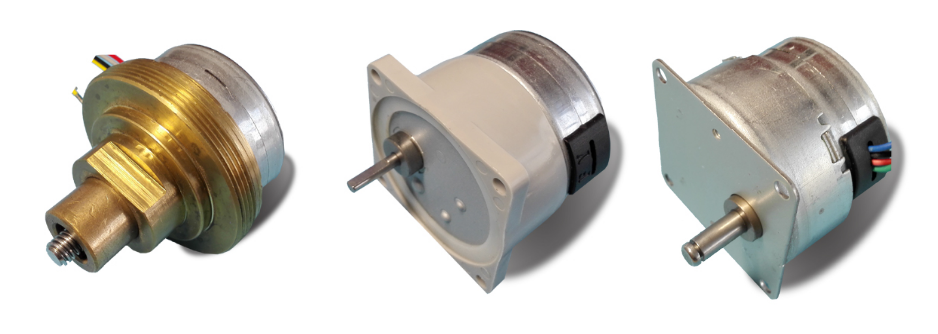

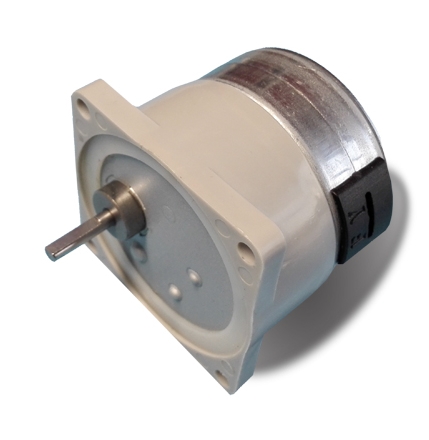

PMG42

42mm PM Stepper motor with gearbox
option:
  • PMG42
  • PMG42
  • PMG42
  • PMG42


电性能参数Specifications

型号

Model

步距角

Step Angle (Deg.)

相数

No. of Phase

电压

Voltage(V)

电流

Current

(A)

电阻

Resistance(Ω)

电感

Inductance(mH)

减速比

Ratio

空载启动频率

No-load Starting Frequency

(pps)

牵出力矩

Pull-out Torque (g.cm)

引出线数

Leads

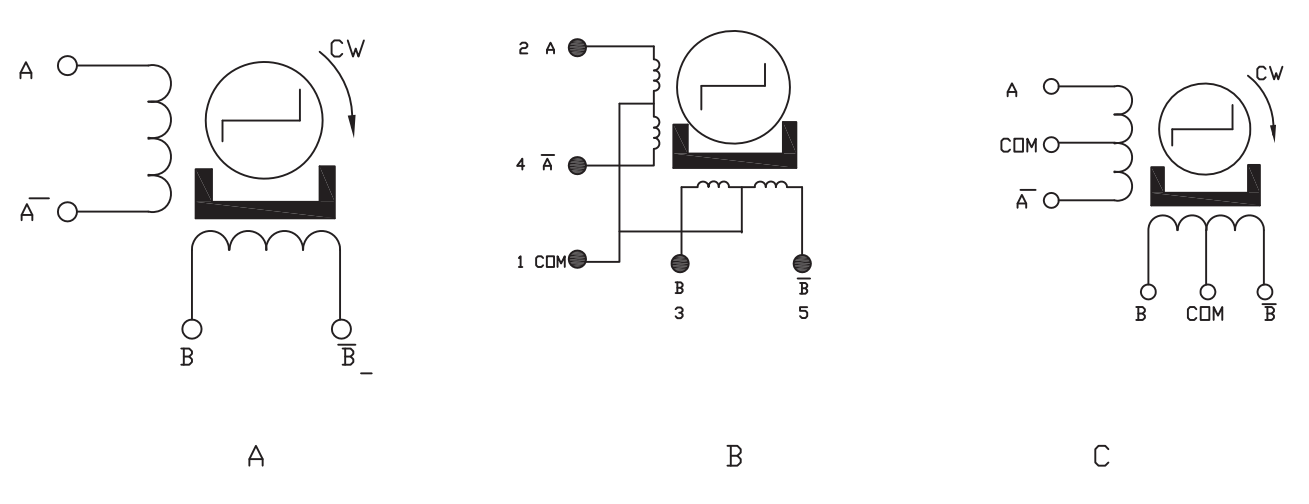

接线图

Wdg

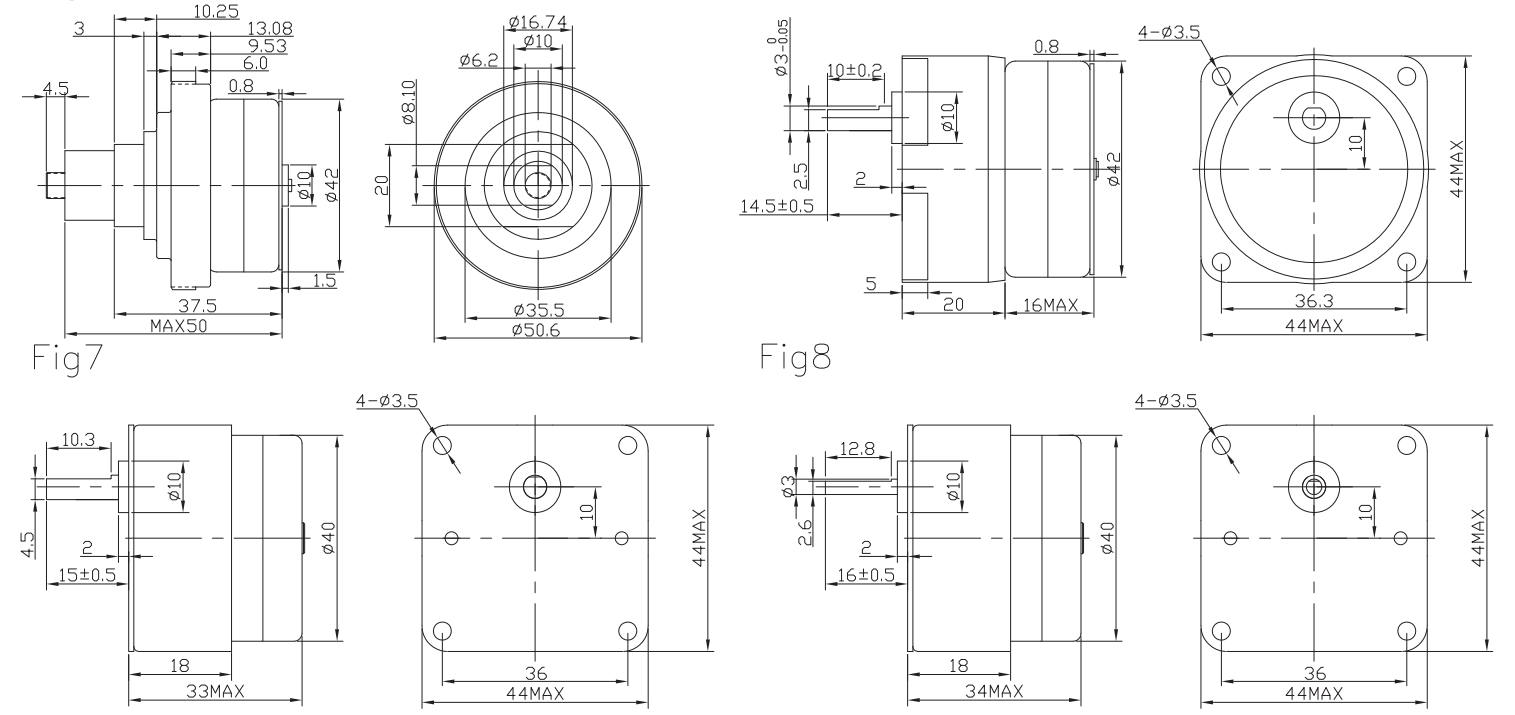

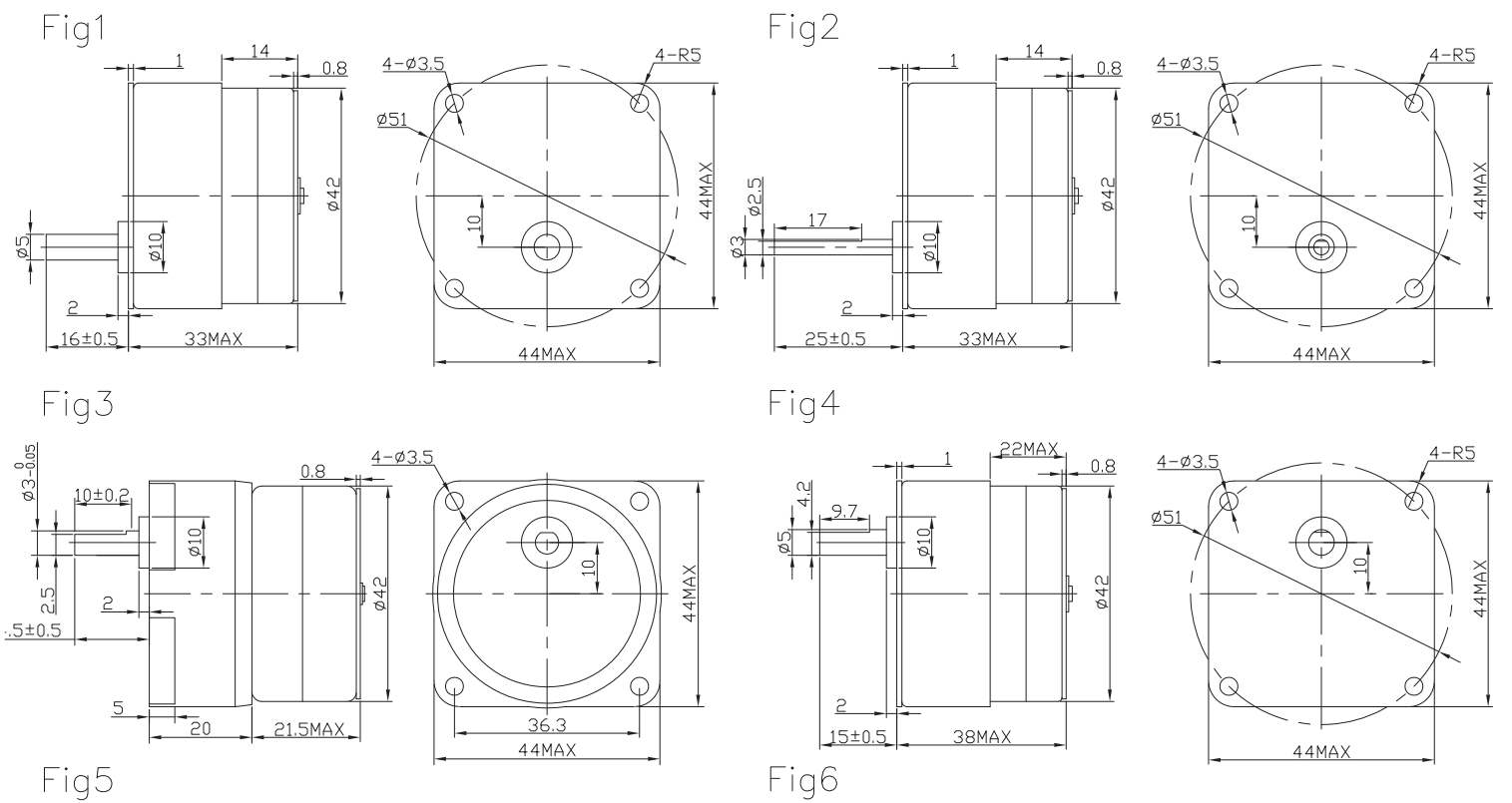

外形图

Fig

42BYHJ01

7.5

4

12

0.44

27

15.1

1/24

380

1600

UL 1007 26#

b

1

42BYHJ3-01

7.5

2

12

0.22

54

58

1/3

270

800

UL 1007 26#

a

2

42BYHJ05-01

7.5

4

12

0.5)

10.7

5.2

1/5

450

1300

UL 1007 26#

c

3

42BYHJ7-01

7.5

2

12

0.22

54

57.6

1/7

300

1000

UL 1007 26#

a

2

42BYHJ10-06

7.5

2

24

0.133

180

260

1/10

260

1600

UL 1007 26#

a

4

42BYHJ12.25-01

3.6

2

12

0.16

75

75

1/12.25

350

90N(push)

AF 200 24#

a

5

42BYHJ15-01

7.5

4

12

0.18

66

31.6

1/15

270

1500

UL 1061 28#

c

6

42BYHJ20-01

15

4

12

0.18

66

41.6

1/20

240

1200

UL 1095 28#

c

7

42BYHJ25-02

7.5

4

12

0.44

27

63

1/24

380

1660

UL 1007 26#

b

1

42BYHJ50-08

15

4

24

0.08

300

175

1/50

210

2100

UL 1007 24#

c

8



该款电机可以根据客户需求定制。

The motor can be designed &manufactured with customized request.
