FL80SVA
Product Closed-loop brushless motor

FL80SVA

80mm closed-loop DC brushless motor, 48VDC, 3000RPM
option:
  • FL80SVA
  • FL80SVA
  • FL80SVA
  • FL80SVA

一般技术特性 (General Technical Information)

参数特性

编码器类型(Encoder type)

1、光电编码器 Optical encoder

2、磁编码器 Magnetic encoder

3、旋转变压器Resolver

备注:多种分辨率可选,增量式、绝对值式可选。

Note: Multiple resolutions are available;Incremental and absolute values are available.

径向负载(Max radial force )

115N @ 20mm  from the flange







环境条件Environmental conditions

使用环境温度: -20℃~ +40℃;

Temperature: -20℃~ +40℃

使用环境湿度:≤90%RH(无凝露);

Relative humidity: ≤90%RH(No dewing)

安装环境:远离腐蚀、可燃性气体,油滴,灰尘,

海拔≤1000m(1000~4000m,降额使用);

Installation environment: Far away active gas,

Combustible gas, oil drop, ash.

altitude≤1000m(1000~4000m,Derating use);

存储环境:-20℃~ +60℃,≤85%RH(无凝露)。

Storage Condition: -20℃~ +60℃,≤85%RH(No dewing).

轴向负载(Max axial force )

45N

绝缘等级(Insulation Class)

Class B

防护等级(Protection level)

IP65



电机技术性能 (Motor Technical Specification)


单位(Unit)

FL80SVA01

FL80SVA02

额定电压(Rated voltage)

VDC

48

48

额定转速(Rated speed)

RPM

3000

3000

额定转矩(Rated torque)

N·m

0.9

1.7

额定电流(Rated current)

A

3000

3000

空载转速(no load speed)

RPM

4000

4000

峰值转矩(Peak torque)

N·m

2.7

5.1

峰值电流(Peak current)

A

23

45

电阻(Line to line resistance)

Ω

0.25

0.1

电感(Line to line inductance)

mH

1.3

0.6

反电势系数(Back EMF)

V/Krpm

8.7

8.4

转矩系数(Torque constant)

Nm/A

0.118

0.113

极数(Number of poles)


8

8

编码器(Encoder)

CPR

1000

1000

转动惯量(Rotor inertia)

g.cm2

544

1020

机身长度(Motor length) L

mm

86

107

重量(Weight)

Kg

1.7

2.1



接线说明 (Electric Connection)

序号

No.

引出线颜色

Lead Color

引出线型号

Lead Gauge

功能

Function

说明

Description

1

红白色(Red/White)







Cable

AWG26

GND

Signal Power negative

2

红色( Red)

VCC:+5VDC

Signal Power positive

3

蓝色(Blue)

EA-

Two-channel differential signal (Three-channel differential signal can be provided).

4

蓝黑色(Blue/Black)

EA+

5

黑色(Black)

EB-

6

黑白色(Black/White)

EB+

7

棕色(Brown)

霍尔HALL A


8

橙色(Orange)

霍尔HALL B


9

黄色(Yellow)

霍尔HALL C


1

黄色(Yellow)

Cable

AWG16

U相(Phase U)


2

红色(Red)

V相(Phase V)


3

黑色(Black)

W相(Phase W)





该款电机可以根据客户需求定制。

The motor can be designed &manufactured with customized request.


Motor size

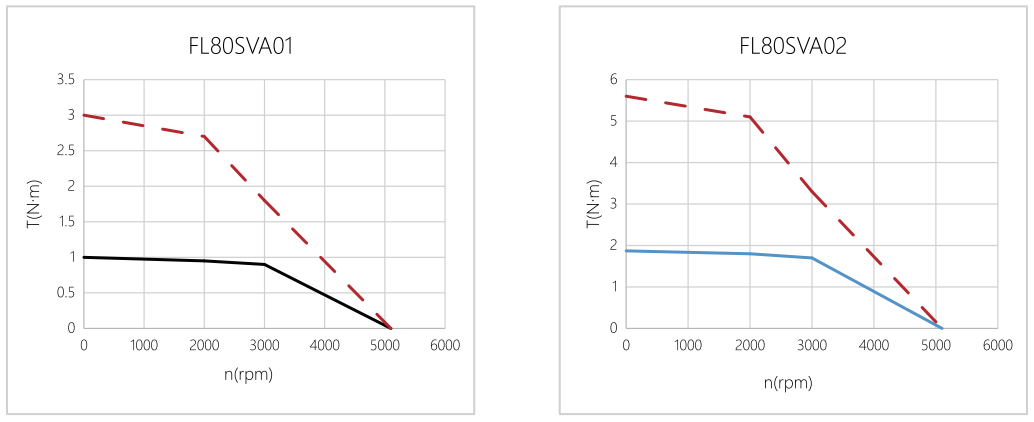

性能曲线 (Performance Curve)




Download
FL80SVA01 50.86 KB
FL80SVA02 50.77 KB
