FE14-50
Product FE series Encoder

FE14-50

FE14-50 Series Encoder:
Two channels, optical type. Its typical application is printing machine, servo motor, working plant automation. Not recommed use on application referring to human safety, such as application with brake system.
option:
  • FE14-50
  • FE14-50
  • FE14-50
  • FE14-50

Parameter Overview:

Suitable Motor

Motor size

Suitable for   60,70,80,86 and above (Brushless/Servo Motor)

Motor Shaft   diameter

Suitable for shaft   diameter 4mm,5mm,6mm,6.35mm,8mm

Storage Temperature

-4085

Environmental   conditions

Application

No corrosive, flammable, explosive, conductive   gas, liquid and dust.

Temperature

-2580

Humidity

No more than 85% RH

Electrical Parameter

Supply Voltage

5V±0.5V

  Current Consumption

120mA

Differential Single Output

5V,GND, HU+/HU-,HV+/HV-,HW+/HW-A+/A-,B+/B-,Z+/Z-,

 Output Level mode

TTL Compatible

Index Width

1/4T / 1T(According to the CPR)

Differential   Output Voltage

High Level   Output (VoH) ≥3.4V

Low Level Output   (VoL) ≤0.4V

Differential   Signal Output Format

Line Drive 26C31


Optional   ResolutionUnit:CPR

Decimal100,200,360,400,500,1000,2000,2500

Binary256,512,1024,2048

Pole-pairs

2/4/5 (According)

HU/HV/HW

120°

Duty cycle

50% ±10%

Phase difference

 90°±10°

Frequency Response

500KHz

Note: The signal frequency = (Speed(Rpm) *  number of Lines)/60

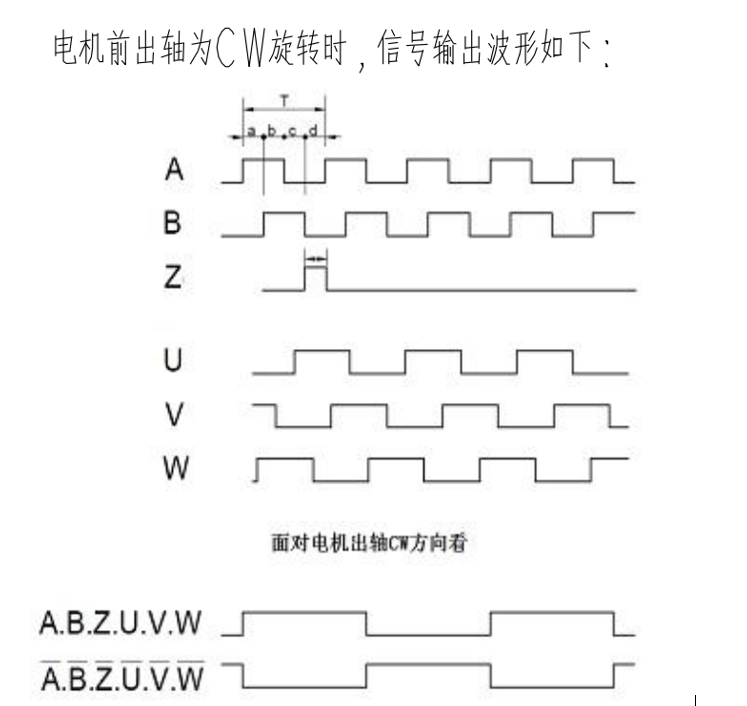

Waveform:


Attention: Default six - channel fully differential signal output waveform.The figure only shows the encoder outputs positive signal waveform.

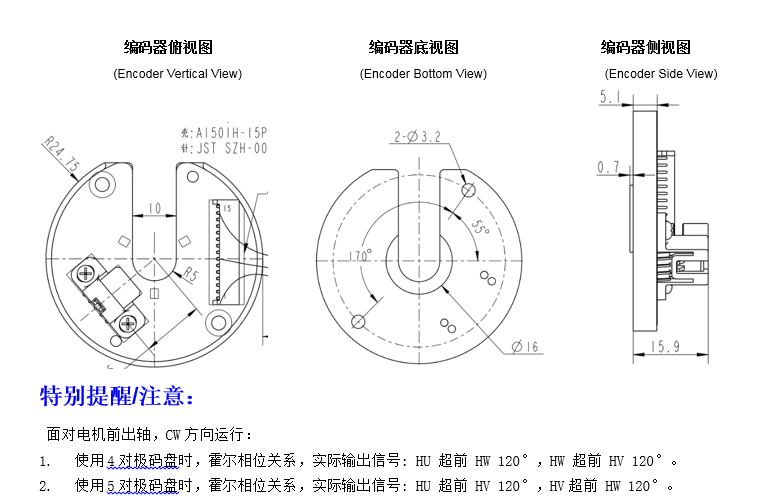

Motor size


Download
FE14-50系列 六通道透反一体式光电编码器 232.35 KB
