FL28STC
Product Stepper motor with integrated connector

FL28STC

1.8 ° 28mm, Nema 11, STC structure with built-in plug-in stepper motor
option:
  • FL28STC
  • FL28STC
  • FL28STC
  • FL28STC

特性概要(General specification)

项目(Item)

说明(Specifications)

步距角(Step Angle)

1.8°

步距角精度(Step Angle Accuracy)

±5% (整步无负载,full step, no load)

径向间隙( Radial Play)

0.02mm@400 g

轴向间隙( Axial Play)

0.08mm@400 g

最大径向负载(Max. radial force)

28N  距法兰5mm  (5mm from the flange)

最大轴向负载(Max. axial force)

7N

介电强度(Dielectric Strength)

600VAC / 1S

绝缘电阻(Insulation Resistance)

100MΩ ,500VDC

环境温度(Ambient Temperature)

-20。C~+50。C

绝缘等级(Insulation Class)

Class B



电性能(Electrical specifications)

型号(Model No.)

Current

/Phase

每相

电流

Resistance

/Phase

每相

电阻

Inductance

/Phase

每相

电感

Holding

Torque

保持

转矩

Detent

Torque

定位

转矩

# of Leads

引出线数

Rotor

Inertia

转动惯量

Weight

重量

Length

机身

长度

Single shaft(单出轴)

A

Ω

mH

N.m

N.m

#

g-cm2

kg

mm

FL28STC32-0674A

0.67

5.6

4.0

0.065

0.005

4

9

0.11

32±1

FL28STC32-0956A

0.95

2.8

1.0

0.050

0.005

6

9

0.11

32±1

FL28STC40-0674A

0.67

6.8

4.8

0.097

0.006

4

12

0.14

40±1

FL28STC40-0956A

0.95

3.4

1.2

0.075

0.006

6

12

0.14

40±1

FL28STC51-0674A

0.67

9.2

5.6

0.120

0.008

4

18

0.20

51.5±1

FL28STC51-0956A

0.95

4.6

1.45

0.090

0.008

6

18

0.20

51.5±1



该款电机可以根据客户需求定制。

The motor can be designed &manufactured with customized request.

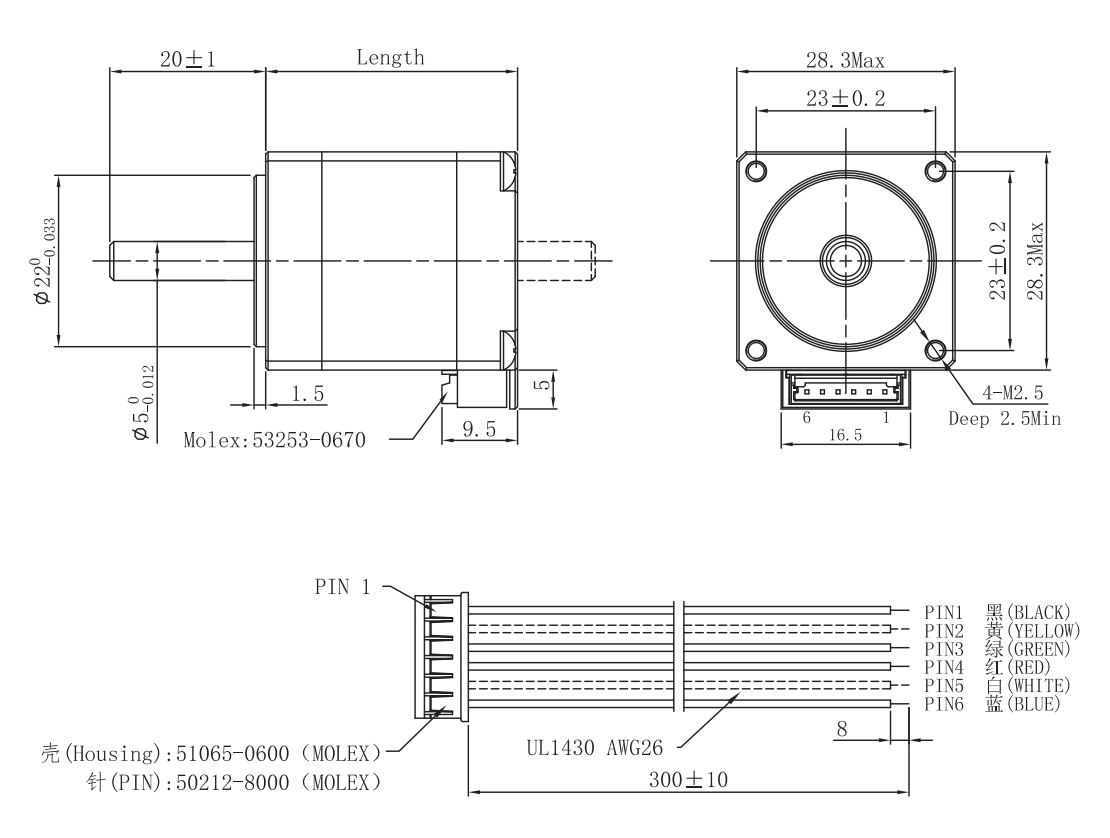

Motor size

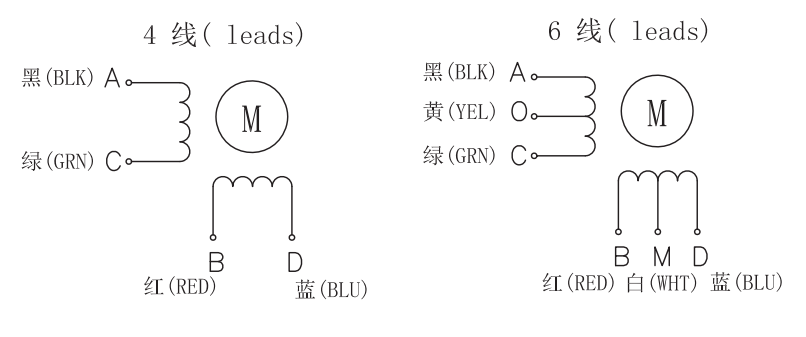

接线图(Wiring Diagram)

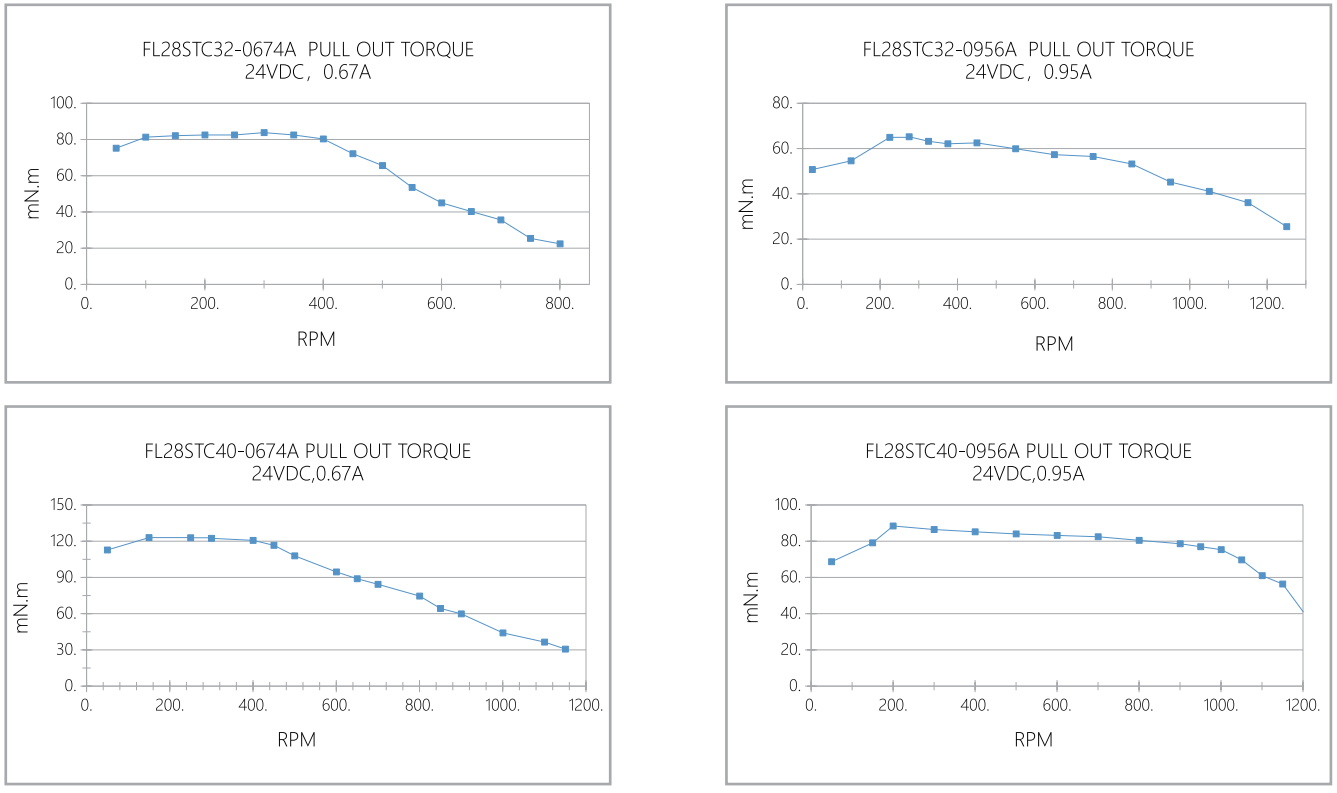

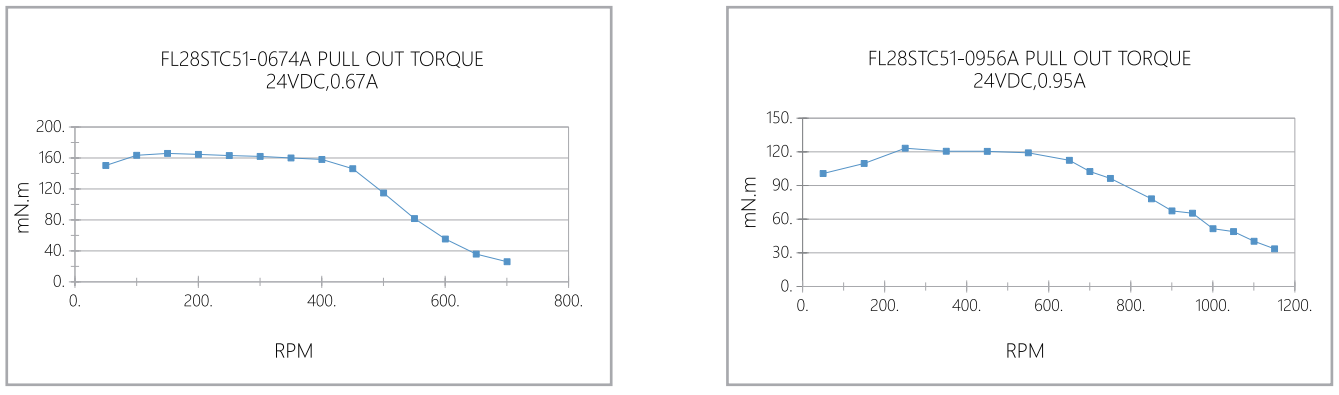

矩频曲线 (Pull out torque curve)




Download
FL28STC32-0956A 200.3 KB
FL28STC32-0674A 197.08 KB
FL28STC40-0674A 197.1 KB
FL28STC40-0956A 200.02 KB
FL28STC51-0674A 200.43 KB
FL28STC51-0956A 200.45 KB
