FL423P
Product 3 phase stepper motor

FL423P

1.2 ° 42mm, Nema 17, three-phase hybrid stepper motor
option:
  • FL423P
  • FL423P
  • FL423P
  • FL423P

特性概要(General specification)

项目(Item)

说明(Specifications)

步距角(Step Angle)

1.2°

步距角精度(Step Angle Accuracy)

±5% (整步无负载,full step, no load)

径向间隙( Radial Play)

0.02mm@450 g

轴向间隙( Axial Play)

0.08mm@450 g

最大径向负载(Max. radial force)

28N  距法兰20mm  (20mm from the flange)

最大轴向负载(Max. axial force)

10N

介电强度(Dielectric Strength)

600VAC / 1s

绝缘电阻(Insulation Resistance)

100MΩ ,500VDC

环境温度(Ambient Temperature)

-20。C~+50。C

绝缘等级(Insulation Class)

Class B


电性能(Electrical specifications)

型号(Model No.)

Current

/Phase

每相

电流

Resistance

/Phase

每相

电阻

Inductance

/Phase

每相

电感

Holding

Torque

保持

转矩

Detent

Torque

定位

转矩

# of Leads

引出

线数

Rotor

Inertia

转动

惯量

Weight

重量

Length

机身

长度

Single shaft

(单出轴)

A

Ω

mH

N.m

N.m

#

g-cm2

kg

mm

FL423P24-0903A

0.9

6.2

3.2

0.08

0.012

3

20

0.14

24

FL423P39-2403A

2.4

1.2

0.8

0.196

0.015

3

53

0.3

39


该款电机可以根据客户需求定制。

The motor can be designed &manufactured with customized request.

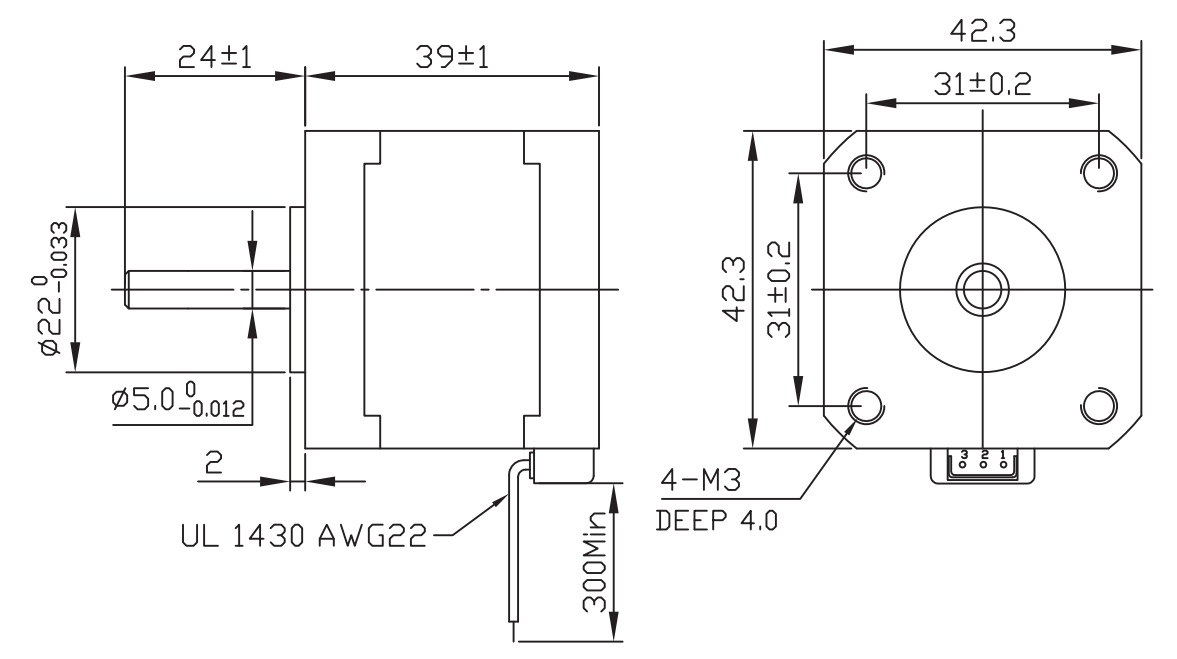

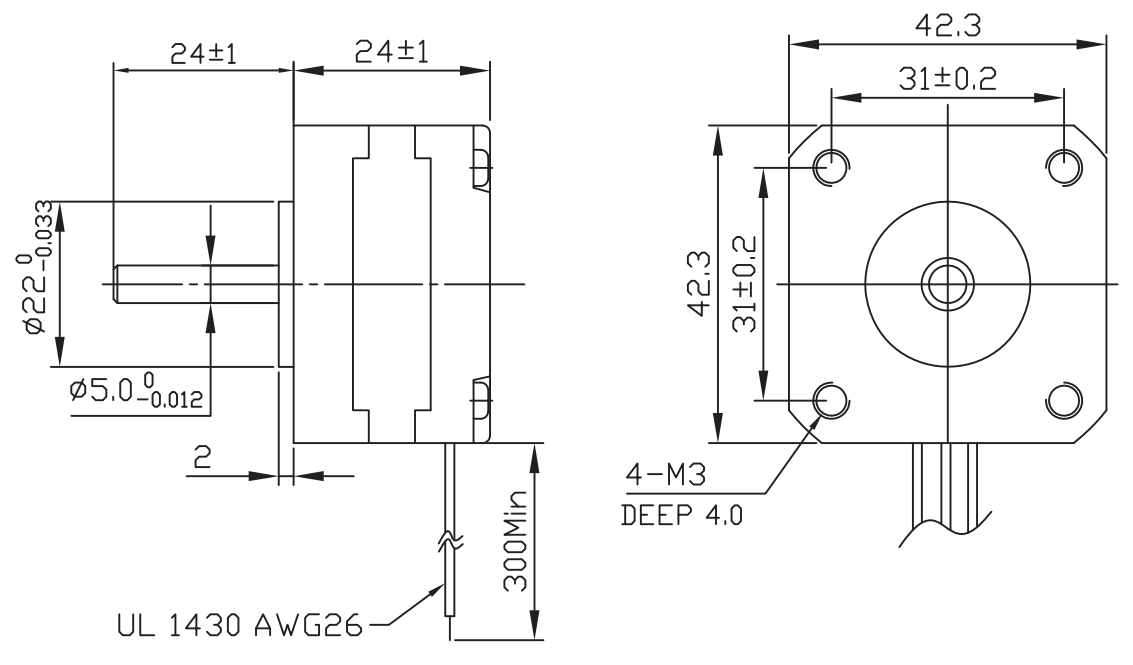

Motor size

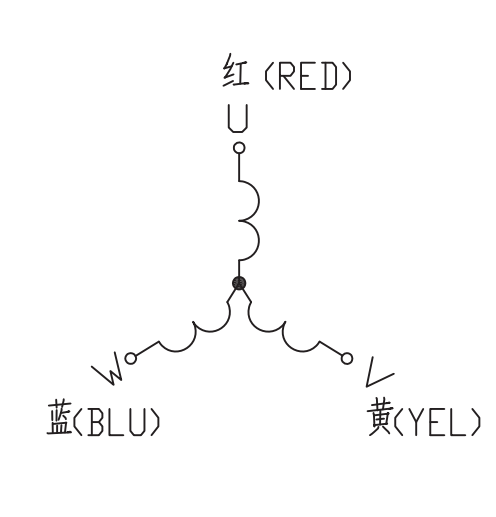

接线图(Wiring Diagram)

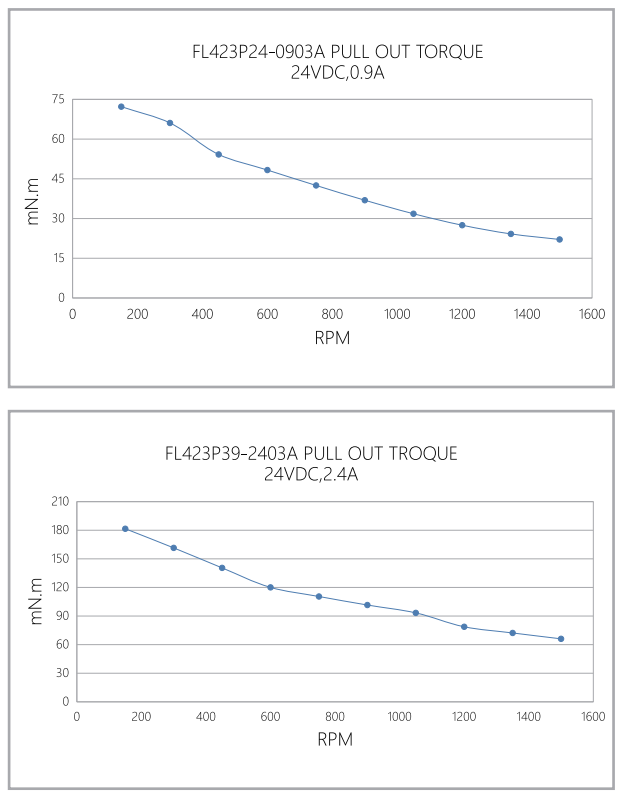

矩频曲线 (Pull out torque curve)



Download
FL423P24-0903A 159.35 KB
FL423P39-2403A 159.21 KB
