FE17-20 Series Encoder:
Two channels, optical type. Its typical application is printing machine, servo motor, working plant automation. Not recommed use on application referring to human safety, such as application with brake system.
option:
  • FE17-20
  • FE17-20
  • FE17-20
  • FE17-20

Parameter Overview:







Suitable Motor

Motor size

Suitable for   20,25 and above Square Stepper Motor

Motor Shaft diameter

3mm,4mm,5mm,6mm

Storage Temperature

-4085

Environmental   conditions

Application

No corrosive, flammable,   explosive, conductive gas, liquid and dust.

Temperature

-2580

Humidity

No more than 85% RH


Supply Voltage

5V±0.5V


Current   Consumption

70mA


Differential   Single Output

5V,GND,   A+/A-,B+/B-,Z+/Z-,


Output Level mode

TTL Compatible

Index Width

1/4T or 1/2T

Differential   Output Voltage

High Level   Output (VoH) ≥3.4V

Electrical Parameter

Low Level Output   (VoL) ≤0.5V

Differential   Signal Output Format

Line Drive 26C31

Optional   ResolutionUnitPPR

250 line/500 line/1000 line/2000 line


Duty Cycle

50% ±10%

Phase Difference

 90°±10°

Frequency Response

220KHz

Note: The signal frequency = (Speed(Rpm)    *  number of Lines)/60

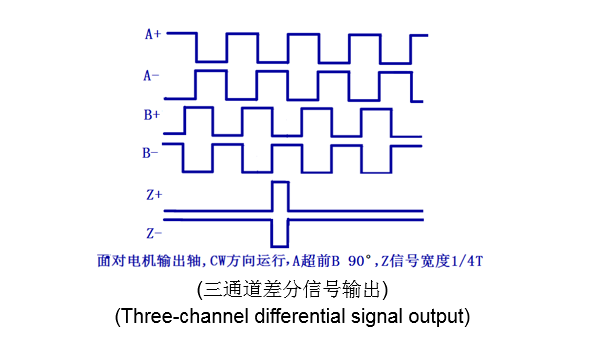

Waveform:

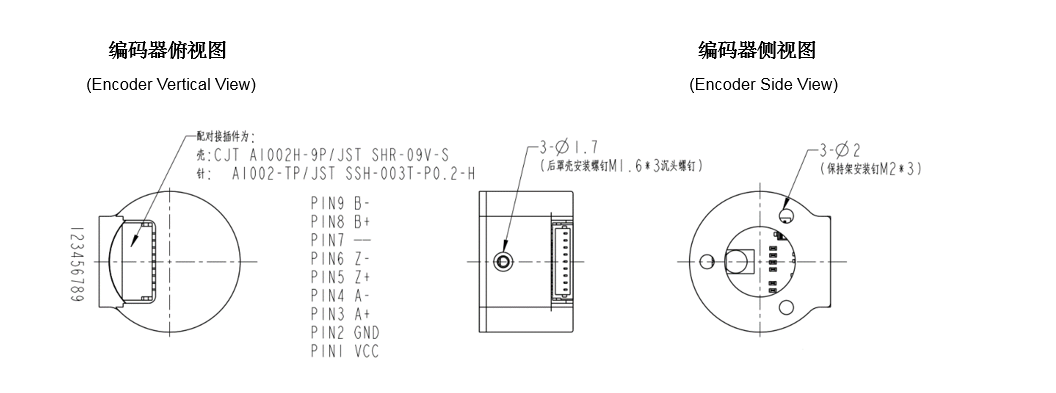

Motor size


Download
