FE17-33
Product FE series Encoder

FE17-33

FE17-33 Series Encoder:
Two channels, optical type. Its typical application is printing machine, servo motor, working plant automation. Not recommed use on application referring to human safety, such as application with brake system.
option:
  • FE17-33
  • FE17-33
  • FE17-33
  • FE17-33

Parameter Overview:









Suitable Motor

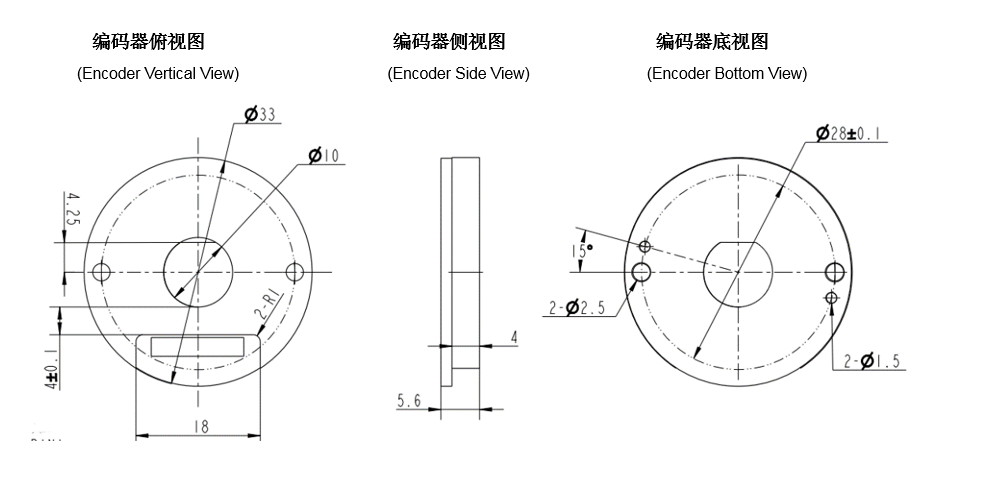

Motor size

Suitable for   38,42 and above (Brushless/Servo Motor)

Motor Shaft   diameter

Suitable for shaft   diameter 4mm,5mm,6mm,6.35mm

Storage Temperature

-4085

Environmental   conditions

Application

No corrosive, flammable, explosive, conductive   gas, liquid and dust.

Temperature

-2580

Humidity

No more than 85% RH


Supply Voltage

5V±0.5V


Current Consumption

120mA


Differential   Single Output

5V,GND,Z-,Z+,B-,B+,A-,A+,HW-,HW+,HV-,HV+,HU-,HU+


Output Level mode

TTL Compatible

Index Width

1/4T or 1/2T or 1T

 (According to the needing)

Differential   Output Voltage

High Level   Output (VoH) ≥3.4V

Electrical Parameter

Low Level Output   (VoL) ≤0.5V

Differential   Signal Output Format

Line Drive 26C31

Optional   ResolutionUnitCPR

2500(According to the needing)


Pole-pairs

2/4/5(According)


HU/HV/HW

120°


Duty Cycle

50% ±10%

A/B Phase difference

 90°±10°

Frequency Response

500KHz

Note: The signal frequency = (Speed(Rpm) *  number of Lines)/60


Waveform:

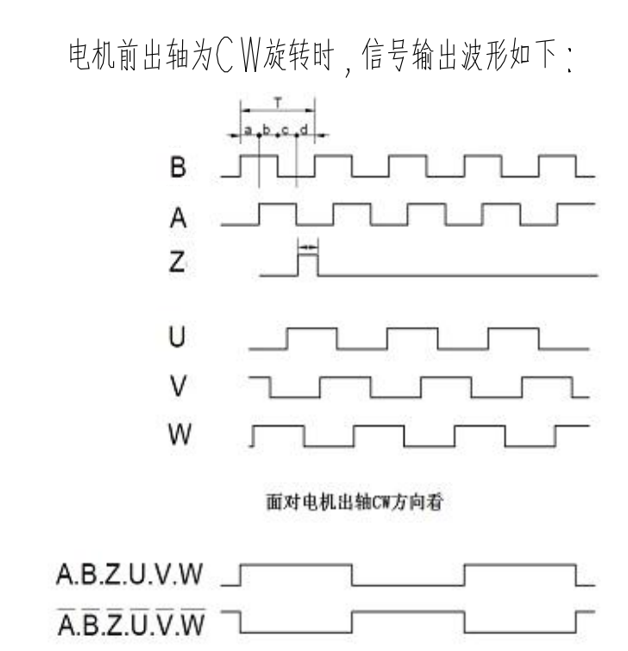

Attention: Default six-channel fully differential signal output waveform.The figure only shows the encoder outputs positive signal waveform.
