33mm standard brushless motor with 32mm planetary gearbox
option:
  • FL33BL-32JXE30K
  • FL33BL-32JXE30K
  • FL33BL-32JXE30K
  • FL33BL-32JXE30K

无刷直流行星齿轮减速电机(内齿圈材质:金属)

BLDC Planetary Gear Moto (Ring Gear Material: Metal)

型号范围

FL33BL38/32JXE30K

Φ32行星减速器,允许转矩范围:0.3N.m~3.0N.m

32mm OD Planetary Gearbox, Permissible Load Range: 0.3N.m~3.0N.m


接线方式   Wire Diagram


UVWVccHaHbHcGND
绿Green红Red黑Black黄Yellow蓝Blue橙Orange棕Brown白 White
UL1007   26AWG



无刷电动机主要技术参数  Brushless Motor Technical Data

电机型号极 数相 数额定电压空载转速额定转速额定转矩额定功率峰值转矩峰值电流电阻电感
TYPENumber of polesNumber of phaseRated voltageNo-load speedRated speedRated torqueRated powerReak torquePeak currentLine to line resistanceLine to line inductance



VDCr/minr/minmN.mWmN.mAohmsmH
FL33BL38-2445432445003000227660.6412.87
FL33BL80-24904324900078005040350110.860.55


无刷行星齿轮减速电机主要技术参数  Brushless Gear Motor Technical Data

配置FL33BL38-2445无刷直流电机 (LD=38mm)    FL33BL38-2445 DC Brushless Motor(LD=38mm)



减 速 比   Reduction ratio3.75.2141927355171100139189264369
减速级数 Number of gear trains1122223333444
减速器长度(L)  Length(L)mm25.725.732.832.832.832.839.739.739.739.746.646.646.6
空载转速   No-load speedr/min121386932123716712988634532241712
额定转速   Rated speedr/min809579214158111865942302216118.1
额定转矩   Rated torqueN.m0.0730.10.250.340.480.620.821.11.62.22.733
最大瞬间允许负载Max. permissible load in a short timeN.m113.53.53.53.57.57.57.57.5999


配置FL33BL80-2490无刷直流电机(LD=80mm)  (FL33BL80-2490  DC Brushless Motor)(LD=80mm)

减 速 比   Reduction ratio3.75.2141927355171100139
减速级数 Number of gear trains1122223333
减速器长度(L)  Length(L)mm25.725.732.832.832.832.839.739.739.739.7
空载转速   No-load speedr/min242517376434743332571761279065
额定转速   Rated speedr/min210215065574112892231531107856
额定转矩   Rated torqueN.m0.170.230.570.771.11.41.92.533
最大瞬间允许负载Max. permissible load in a short timeN.m113.53.53.53.57.57.57.57.5

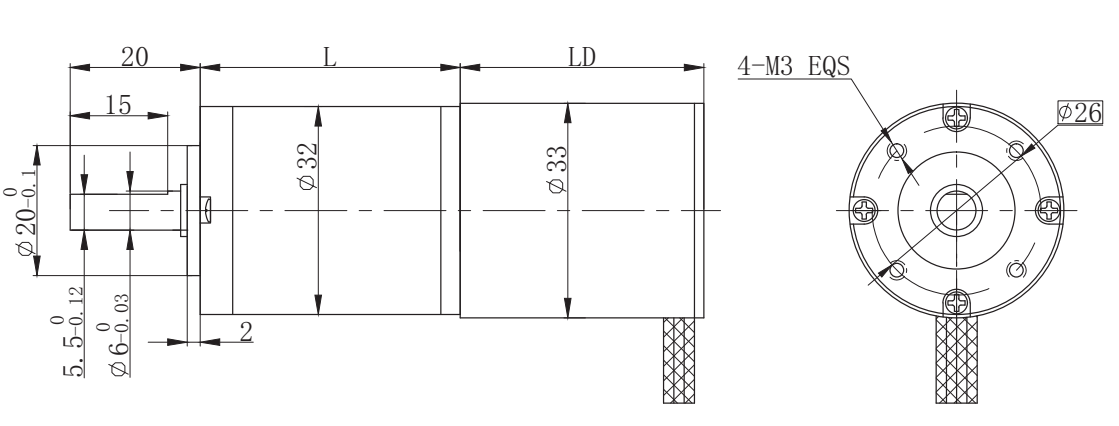

Motor size


Download
