FL28CBLA-28JN30K
Product Planetary gearbox

FL28CBLA-28JN30K

28mm economical brushless motor with 28mm planetary gearbox
option:
  • FL28CBLA-28JN30K
  • FL28CBLA-28JN30K
  • FL28CBLA-28JN30K
  • FL28CBLA-28JN30K

无刷直流行星齿轮减速电机 (内齿圈材质:粉末金属)

BLDC Planetary Gear Motor (Ring Gear Material:  Metal and Powder)

型号范围
FL28CBLA/28JN30K

Φ28行星减速器,允许转矩范围:0.3N.m~3.0N.m

28mm OD Planetary Gearbox, Permissible Load Range: 0.3N.m~3.0N.m


接线方式   Wire Diagram

UVWVccHaHbHcGND
绿Green红Red黑Black黄Yellow蓝Blue橙Orange棕Brown白White
UL1061   AWG26UL1061   AWG28



无刷电动机主要技术参数  Brushless Motor Technical Data

电机型号极 数相 数额定电压空载转速额定转速额定转矩额定功率峰值转矩峰值电流电 阻电 感
TYPENumber of polesNumber of phaseRated voltageNo-load speedRated speedRated torqueRated powerReak torquePeak currentLine to line resistanceLine to line inductance



VDCr/minr/minmN.mWmN.mAohmsmH
FL28CBLA38-245483245400400028128425.72.48
FL28CBLA48-245683246300450050241504.52.51.2


无刷行星齿轮减速电机主要技术参数  Brushless Gear Motor Technical Data

配置FL28CBLA38-2454无刷电机 (LD=38mm)   FL28CBLA38-2454 BLDC Motor(LD=38mm)

减 速 比   Reduction ratio
3.75.2141927355171100139181218254
减速级数 Number of gear trains
1122223333444
减速器长度(L)  Length(L)mm292936.136.136.136.14343434349.949.949.9
空载转速   No-load speedr/min14561042386284200154106765439302521
额定转速   Rated speedr/min107877228621114811478564029221816
额定转矩   Rated torqueN.m0.0930.130.320.430.610.7911.522.8333
最大瞬间允许负载Max. permissible load in a short timeN.m113.53.53.53.57.57.57.57.5999


配置FL28CBLA48-2456无刷电机(LD=48mm)    FL28CBLA48-2456 BLDC Motor(LD=48mm)

减 速 比   Reduction ratio
3.75.2141927355171100139181
减速级数 Number of gear trains
11222233334
减速器长度(L)  Length(L)mm292936.136.136.136.14343434349.9
空载转速   No-load speedr/min1700121645033223318012489634535
额定转速   Rated speedr/min12138693212371671298863453225
额定转矩   Rated torqueN.m0.170.230.570.771.11.41.92.6333
最大瞬间允许负载Max. permissible load in a short timeN.m113.53.53.53.57.57.57.57.59

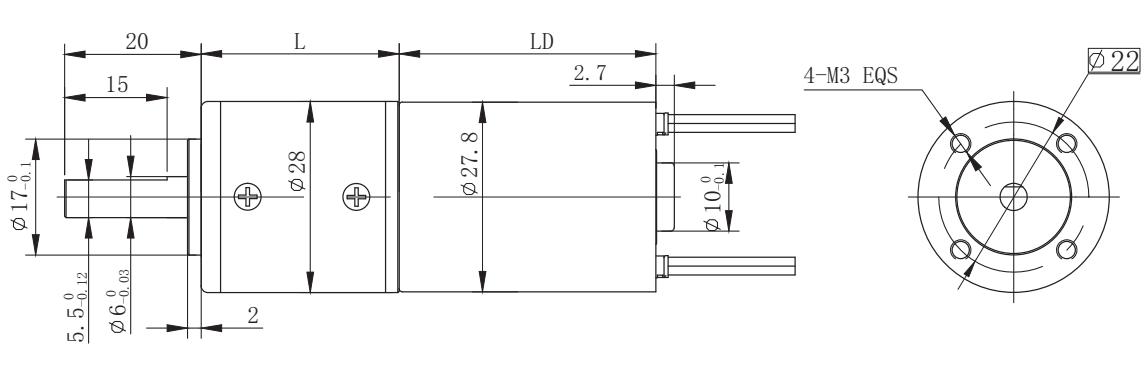

Motor size
