42STH-42JB
Product Stepper motor with gearbox

42STH-42JB

1.8 ° 42mm, Nema 17 spur gearbox stepper motor
option:
  • 42STH-42JB
  • 42STH-42JB
  • 42STH-42JB
  • 42STH-42JB

特性概要(General specification)

Ratio

减速比

3.6

7.2

9

10

18

36

Weight

重量

0.1kg

0.125kg

0.15kg

Number of gear trains

减速级数

2

3

4

Nominal torque

额定转矩

2.5N.m

Ultimate torque

极限转矩

3.0N.m

Efficiency

效率

81%

72%

65%

Backlash

回差

0.6 deg

0.4deg



齿轮箱电机性能(Gear Motor Specifications)

Ratio

减速比

3.6

7.2

9

10

18

36



FL42STH33-42JB

Torque(N.m) (at 300rpm)

转矩(N.m) (在 300rpm)

0.5

1.1

1.3

1.45

2.3

-

speed(rpm)转速(rpm)

83

41.5

33

30

16.5

-



FL42STH38-42JB

Torque(N.m) (at 300rpm)

转矩(N.m) (在 300rpm)

0.73

1.45

1.8

2.0

---

---

speed(rpm)转速(rpm)

83

41

33

30

---

---

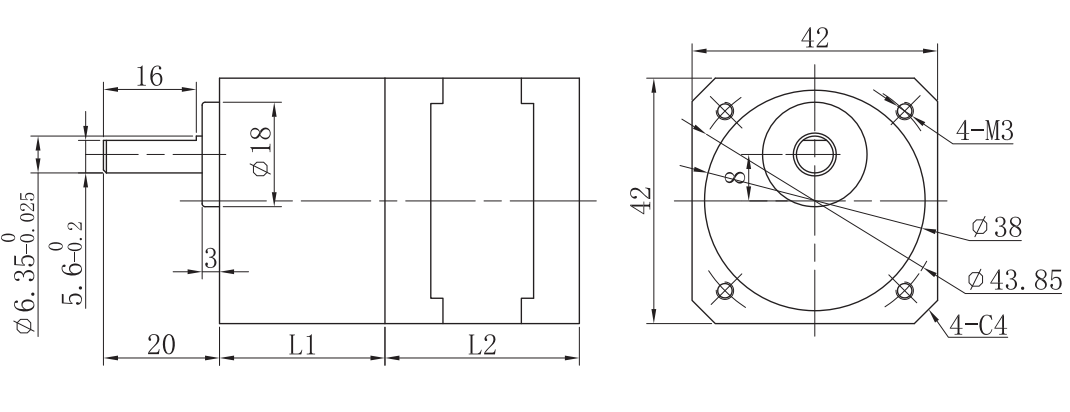

RATIO

减速比

L2(mm)

L1(mm)

FL42STH33-42JB

FL42STH38-42JB

3.6---36

33.5

39.5

28.5


该款电机可以根据客户需求定制。

The motor can be designed &manufactured with customized request.


Motor size

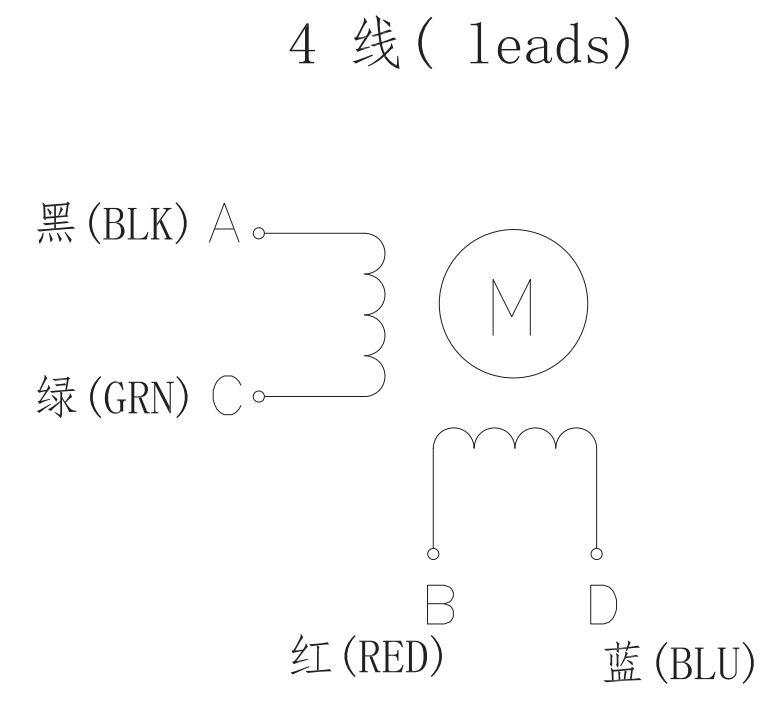

接线图(Wiring Diagram)
