FL86ST
Product 2 phase stepper motor

FL86ST

1.8 ° 86mm, Nema 24, ST structure circular stepper motor
option:
  • FL86ST
  • FL86ST
  • FL86ST
  • FL86ST

特性概要(General specification)


项目(Item)

说明(Specifications)

步距角(Step Angle)

1.8°

步距角精度(Step Angle Accuracy)

±5% (整步无负载,full step, no load)

径向间隙( Radial Play)

0.02mm@450 g

轴向间隙( Axial Play)

0.08mm@450 g

最大径向负载(Max. radial force)

220N  距法兰20mm  (20mm from the flange)

最大轴向负载(Max. axial force)

60N

介电强度(Dielectric Strength)

820VAC / 1s

绝缘电阻(Insulation Resistance)

100MΩ ,500VDC

环境温度(Ambient Temperature)

-20。C~+50。C

绝缘等级(Insulation Class)

Class B



电性能(Electrical specifications)

型号(Model No.)

Current

/Phase

每相

电流

Resistance

/Phase

每相

电阻

Inductance

/Phase

每相

电感

Holding

Torque

保持

转矩

Detent

Torque

定位

转矩

# of Leads

引出线数

Rotor

Inertia

转动惯量

Weight

重量

Length

机身

长度

Single shaft

(单出轴)

A

Ω

mH

N.m

N.m

#

g-cm2

kg

mm

FL86ST67-2808AH

2.8

   1.3

5.1

2.8

0.12

8

660

1.6

67±1

FL86ST94-2808AH

2.8

1.7

7.7

4.8

0.18

8

1200

2.4

94±1

FL86ST125-3508AH

3.5

1.42

7.9

7.6

0.23

8

1800

3.6

125±1


该款电机可以根据客户需求定制。

The motor can be designed &manufactured with customized request.

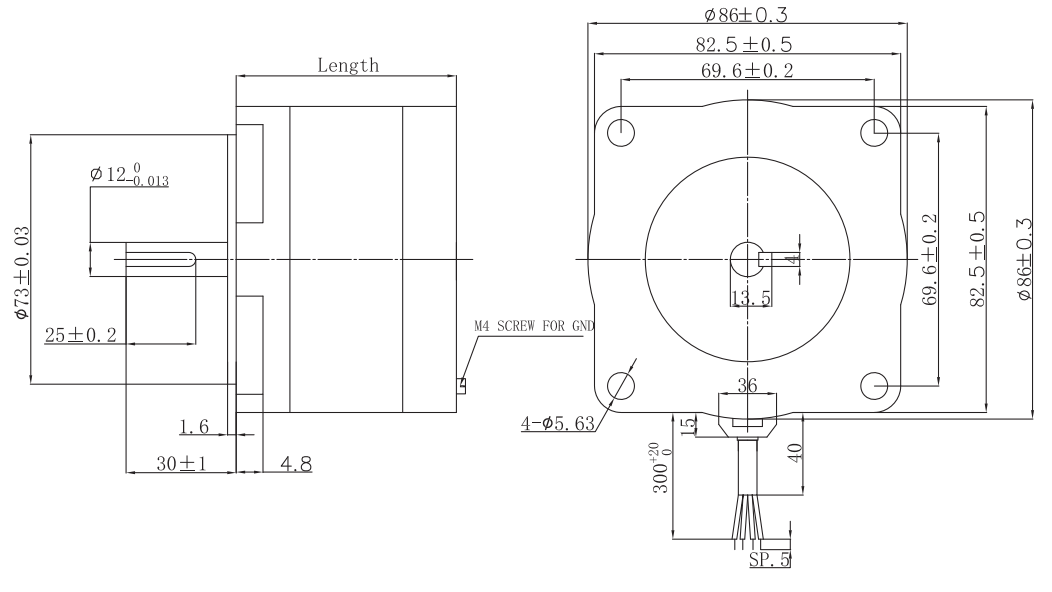

Motor size

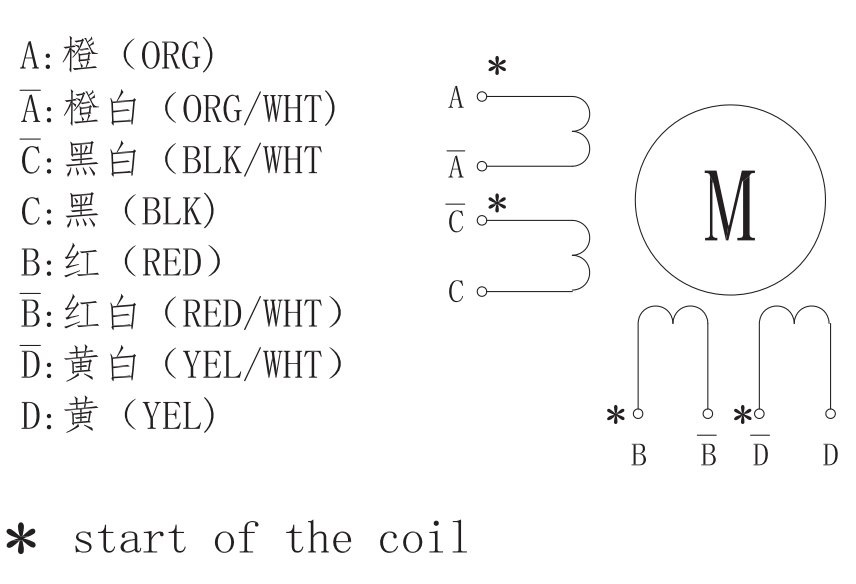

接线图(Wiring Diagram)

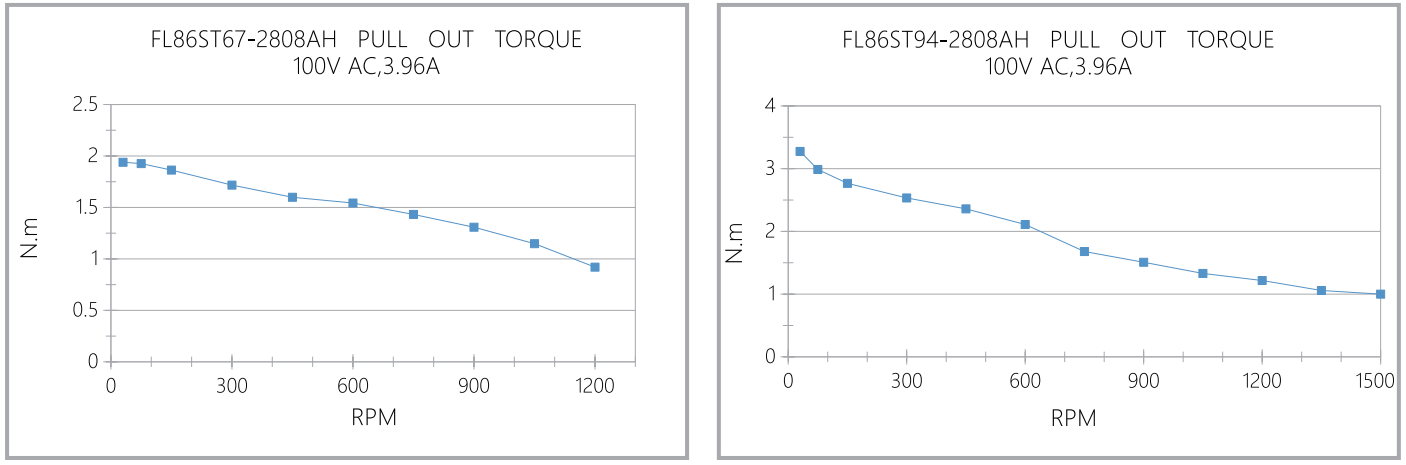

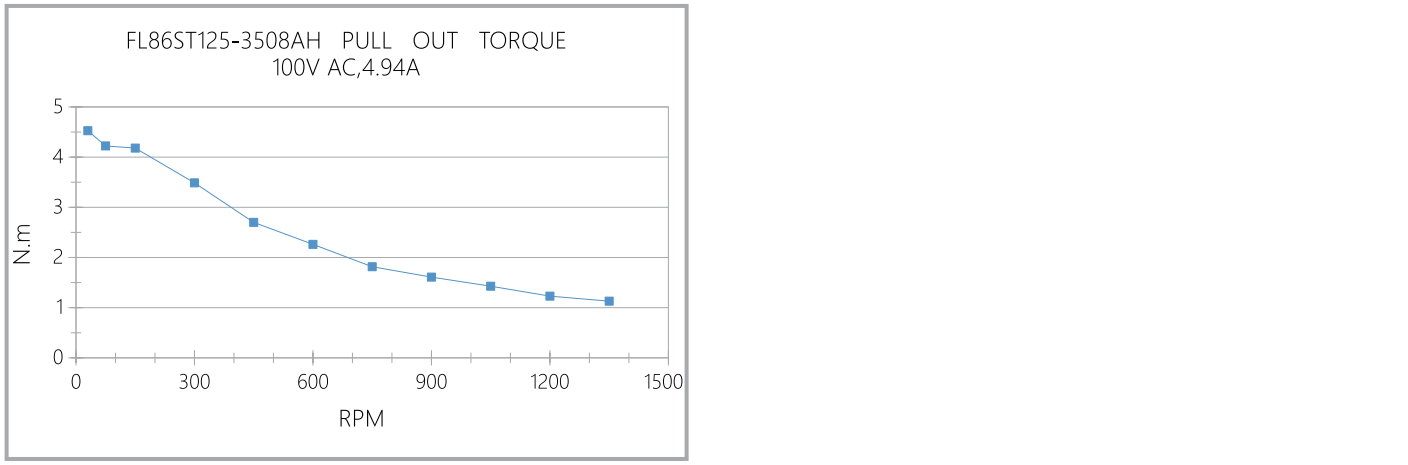

矩频曲线 (Pull out torque curve)
