Product Frameless motor

FL50BL

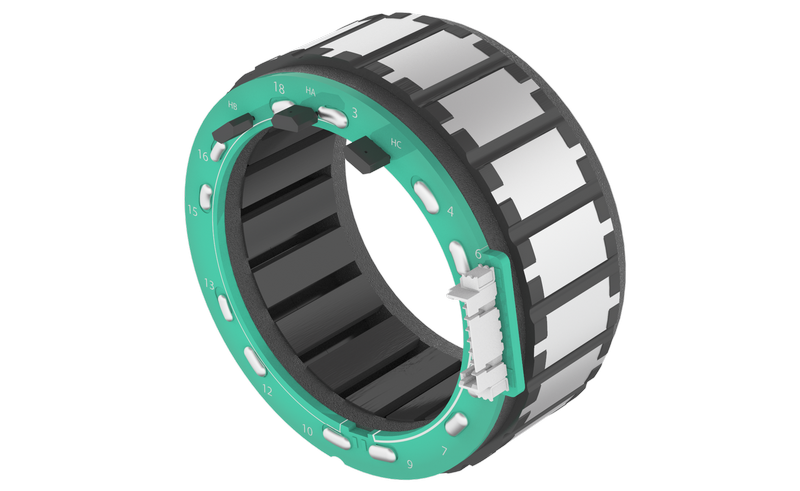

Φ 50mm frameless motor, 48VDC
option:
  • FL50BL
  • FL50BL
  • FL50BL
  • FL50BL

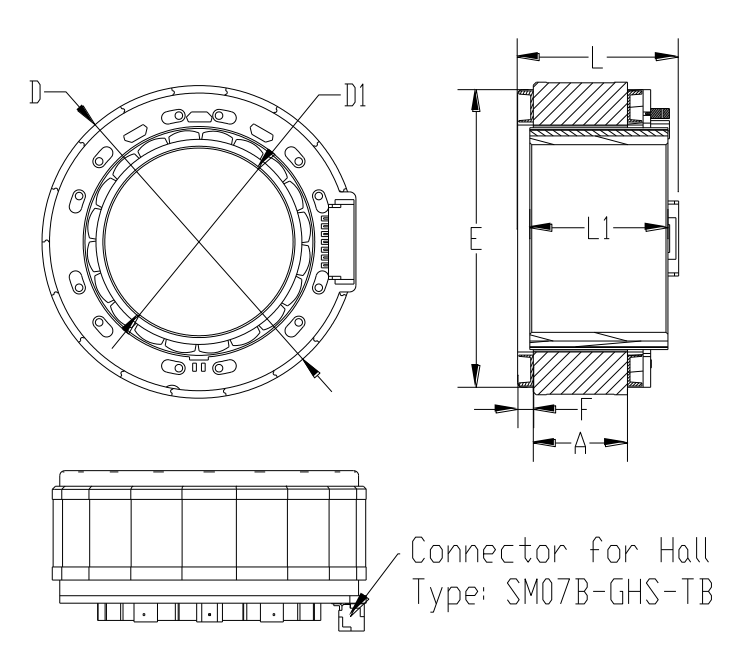

项目(Items)FL50BL15FL50BL08公差(Tolerance)
定子外径D50mm50mm±0.031(js9)
定子长度L26mm20mm±1
转子内径D130mm30mm(+0.033/0)H8
转子长度L1 22mm16mm±0.2
灌胶面外圆E47.6mm47.6mm±0.2
灌胶面高度F2.5mm2.5mm±0.3
定子铁芯高度A15mm8.6mm±0.2/-0.3


特性概要 ( General Specifications )

绕组连接方式( Winding Type )

星形 ( Star connection)

霍尔分布角度( Hall Effect Angle )

120度电角度 ( Electrical Angle of 120 degree)

介电强度( Dielectric Strength )

1000VAC/1S

绝缘电阻( Insulation Resistance )

100MΩ, 500VDC

使用环境( Operation Ambient )

-20°C   ~   +50°C

绝缘等级(Insulation Class)

Class B



接线说明(Electric Connection)

引出线颜色Color

引出线型号

Type

功能

Functions

PIN1

Connector for Hall is optional

Type: SM07B-GHS-TB

热敏 ( NTC2 )

PIN2

热敏 ( NTC1 )

PIN3

霍尔电源负 ( GND )

PIN4

霍尔 A ( Ha )

PIN5

霍尔 B ( Hb )

PIN6

霍尔 C( Hc )

PIN7

霍尔电源正  ( Vcc )

黄色  ( Yellow )

UL1332 AWG22

UL1332 AWG20

U相 ( Phase U )

红色  ( Red )

V相 ( Phase V )

黑色  ( Black)

W相 ( Phase W )



电性能 (Electrical Specifications)


单 位 (Unit)

FL50BL15-48V-35183A

FL50BL08-48V-50170A

极数  ( Number of poles )


20

20

相数  ( Number of phases )


3

3

额定电压 ( Rated  voltage )

VDC

48

48

额定转矩 ( Rated torque)

N.m

0.5

0.3

额定电流(Rated current)

A

4.8

3.6

额定速度 ( Rated speed )

RPM

3500

4800

额定功率 ( Rated power )

W

183

151

最大转速(Maximum speed)

RPM

4600

6000

峰值转矩 ( Peak torque )

N.m

1.5

0.96

峰值电流 ( Peak current )

A

14.5

11.6

线电阻 ( Line to line resistance )

ohms@20℃

0.77

0.9

线电感 ( Line to line inductance )

mH

0.38

0.4

转矩常数 ( Torque constant )

Nm/A

0.120

0.092

反电势 ( Back EMF )

Vrms/KRPM

7.3

5.6

机身长度 ( Motor length )

mm

26

20

重量 ( Weight )

g

147

95.6

电气时间常数(Electrical time constant)

ms

0.49

0.45



该款电机可以根据客户需求定制。

The motor can be designed &manufactured with customized request.

Motor size


Download
FL50BL08-48V-50170A 158.67 KB
FL50BL15-48V-35183A 173.74 KB
