FL573P
Product 3 phase stepper motor

FL573P

1.2 ° 57mm, Nema 23, three-phase hybrid stepper motor
option:
  • FL573P
  • FL573P
  • FL573P
  • FL573P

特性概要(General specification)

项目(Item)

说明(Specifications)

步距角(Step Angle)

1.2°

步距角精度(Step Angle Accuracy)

±5% (整步无负载,full step, no load)

径向间隙( Radial Play)

0.02mm@450 g

轴向间隙( Axial Play)

0.08mm@450 g

最大径向负载(Max. radial force)

75N  距法兰20mm  (20mm from the flange)

最大轴向负载(Max. axial force)

15N

介电强度(Dielectric Strength)

600VAC / 1s

绝缘电阻(Insulation Resistance)

100MΩ ,500VDC

环境温度(Ambient Temperature)

-20。C~+50。C

绝缘等级(Insulation Class)

Class B


电性能(Electrical specifications)

型号(Model No.)

Current

/Phase

每相

电流

Resistance

/Phase

每相

电阻

Inductance

/Phase

每相

电感

Holding

Torque

保持

转矩

Detent

Torque

定位

转矩

# of Leads

引出线数

Rotor

Inertia

转动惯量

Weight

重量

Length

机身

长度

Single shaft

(单出轴)

A

Ω

mH

N.m

N.m

#

g-cm2

kg

mm

FL573P42-5206A

5.2

1.3

1.4

0.45

0.021

6

110

0.45

42±1

FL573P56-5606A

5.6

0.7

1.7

0.90

0.040

6

300

0.75

56±1

FL573P79-5806A

5.8

1.05

2.4

1.50

0.068

6

480

1.10

79±1


该款电机可以根据客户需求定制。

The motor can be designed &manufactured with customized request.

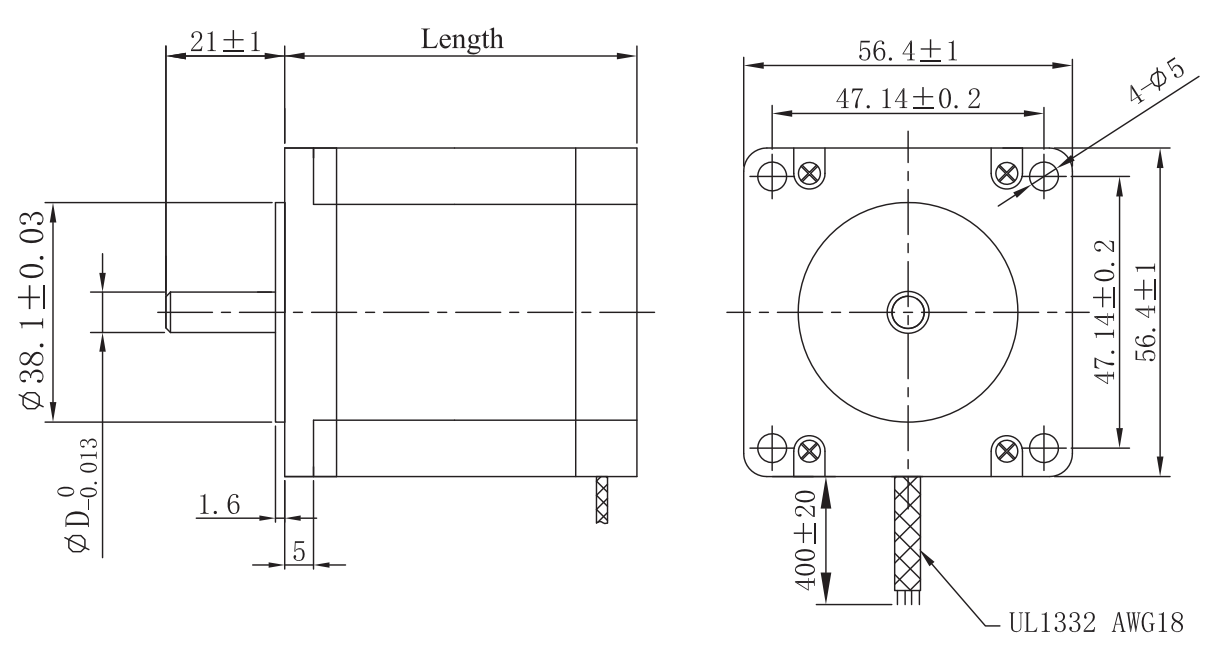

Motor size



接线图(Wiring Diagram)

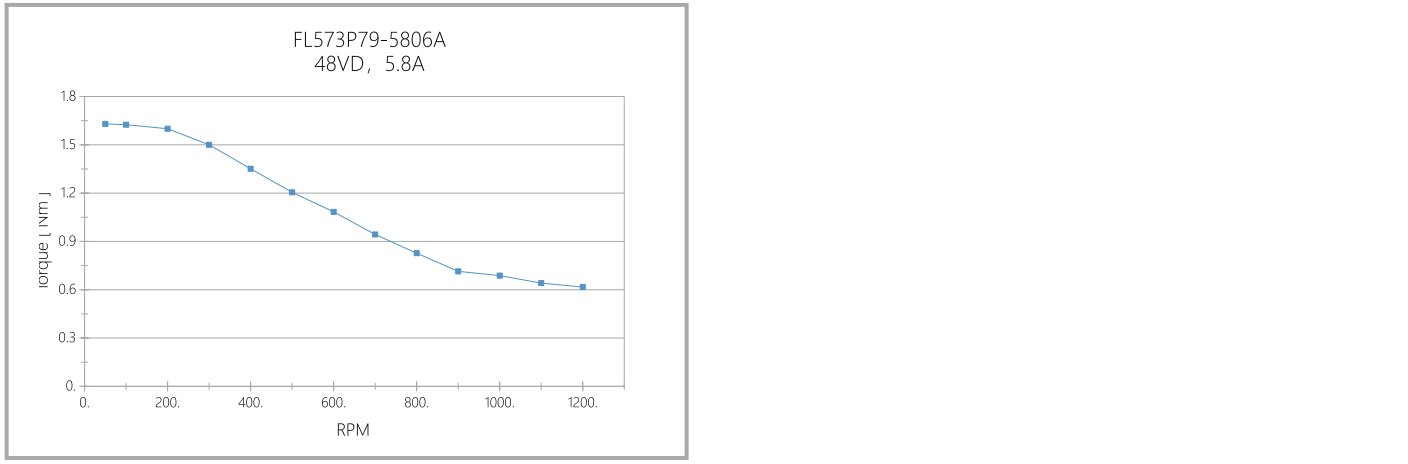

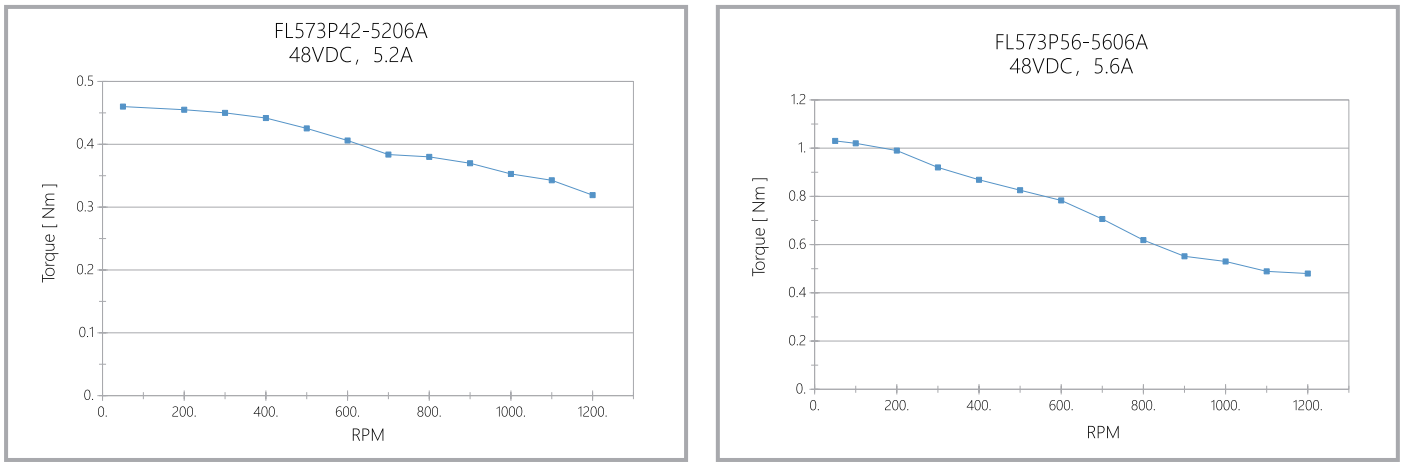

矩频曲线 (Pull out torque curve)




FL573P42-5206A & FL573P56-5606A, “D”是6.35mm,FL573P79-5806A, “D”是8mm


Download
FL573P79-5806A 158.07 KB
FL573P42-5206A 160.08 KB
FL573P56-5606A 157.93 KB
