FL86STH
Product Stepper motor with hollow shaft

FL86STH

1.8 ° 60mm, Nema 24, STC-H structure hollow shaft stepper motor
option:
  • FL86STH
  • FL86STH
  • FL86STH
  • FL86STH

特性概要(General specification)

项目(Item)

说明(Specifications)

步距角(Step Angle)

1.8°

步距角精度(Step Angle Accuracy)

±5% (整步无负载,full step, no load)

径向间隙( Radial Play)

0.02mm@450 g

轴向间隙( Axial Play)

0.08mm@450 g

最大径向负载(Max. radial force)

130N  距法兰20mm  (20mm from the flange)

最大轴向负载(Max. axial force)

36N

介电强度(Dielectric Strength)

1200VAC / 1S

绝缘电阻(Insulation Resistance)

100MΩ ,500VDC

环境温度(Ambient Temperature)

-20。C~+50。C

绝缘等级(Insulation Class)

Class B


电性能(Electrical specifications)

型号(Model No.)


Current

/Phase

每相

电流

Resistance

/Phase

每相

电阻

Inductance

/Phase

每相

电感

Holding

Torque

保持

转矩

Detent

Torque

定位

转矩

# of Leads

引出线数

Rotor

Inertia

转动惯量

Weight

重量

Length

机身

长度

Double shaft(双出轴)


A

Ω

mH

N.m

N.m

#

g-cm2

kg

mm



FL86STH80-4208B-H

单极性 unipolar

4.2

0.8

3.5

3.3

0.12

8

1400

2.3

77

串联   series

3

1.6

14

4.5

并联   parallel

6

0.4

3.5

4.5



FL86STH118-4208B-H

单极性 unipolar

4.2

1.2

6.5

6

0.24

8

2700

3.8

114

串联   series

3

2.4

26

8.5

并联   parallel

6

0.6

6.5

8.5


该款电机可以根据客户需求定制。

The motor can be designed &manufactured with customized request.

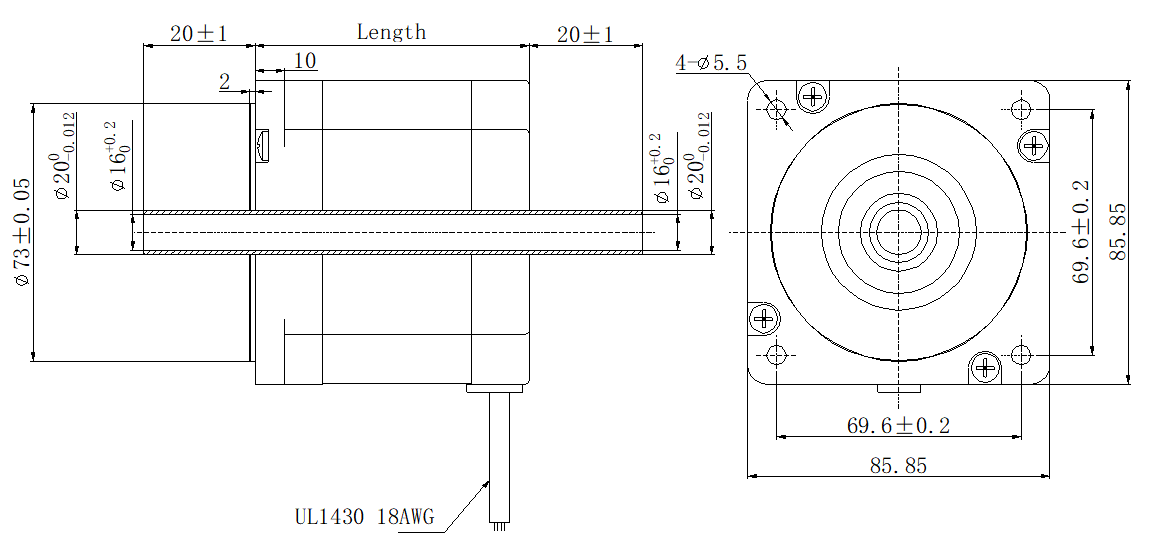

Motor size

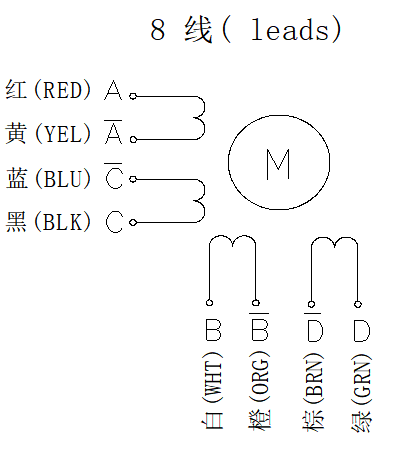

接线图(Wiring Diagram)

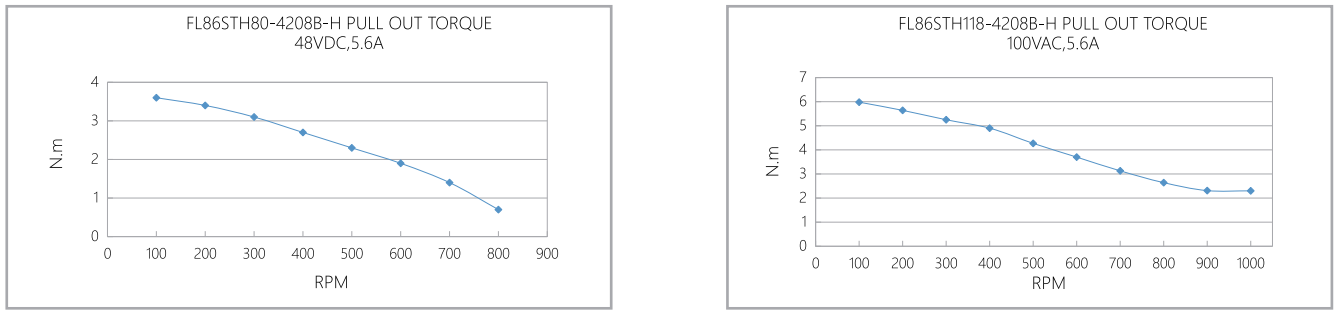

矩频曲线 (Pull out torque curve)



Download
