FL60STH
Product 2 phase stepper motor

FL60STH

1.8 ° 60mm, Nema 24, STH structure hybrid stepper motor
option:
  • FL60STH
  • FL60STH
  • FL60STH
  • FL60STH

特性概要(General specification)

项目(Item)

说明(Specifications)

步距角(Step Angle)

1.8°

步距角精度(Step Angle Accuracy)

±5% (整步无负载,full step, no load)

径向间隙( Radial Play)

0.02mm@450 g

轴向间隙( Axial Play)

0.08mm@450 g

最大径向负载(Max. radial force)

75N  距法兰20mm  (20mm from the flange)

最大轴向负载(Max. axial force)

15N

介电强度(Dielectric Strength)

600VAC / 1s

绝缘电阻(Insulation Resistance)

100MΩ ,500VDC

环境温度(Ambient Temperature)

-20℃~+50℃

绝缘等级(Insulation Class)

Class B


电性能(Electrical specifications)

型号(Model No.)


Current

/Phase

每相

电流

Resistance

/Phase

每相

电阻

Inductance

/Phase

每相

电感

Holding

Torque

保持

转矩

Detent

Torque

定位

转矩

# of Leads

引出线数

Rotor

Inertia

转动惯量

Weight

重量

Length

机身

长度

单轴(Single shaft)


A

Ω

mH

N.m

N.m

#

g-cm2

kg

mm



FL60STH45-2008AF

单极性(unipolar)

2

1.5

2

0.78

0.05

8

275

0.6

47±1

并联(parallel)

2.8

0.75

2

1.1

串联(series)

1.4

3.0

8

1.1



FL60STH56-2008AF

单极性(unipolar)

2

1.8

3.6

1.17

0.07

8

400

0.77

56±1

并联(parallel)

2.8

0.9

3.6

1.65

串联(series)

1.4

3.6

14.4

1.65



FL60STH65-2008AF

单极性(unipolar)

2

2.4

4.6

1.5

0.09

8

570

1.2

67±1

并联(parallel)

2.8

1.2

4.6

2.1

串联(series)

1.4

4.8

18.4

2.1



FL60STH86-2008AF

单极性(unipolar)

2

3

6.8

2.1

0.12

8

840

1.4

88±1

并联(parallel)

2.8

1.5

6.8

3.0

串联(series)

1.4

6

27.2

3.0



该款电机可以根据客户需求定制。

The motor can be designed &manufactured with customized request.

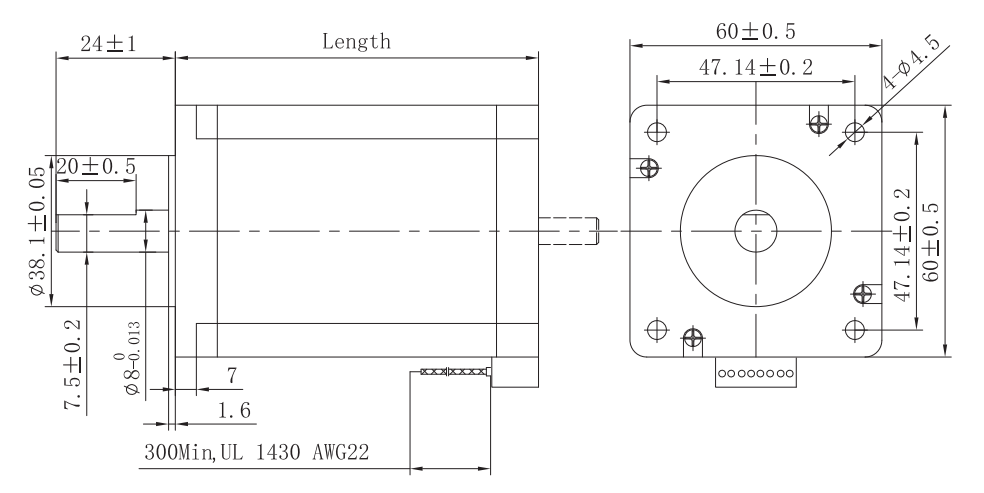

Motor size

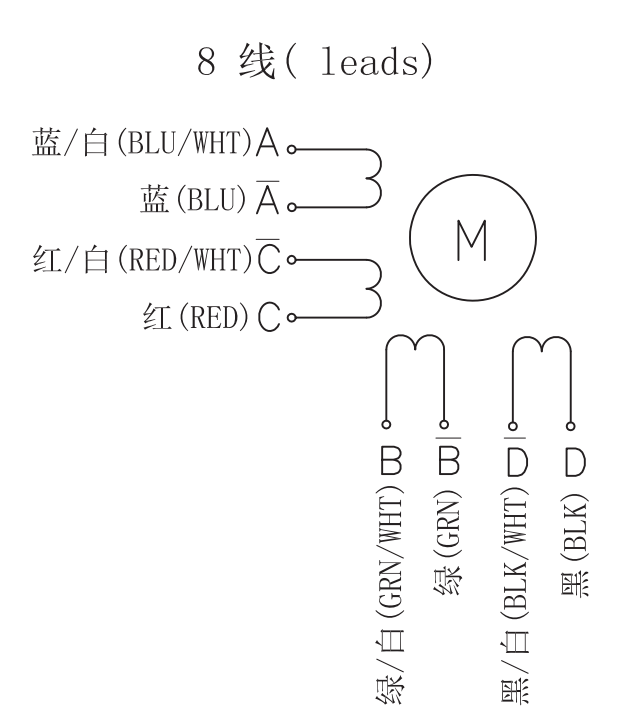

接线图(Wiring Diagram)

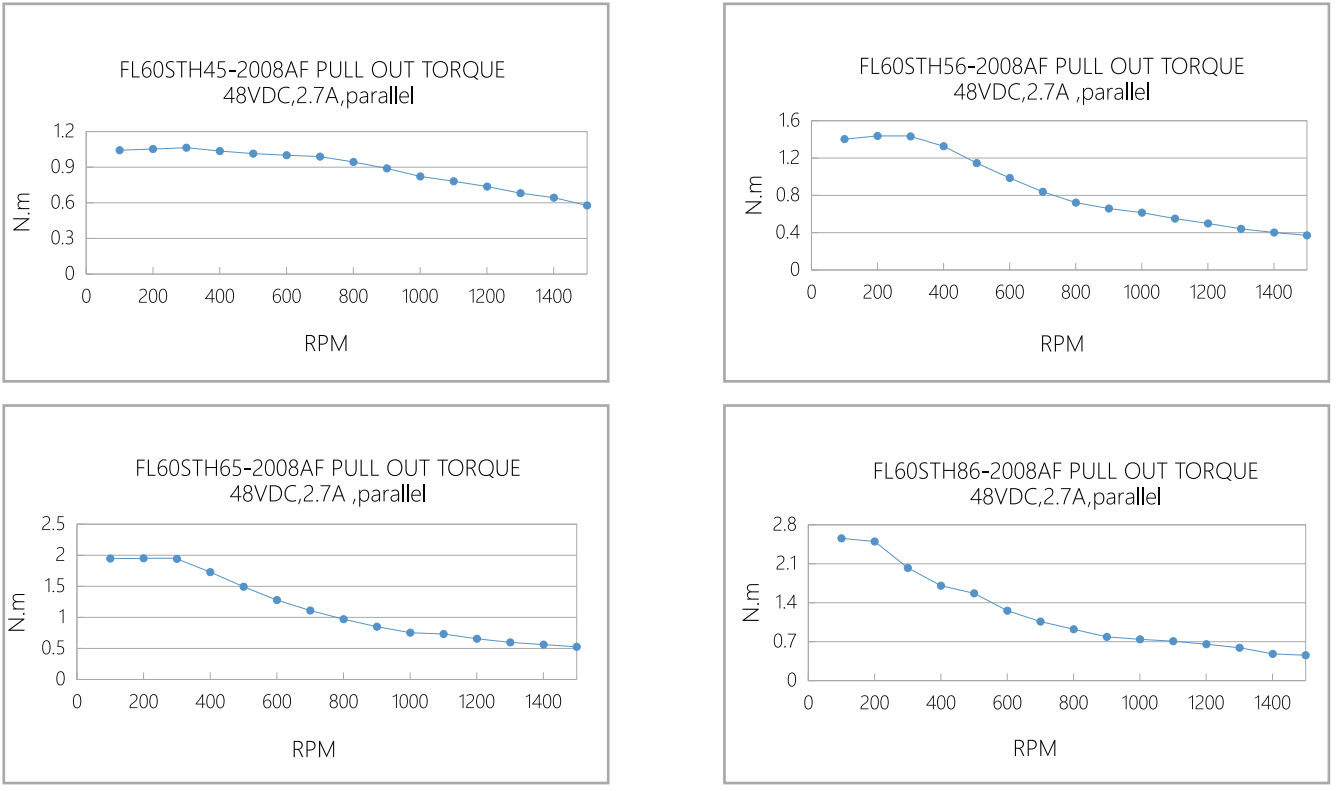

矩频曲线 (Pull out torque curve)



Download
FL60STH45-2008AF 169.18 KB
FL60STH56-2008AF 169.66 KB
FL60STH65-2008AF 172.63 KB
FL60STH86-2008AF 170.07 KB
