WS80L-07A250C-MUGA03

Fuxing stepper motors provide high-performance two-phase and three-phase hybrid stepper motors with various sizes and output torques, single polarity or bipolar control, and single or dual axis. The products are divided into standard type, torque enhanced type, high protection type, etc., which can fully meet the various application needs of different users.
option:
  • WS80L-07A250C-MUGA03
  • WS80L-07A250C-MUGA03
  • WS80L-07A250C-MUGA03
  • WS80L-07A250C-MUGA03

1. Specifications

ModelWS80L-07A250C-MUGA03
Diameter Size200mm
Rated Voltage36VDC
Rated Current7 Arms
Maximum speed250rpm(Line speed   2m/s)
Rated Torque7 N.m
Peak Torque18 N.m
Operating   Temperature-10℃~40℃(Non-freezing)
Operating   Humidity5~95%RH(Non-condensing)
Storage   Temperature-10℃~70℃(Non-freezing)
Storage   HumidityBelow   90%RH(Non-condensing)
Protection   ClassIp67 except shaft
Weight3.25Kg
Suggested Load   (2 PCS)Below 110kg

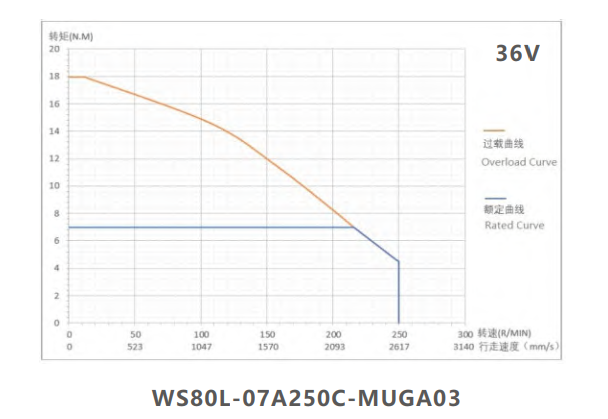

2. Torque Curve

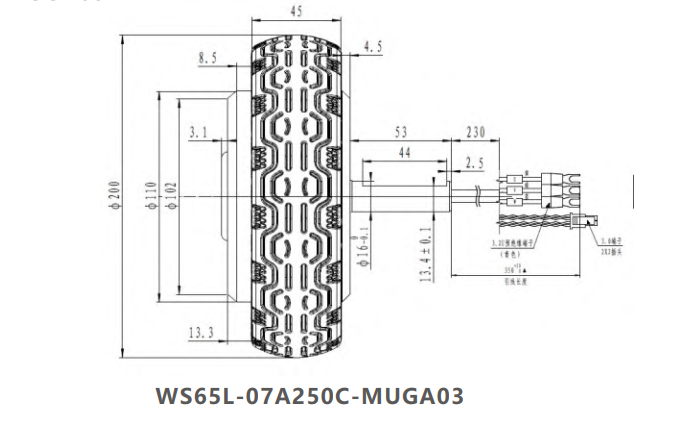

Motor size
