FL25SV
Product Servo Motor

FL25SV

25mm servo motor, 30W, 24V
option:
  • FL25SV
  • FL25SV
  • FL25SV
  • FL25SV

General Technical Information:

Encoder type

1Optical encoder

2Magnetic encoder

3Resolver

Note: Multiple resolutions are availableIncremental   and absolute values are available.

Max radial force

6N @ 14mm from the flange







Environmental   conditions

Temperature: -20~ +40

Relative humidity: ≤90%RH(No   dewing)

Installation environment: Far away active gas,

Combustible gas, oil drop, ash.

altitude1000m(1000~4000mDerating   use)

Storage Condition: -20~ +6085%RH(No   dewing).

Max axial force

5N

Insulation Class

Class F

Protection level

IP54


Motor Technical Specification:

Model

Unit

FL25SV03

Rated power                  Pn

W

30

Rated voltage                 U

VDC

24

Rated speed                  nn

RPM

3000

Rated torque                 Tn

N·m

0.095

Rated current                 In

A

2

Maximum speed             nmax

RPM

4800

Maximum torque             Tm

N·m

0.285

Maximum current             Im

 A

6

Line to line resistance              RL

Ω

2.3

Line to line inductance             LL

mH

0.7

Back EMF                 Ke

V/Krpm

3.42

Torque constant               Kt

Nm/A

0.057

Electrical time constant    τe

ms

0.8

Mechanical time constant τm

ms

1.34

Rotor inertia                 Jm0

kg.cm2

0.0077

Rotor inertia with brake  Jm1

kg.cm2

/

Number of poles


8

Encoder


17 bit single   absolute encoder

Motor length                 L1

mm

73

Motor length with brake  L2

mm

/

Weight

Kg

0.2

Weight with brake

Kg

/

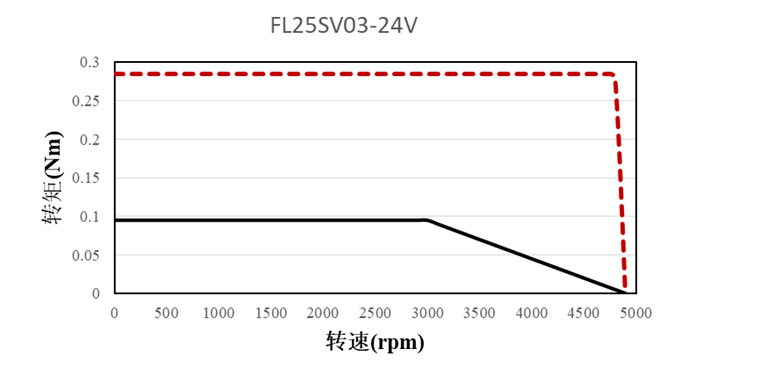

Performance Curve:image


Electric Connection:

No.

Lead Color

Lead Gauge

Function

Description

1

Yellow

Cable

20AWG

Phase U


2

Red

Phase V


3

Black

Phase W


The color definition of the encoder wiring is shown on the drawing.


*This motor can be designed & manufactured with customized request.

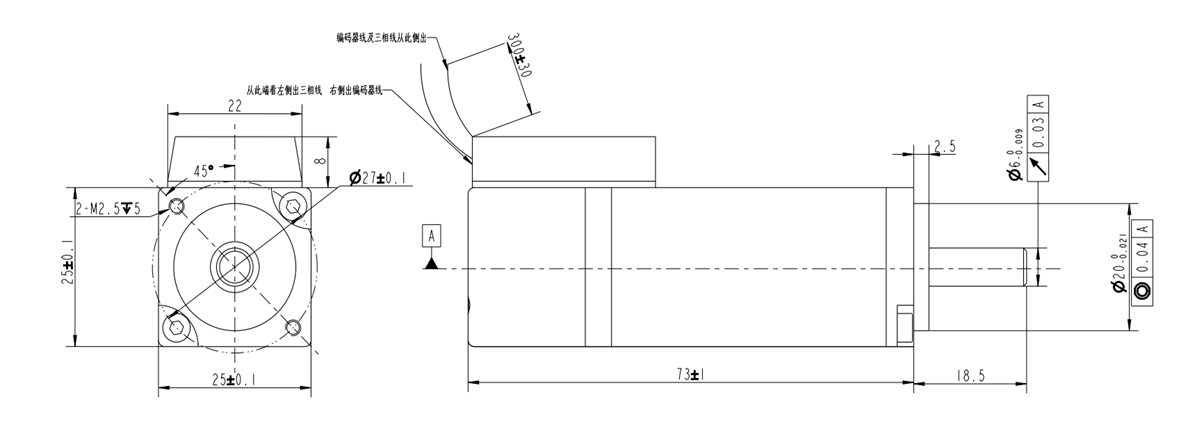

Motor size
