FL57BL-56JM300K
Product Planetary gearbox

FL57BL-56JM300K

57mm standard brushless motor with 56mm planetary gearbox
option:
  • FL57BL-56JM300K
  • FL57BL-56JM300K
  • FL57BL-56JM300K
  • FL57BL-56JM300K

无刷直流行星齿轮减速电机(内齿圈材质:金属)

BLDC Planetary Gear Moto (Ring Gear Material: Metal)

型号范围
FL57BL/56JM300K

Φ57减速器,允许转矩范围:3N.m~30N.m

57mm OD Planetary Gearbox, Permissible Load Range:3N.m~30N.m


接线方式   Wire Diagram


UVWVccHaHbHcGND
黄Yellow红Red黑Black红Red蓝Blue绿Green白White黑Black
UL1430   AWG20UL1430   AWG20


无刷电动机主要技术参数  Brushless Motor Technical Data


电机型号极 数相 数额定电压空载转速额定转速额定转矩额定功率峰值转矩峰值电流电阻电感
TYPENumber of polesNumber of phaseRated voltageNo-load speedRated speedRated torqueRated powerReak torquePeak currentLine to line resistanceLine to line inductance



VDCr/minr/minmN.mWmN.mAohmsmH
FL57BL54-36504336500040000.11460.396.81.634.4
FL57BL74-36504336500040000.22990.7120.642



无刷行星齿轮减速电机主要技术参数  Brushless Gear Motor Technical Data

配置FL57BLS54-3650无刷直流电机 (LD=53.6mm)     FL57BLS54-3650 DC Brushless Motor(LD=53.6mm)

减 速 比  Reduction ratio3.64.255.3313151823284352617296121154187220
减速级数  Number of gear trains11122222333333444
减速器长度(L)  Length(L)   mm37.837.837.849.549.549.549.549.560.860.860.860.860.860.871.971.971.9
额定转速  Rated speed  r/min111941750308267222174143937766564233262118
额定转矩  Rated torque  N.m0.360.420.531.21.31.622.53.54.24.95.87.79.7111316
最大瞬间允许负载N.m Max. permissible load in a short time9993636363636727272727272909090


配置FL57BLS74-3650无刷直流电机 (LD=73.6mm)  FL57BLS74-3650 DC Brushless Motor(LD=73.6mm)

减 速 比  Reduction ratio3.64.255.3313151823284352617296121154187220
减速级数  Number of gear trains11122222333333444
减速器长度(L)  Length(L)   mm37.837.837.849.549.549.549.549.560.860.860.860.860.860.871.971.971.9
额定转速  Rated speed  r/min111941750308267222174143937766564233262118
额定转矩  Rated torque  N.m0.710.841.12.32.73.24.156.98.49.8121519222730
最大瞬间允许负载N.m Max. permissible load in a short time9993636363636727272727272909090

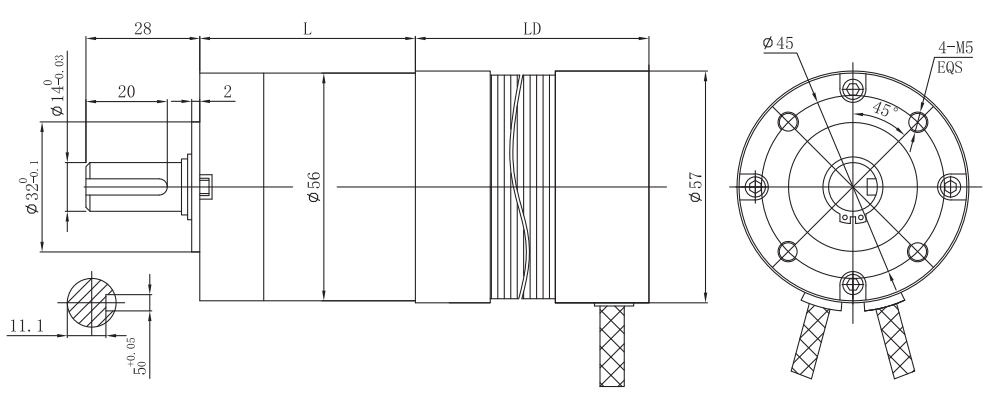

Motor size
