FE12-50
Product FE series Encoder

FE12-50

FE12-50 Series Encoder:
Two channels, optical type. Its typical application is printing machine, servo motor, working plant automation. Not recommed use on application referring to human safety, such as application with brake system.
option:
  • FE12-50
  • FE12-50
  • FE12-50
  • FE12-50

Parameter Overview:

Suitable

Motor

Motor size

Suitable for   57,60,70,80,86 and above(Stepper/Brushless/Servo Motor)

Motor Shaft   diameter

Suitable for shaft   diameter 3mm,4mm,5mm,6mm,6.35mm,8mm

Temperature

-40℃~100

Environmental conditions

Application

No corrosive, flammable, explosive, conductive   gas, liquid and dust.

Temperature

-40℃~100

Humidity

No more than 85% RH

Electrical   Parameter

Supply Voltage

5VDC±0.5V

Current   Consumption

≤60mA

Signal Output

Single-ended

5V,GND,A,B,Z

Differential

5V,GND,A+/A-,B+/B-,Z+/Z-

Output Level mode

(TTL Compatible)

Index Width

1/4T

Differential   Output Voltage

High Level   Output (VoH) ≥3.4V

Low Level Output (VoL) ≤0.4V

Differential   Signal Output Format

Line Drive 26C31

Optional Resolution(Unit:PPR)

Decimal100,200,360,400,500,1000,2000,2500

Binary256,512,1024

Duty cycle

50% ±10%

Phase difference

 90°±10°

Frequency Response

500KHz

Note: The signal   frequency = (Speed(Rpm) *  number of   Lines)/60

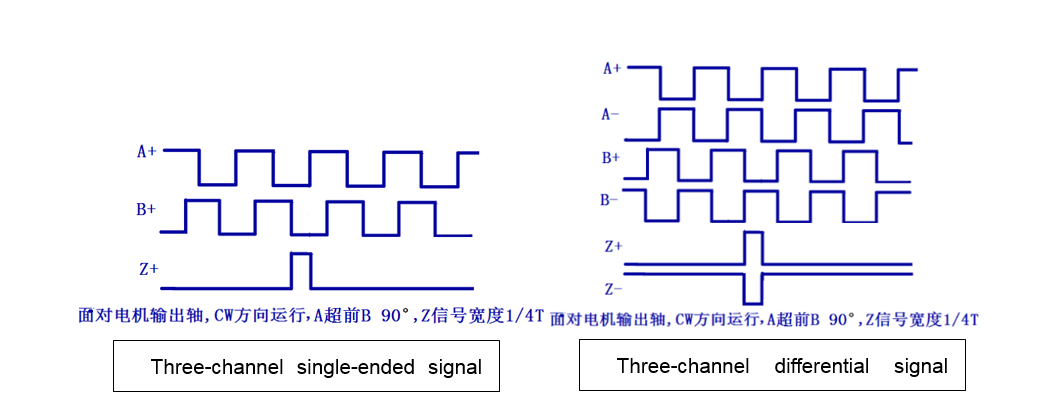

Waveform:image

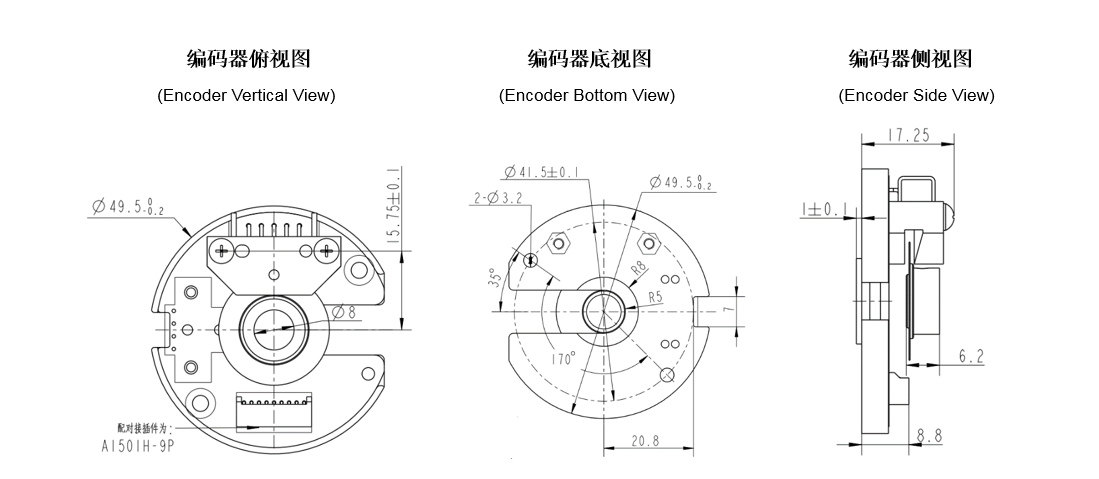

Motor size


Download
FE12-50系列 三通道高性能光电编码器 234.16 KB
