φ15 PM LINEAR STEPPING MOTOR
Product PM stepper motor

φ15 PM LINEAR STEPPING MOTOR

Fuxing stepper motors provide high-performance two-phase and three-phase hybrid stepper motors with various sizes and output torques, single polarity or bipolar control, and single or dual axis. The products are divided into standard type, torque enhanced type, high protection type, etc., which can fully meet the various application needs of different users.
option:
  • φ15 PM LINEAR STEPPING MOTOR
  • φ15 PM LINEAR STEPPING MOTOR
  • φ15 PM LINEAR STEPPING MOTOR
  • φ15 PM LINEAR STEPPING MOTOR

1. SPECIFICATIONS

Winding

Unipolar/Bipolar

Type

External

Step Angle

°

18

Voltage

V

4

5

12

Current/phase

mA

200

160

70

Resistance/Phase

Ω

20

33

180

Inductance/Phase

mH

506

8.7

49

Travel per step Avai

mm

0.02

0.025

0.05

NOTE:The motor can be designed with customized request

Screw diameter Optional① 3.0(mm)

Lead Optional ① 0.5、1.0(mm)

Travel per step Avail =(Step Angle/360)* Journey(mm)

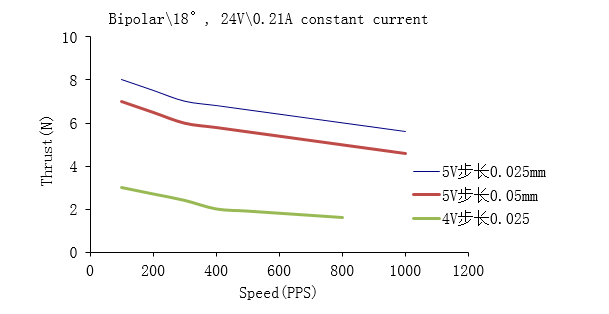

2. STEP SPEED AND THRUST CURVE

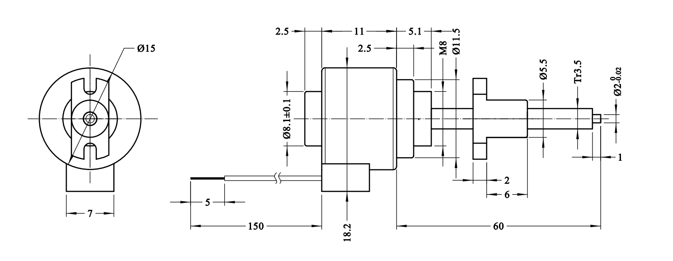

Motor size
