1. Specifications

Model	WS65L-07A250C-MUCA03
Diameter Size	170mm
Rated Voltage	36VDC
Rated Current	7 Arms
Maximum speed	250rpm(Line speed 2m/s)
Rated Torque	7 N.m
Peak Torque	18 N.m
Operating Temperature	-10℃～40℃（Non-freezing）
Operating Humidity	5～95%RH（Non-condensing）
Storage Temperature	-10℃～70℃（Non-freezing）
Storage Humidity	Below 90%RH（Non-condensing）
Protection Class	Ip67 except shaft
Weight	3Kg
Suggested Load (2 PCS)	Below 120kg

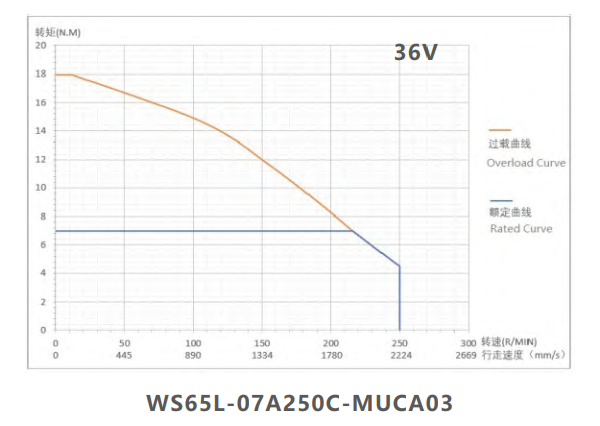

2. Torque Curve

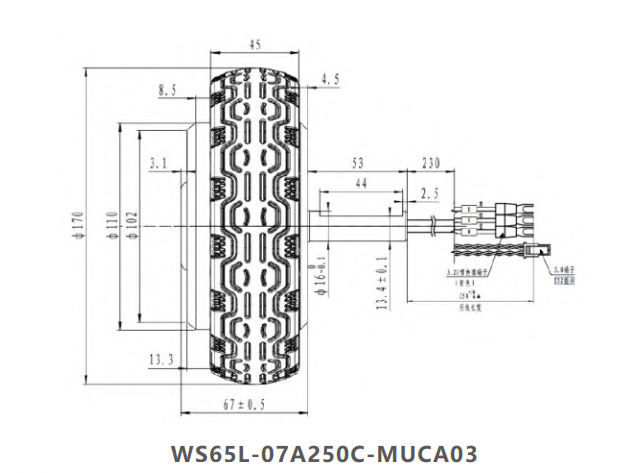

Motor size
