φ36 PM LINEAR STEPPING MOTOR
Product PM stepper motor

φ36 PM LINEAR STEPPING MOTOR

Fuxing stepper motors provide high-performance two-phase and three-phase hybrid stepper motors with various sizes and output torques, single polarity or bipolar control, and single or dual axis. The products are divided into standard type, torque enhanced type, high protection type, etc., which can fully meet the various application needs of different users.
option:
  • φ36 PM LINEAR STEPPING MOTOR
  • φ36 PM LINEAR STEPPING MOTOR
  • φ36 PM LINEAR STEPPING MOTOR
  • φ36 PM LINEAR STEPPING MOTOR
φ36 PM LINEAR STEPPING MOTOR
Inquiry Contact

1. SPECIFICATIONS

Winding

Unipolar/Bipolar

Type

Captive,   Non-Captive, External

Step Angle


7.5

15

Voltage

V

5

12

5

12

Current/phase

mA

560

230

560

230

Resistance/Phase

Ω

9

52

9

52

Inductance/Phase

mH

11.5

72

8

56

Travel per step Avail

mm

0.0127

0.0254

0.0254

0.0508

0.0508

0.1016

NOTE：The motor can be designed with customized request

Screw diameter Optional ① 6.35 ② 4.77（mm）

Lead Optional ① 0.6096、1.0、1.2192、1.27、2.4384、2.54、4.0、8.0......（mm）；② 0.635、1.27、2.54、5.08、10.16 ......（mm）

Travel per step Avail =(Step Angle/360)* Lead（mm）

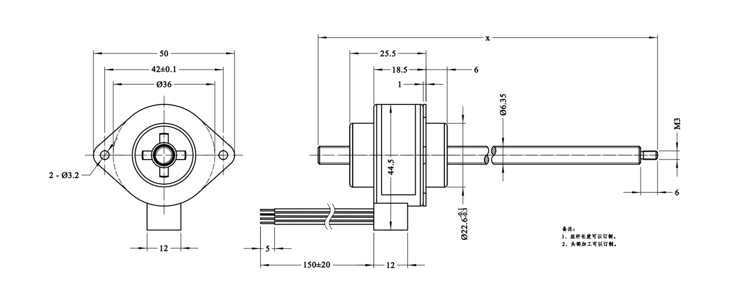

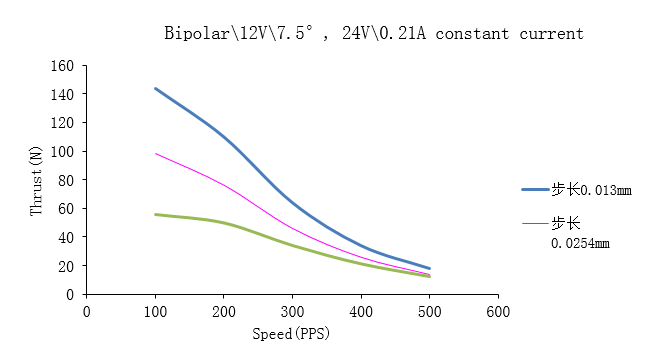

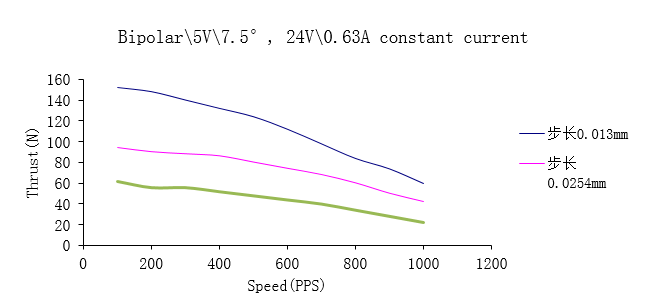

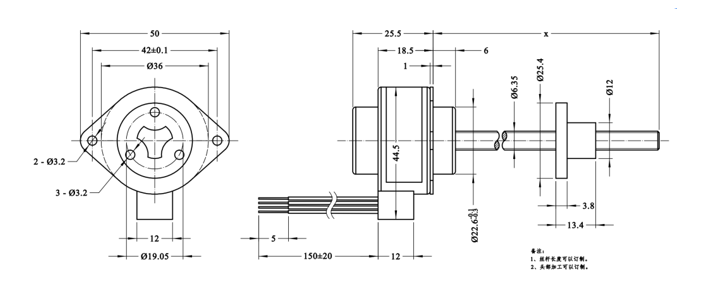

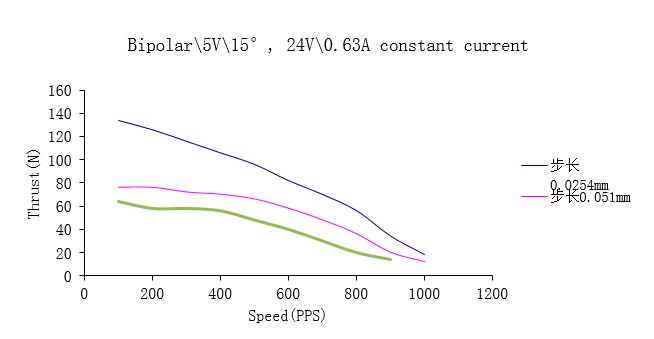

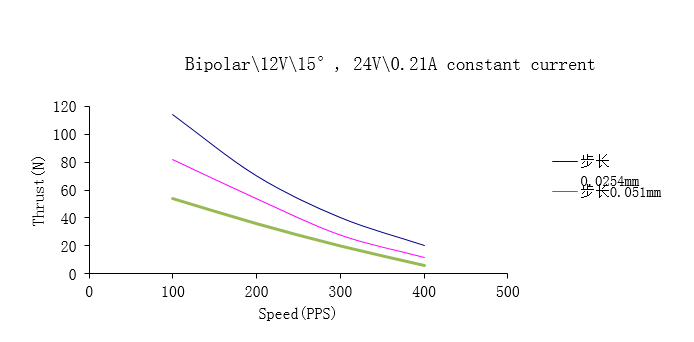

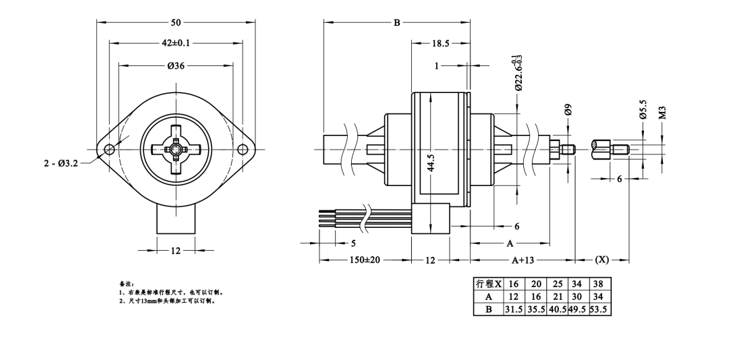

2. STEP SPEED AND THRUST CURVEimage
