FL42RBL-42JMG50K

Product Planetary gearbox

42mm circular brushless motor with 42mm planetary gearbox

option:

Inquiry Contact

BLDC Planetary Gear Moto （Ring Gear Material: Metal）

型号

范围

FL42RBL/42JMG50K

Φ42行星减速器，允许转矩范围：0.5N.m~5.0N.m

42mm OD Planetary Gearbox, Permissible Load Range: 0.5N.m~5.0N.m

配置FL42RBL30-2455无刷直流电机 (LD=30mm) FL42RBL30-2455 DC Brushless Motor(LD=30mm)

减速比 Reduction ratio		3.8	4.9	15	19	24	56	71	91	116	212	271	346	442	565
减速级数 Number of gear trains		1	1	2	2	2	3	3	3	3	4	4	4	4	4
减速器长度(L) Length(L)	mm	35.2	35.2	45.7	45.7	45.7	56	56	56	56	66.3	66.3	66.3	66.3	66.3
空载转速 No-load speed	r/min	1440	1127	367	289	229	98	77	60	47	26	20	16	12	9.7
额定转速 Rated speed	r/min	1047	820	267	211	167	71	56	44	34	19	15	12	9	7.1
额定转矩 Rated torque	N.m	0.07	0.09	0.24	0.31	0.39	0.82	1	1.3	1.7	2.8	3.5	4.5	5	5
最大瞬间允许负载Max. permissible load in a short time	N.m	1.5	1.5	6	6	6	12	12	12	12	15	15	15	15	15

配置FL42RBL60-2454无刷直流电机(LD=60mm) FL42RBL60-2454 DC Brushless Motor(LD=60mm)

减速比 Reduction ratio		3.8	4.9	15	19	24	56	71	91	116	212
减速级数 Number of gear trains		1	1	2	2	2	3	3	3	3	4
减速器长度(L) Length(L)	mm	35.2	35.2	45.7	45.7	45.7	56	56	56	56	66.3
空载转速 No-load speed	r/min	1414	1107	360	264	225	96	76	59	47	25
额定转速 Rated speed	r/min	1099	861	280	221	175	75	59	46	36	20
额定转矩 Rated torque	N.m	0.19	0.25	0.68	0.86	1.1	2.3	2.9	3.7	4.7	5
最大瞬间允许负载Max. permissible load in a short time	N.m	1.5	1.5	6	6	6	12	12	12	12	15

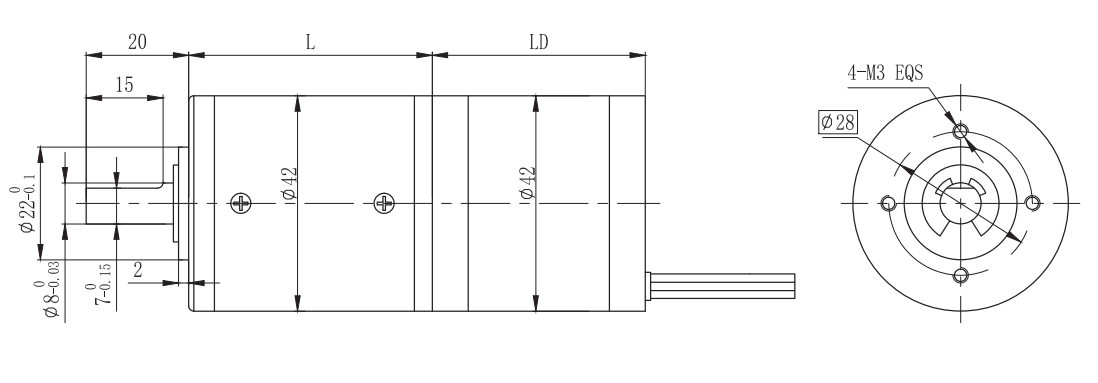

Motor size
