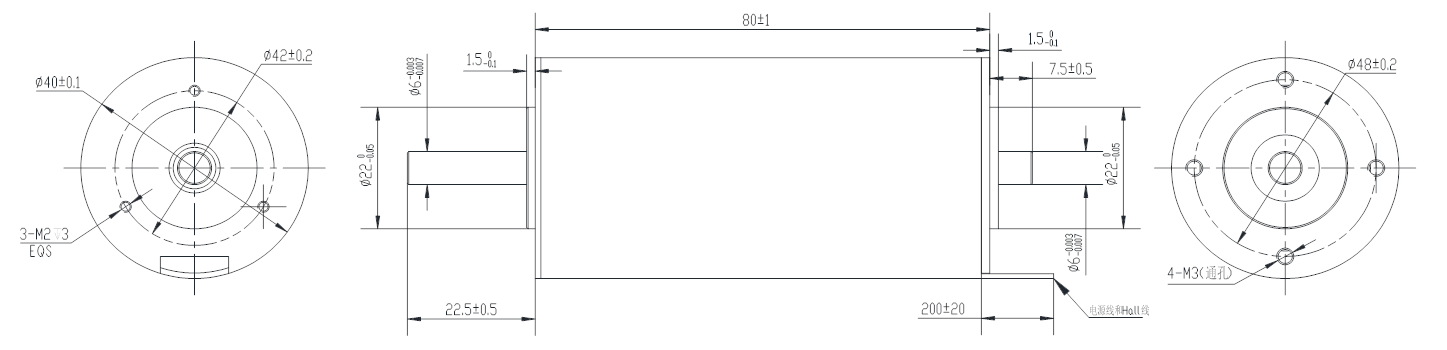

介电强度 ( Dielectric Strength )

600VAC/1S

绝缘电阻( Insulation Resistance )

100MΩ, 500VDC

环境温度 ( Ambient Temperature )

-20°C   ~   +50°C

绝缘等级 (Insulation Class)

Class B

径向间隙 ( Radial Play )

0.02mm@4N

轴向间隙 ( Axial Play )

0.14mm@4N

最大径向负载 ( Max radial force )

12N距法兰5mm

( 5mm From the flange)

最大轴向负载( Max axial force)

5N

极数  ( Number of poles )

4

4

相数  ( Number of phases )

3

3

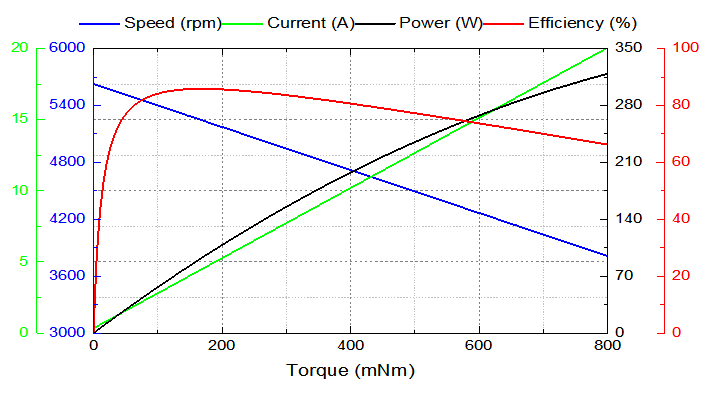

额定电压 ( Rated  voltage )

VDC

24

24

空载转速 (No load speed)

RPM

5700

8500

空载电流 (No load current)

A

0.33

0.5

额定转矩 ( Rated torque)

mN.m

250

200

额定电流 (Rated current)

A

7.0

8.0

额定速度 ( Rated speed )

RPM

5100

7850

额定功率 ( Rated power )

W

133.5

164

额定效率 (Rated efficiency)

%

82.3

83.5%

峰值转矩 ( Peak torque )

mN.m

750

600

峰值电流 ( Peak current )

A

19.6

24

线电阻 ( Line to line resistance )

ohms@20℃

0.32

0.2

线电感 ( Line to line inductance )

mH

0.061

0.041

转矩常数 ( Torque constant )

mNm/A

40.5

26.89

反电势 ( Back EMF )

Vrms/KRPM

3.0

1.99

外壳-环境热阻( Housing - Ambient thermal resistance)

K/W

3.87

3.67

电机热时间常数(Motor thermal time constant)

S

760

736

绕组最高允许温度(Max temperature of winding)

℃

155

155

电气时间常数(Electrical time constant)

ms

0.191

0.205

红色(Red)

AFR250-SY AWG26

霍尔电源正(Vcc)

蓝色(Blue)

霍尔 W ( Hw )

绿色(Green)

霍尔 V ( Hv )

白色(White)

霍尔 U ( Hu )

黑色(Black)

霍尔电源负(GND)

黄色(Yellow)

UL1332 AWG18

U相 ( Phase U )

红色( Red)

V相 ( Phase V )

黑色(Black)

W相 ( Phase W )
