Home > Product > Brushless Motor > BLDC motor with gearbox > Spur gearbox

Product Spur gearbox

FL86BLS-90JB

86mm brushless motor with 90mm spur gearbox

option:

FL86BLS-90JB

Inquiry Contact

Parameter

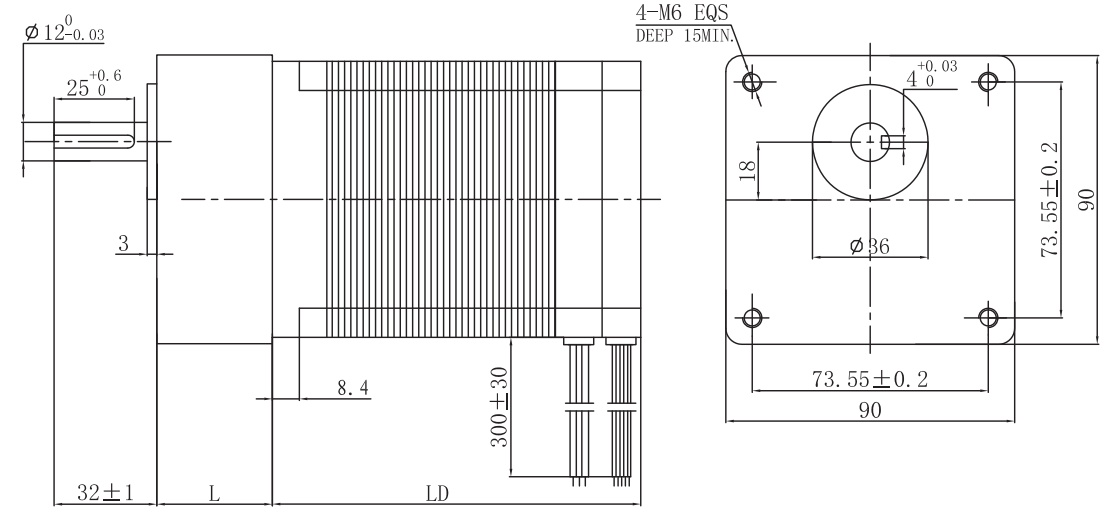

Overall Dimensions
Download
Cooperation

齿轮箱参数(Spur Gearbox Specifications)

减速比(Ratio)	3	5	6	7.5	9	10	12.5	15	18	20	25	30	36	40	50	60	75	90	100	120
重量\|(Weight)	1.3kg								1.5kg
减速级数(Number Of gear trains)	2								3					4
额定转矩(Nominal torque)	30N.m
极限转矩(Ultimate torque)	45N.m
效率(Efficiency)	0.81								0.73				0.66
回差(Backlash)	4 deg								3.5deg				2.5deg

正齿轮箱无刷直流电机参数(Spur Geared BLDC Motor Specifications)：

减速比(Ratio)		3	5	6	7.5	9	10	12.5	15	18	20	25	30	36	40	50	60	75	90	100	120
FL86BLS58-90JB	额定转矩(Rated torque) (N.m)	0.85	1.42	1.7	2.13	2.55	2.84	3.54	4.25	4.6	5.11	6.38	7.67	9.2	9.24	11.6	13.8	17.3	20.8	23.1	27.7
	额定转速(Rated speed) (RPM)	1000	600	500	400	333	300	240	200	167	150	120	100	83.3	75	60	50	40	33.3	30	25
	极限转矩(Ultimate torque) (N.m)	2.55	4.25	5.1	6.38	7.65	8.52	10.6	12.7	13.8	15.3	19.1	23	27.6	27.7	34.8	41.4	45
FL86BLS71-90JB	额定转矩(Rated torque) (N.m)	1.7	2.84	3.4	4.25	5.1	5.67	7.08	8.5	9.2	10.2	12.8	15.3	18.4	18.5	23.1	27.7	---	---	---	---
	额定转速(Rated speed) (RPM)	1000	600	500	400	333	300	240	200	167	150	120	100	83.3	75	60	50	---	---	---	---
	极限转矩(Ultimate torque) (N.m)	5.1	8.52	10.2	12.7	15.3	17	21.2	25.5	27.6	30.6	38.4	45					---	---	---	---
FL86BLS98-90JB	额定转矩(Rated torque) (N.m)	3.4	5.67	6.8	8.5	10.2	11.3	14.2	17	18.4	20.4	25.5	30.6	---	---	---	---	---	---	---	---
	额定转速(Rated speed) (RPM)	1000	600	500	400	333	300	240	200	167	150	120	100	---	---	---	---	---	---	---	---
	极限转矩(Ultimate torque) (N.m)	10.2	17	20.4	25.5	30.6	33.9	42.6	45					---	---	---	---	---	---	---	---
FL86BLS125-90JB	额定转矩(Rated torque) (N.m)	5.1	8.5	10.2	12.7	15.3	17	21.2	25.5	27.5	30.6	---	---	---	---	---	---	---	---	---	---
	额定转速(Rated speed) (RPM)	1000	600	500	400	333	300	240	200	167	150	---	---	---	---	---	---	---	---	---	---
	极限转矩(Ultimate torque) (N.m)	15.3	25.5	30.6	38.1	45						---	---	---	---	---	---	---	---	---	---

减速比(Ratio)	L2(mm)				L1(mm)
减速比(Ratio)	FL86BLS58-90JB	FL86BLS71-90JB	FL86BLS98-90JB	FL86BLS125-90JB	L1(mm)
3---15	72	86	112	139	42
18---120	72	86	112	139	60

Motor size
