Home > Product > Brushless Motor > BLDC motor with gearbox > Spur gearbox

Product Spur gearbox

FL57BLS-60JB

57mm brushless motor with 60mm spur gear box

option:

FL57BLS-60JB

Inquiry Contact

Parameter

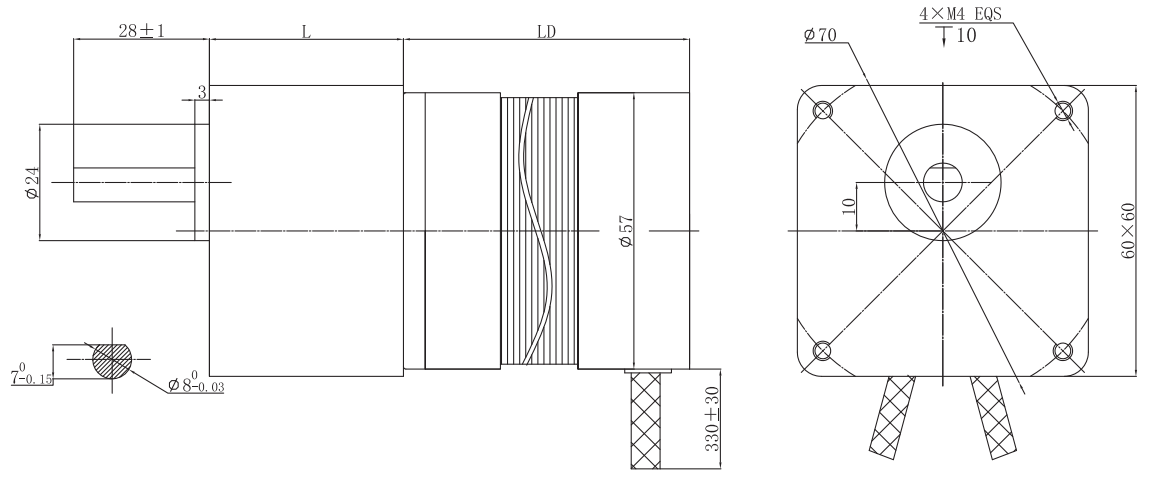

Overall Dimensions
Download
Cooperation

齿轮箱参数(Spur Gearbox Specifications)

减速比(Ratio)	3	5	7.5	10	12.5	15	25	30	50	75	90	100	120	150
减速级数(Number Of gear trains)	2						3			4
额定转矩(Nominal torque)	5N.m
极限转矩(Ultimate torque)	10N.m
效率(Efficiency)	0.81						0.73			0.66

正齿轮箱无刷直流电机参数(Spur Geared BLDC Motor Specifications)：

减速比(Ratio)		3	5	7.5	10	12.5	15	25	30	50	75	90	100	120
FL57BLS01-60JB	额定转矩(Rated torque) (N.m)	0.26	0.44	0.66	0.89	1.11	1.33	2	2.4	4	5.4	6.5	7.26	8.7
	额定转速(Rated speed) (RPM)	1333	800	533	400	320	266	160	133	80	53	44	40	33
	极限转矩(Ultimate torque) (N.m)	0.78	1.32	1.98	2.67	3.33	3.99	6	7.2	10
FL57BLS02-60JB	额定转矩(Rated torque) (N.m)	0.54	0.89	1.33	1.78	2.22	2.67	4	4.8	8	---	---	---	---
	额定转速(Rated speed) (RPM)	1333	800	533	400	320	266	160	133	80	---	---	---	---
	极限转矩(Ultimate torque) (N.m)	1.62	2.67	3.99	5.34	6.66	8	10			---	---	---	---
FL57BLS03-60JB	额定转矩(Rated torque) (N.m)	0.8	1.33	2	2.67	3.34	4	6	7.22	---	---	---	---	---
	额定转速(Rated speed) (RPM)	1333	800	533	400	320	266	160	133	---	---	---	---	---
	极限转矩(Ultimate torque) (N.m)	2.4	3.99	6	8	10				---	---	---	---	---
FL57BLS04-60JB	额定转矩(Rated torque) (N.m)	1.06	1.85	2.67	3.56	4.45	5.34	8	9.6	---	---	---	---	---
	额定转速(Rated speed) (RPM)	1333	800	533	400	320	266	160	133	---	---	---	---	---
	极限转矩(Ultimate torque) (N.m)	3.18	5.55	8	10					---	---	---	---	---

减速比(Ratio)	L2(mm)				L1(mm)
减速比(Ratio)	FL57BLS01-60JB	FL57BLS02-60JB	FL57BLS03-60JB	FL57BLS04-60JB	L1(mm)
3---15	59	79	99	119	32
25---150	59	79	99	119	40

Motor size

Download
