FL42CBL-42JXF100K

Product Planetary gearbox

42mm economical brushless motor with 42mm planetary gearbox

option:

Inquiry Contact

BLDC Planetary Gear Motor （Ring Gear Material: Metal and Powder）

FL42CBL/42JXF100K

Φ42行星减速器，允许转矩范围：1N.m~10N.m

42mm OD Planetary Gearbox,

Permissible Load Range: 1N.m~10N.m

配置FL42CBL60-2442无刷电机(LD=60mm) FL42CBL60-2442 BLDC Motor(LD=60mm)

减速比 Reduction ratio		3.7	5.2	14	19	27	49	59	68	82	95	115	181
减速级数 Number of gear trains		1	1	2	2	2	3	3	3	3	3	3	4
减速器长度(L) Length(L)	mm	31.5	31.5	42.1	42.1	42.1	52.5	52.5	52.5	52.5	52.5	52.5	62.9
空载转速 No-load speed	r/min	1132	811	300	221	156	86	71	62	51	44	37	23
额定转速 Rated speed	r/min	863	618	229	168	119	65	54	47	39	34	28	18
额定转矩 Rated torque	N.m	0.4	0.56	1.4	1.9	2.6	4.3	5.2	6	7.2	8.3	10	10
最大瞬间允许负载Max. permissible load in a short time	N.m	3	3	12	12	12	25	25	25	25	25	25	30

配置FL42CBL66-2459无刷电机(LD=66mm) FL42CBL66-2459 BLDC Motor(LD=66mm)

减速比 Reduction ratio		3.7	5.2	14	19	27	49	59	68	82	95	115
减速级数 Number of gear trains		1	1	2	2	2	3	3	3	3	3	3
减速器长度(L) Length(L)	mm	31.5	31.5	42.1	42.1	42.1	52.5	52.5	52.5	52.5	52.5	52.5
空载转速 No-load speed	r/min	1590	1139	421	311	219	120	100	87	72	62	51
额定转速 Rated speed	r/min	1081	769	286	211	148	82	68	59	49	42	35
额定转矩 Rated torque	N.m	0.5	0.7	1.7	2.3	3.3	5.4	6.5	7.5	9	10	10
最大瞬间允许负载Max. permissible load in a short time	N.m	3	3	12	12	12	25	25	25	25	25	25

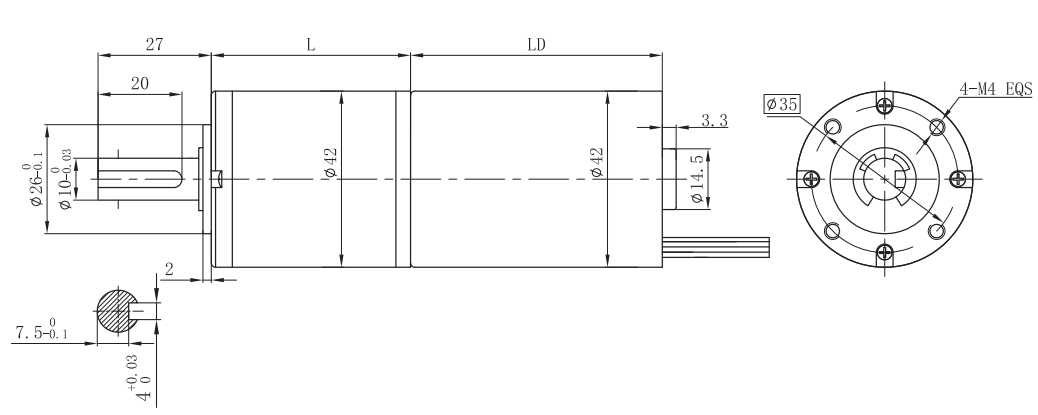

Motor size
