无刷直流行星齿轮减速电机（内齿圈材质：粉末金属）

BLDC Planetary Gear Motor （Ring Gear Material: Metal and Powder）

型号

范围

FL36CBL/36JXF50K

Φ36行星减速器，允许转矩范围：0.5N.m~5.0N.m

36mm OD Planetary Gearbox,Permissible Load Range: 0.5N.m~5.0N.m

接线方式 Wire Diagram

U	V	W	Vcc	Ha	Hb	Hc	GND
黄Yellow	棕Brown	橙Orange	红Red	蓝Blue	绿Green	白White	黑Black
UL1430 AWG24			UL1430 AWG26

无刷电动机主要技术参数 Brushless Motor Technical Data

电机型号	极数	相数	额定电压	空载转速	额定转速	额定转矩	额定功率	峰值转矩	峰值电流	电阻	电感
TYPE	Number of poles	Number of phase	Rated voltage	No-load speed	Rated speed	Rated torque	Rated power	Reak torque	Peak current	Line to line resistance	Line to line inductance
			VDC	r/min	r/min	mN.m	W	mN.m	A	ohms	mH
FL36CBL50-2460	8	3	24	6000	4800	55	28	165	4.5	1.2	1.2
FL36CBL57-2455	8	3	24	5500	4500	70	33	210	5.4	1.05	1
FL36CBL60-2458	8	3	24	5800	4800	80	40	240	7	0.95	0.85
FL36CBL65-2458	8	3	24	5800	4800	90	45	270	7.5	0.88	0.8

无刷行星齿轮减速电机主要技术参数 Brushless Gear Motor Technical Data

配置FL36CBL50-2460无刷电机(LD=50mm) FL36CBL50-2460 BLDC Motor(LD=50mm)

减速比 Reduction ratio		3.71	5.18	14	19	27	35	49	59	68	82	95	115
减速级数 Number of gear trains		1	1	2	2	2	2	3	3	3	3	3	3
减速器长度(L) Length(L)	mm	29	29	38.4	38.4	38.4	38.4	45.7	45.7	45.7	45.7	45.7	45.7
空载转速 No-load speed	r/min	1617	1158	429	316	222	171	122	102	88	73	63	52
额定转速 Rated speed	r/min	1294	927	343	253	178	137	98	81	71	59	51	42
额定转矩 Rated torque	N.m	0.18	0.26	0.62	0.85	1.2	1.6	2	2.4	2.7	3.3	3.8	4.6
最大瞬间允许负载Max. permissible load in a short time	N.m	1.5	1.5	6	6	6	6	10	10	10	10	12	12

配置FL36CBL57-2455无刷电机(LD=57mm) FL36CBL57-2455 BLDC Motor(LD=57mm)

减速比 Reduction ratio		3.71	5.18	14	19	27	35	49	59	68	82	95	115
减速级数 Number of gear trains		1	1	2	2	2	2	3	3	3	3	3	3
减速器长度(L) Length(L)	mm	29	29	38.4	38.4	38.4	38.4	45.7	45.7	45.7	45.7	45.7	45.7
空载转速 No-load speed	r/min	1482	1062	393	289	204	157	112	93	81	67	58	48
额定转速 Rated speed	r/min	1213	869	321	237	167	129	92	76	66	55	47	39
额定转矩 Rated torque	N.m	0.23	0.33	0.79	1.1	1.5	2	2.5	3	3.5	4.2	4.9	5
最大瞬间允许负载Max. permissible load in a short time	N.m	1.5	1.5	6	6	6	6	10	10	10	10	12	12

配置FL36CBL60-2458无刷电机(LD=60mm) FL36CBL60-2458BLDC Motor(LD=60mm)

减速比 Reduction ratio		3.71	5.18	14	19	27	49	59	68	82	95	115
减速级数 Number of gear trains		1	1	2	2	2	3	3	3	3	3	3
减速器长度(L) Length(L)	mm	29	29	38.4	38.4	38.4	45.7	45.7	45.7	45.7	45.7	45.7
空载转速 No-load speed	r/min	1563	1120	414	305	215	118	98	85	71	61	50
额定转速 Rated speed	r/min	1294	927	343	253	178	98	81	71	59	51	42
额定转矩 Rated torque	N.m	0.27	0.37	0.91	1.2	1.8	2.9	3.5	4	4.8	5	5
最大瞬间允许负载Max. permissible load in a short time	N.m	1.5	1.5	6	6	6	10	10	10	10	12	12

配置FL36CBL65-2458无刷电机(LD=65mm) FL36CBL65-2458 BLDC Motor(LD=65mm)

减速比 Reduction ratio		3.71	5.18	14	19	27	49	59	68	82	95	115
减速级数 Number of gear trains		1	1	2	2	2	3	3	3	3	3	3
减速器长度(L) Length(L)	mm	29	29	38.4	38.4	38.4	45.7	45.7	45.7	45.7	45.7	45.7
空载转速 No-load speed	r/min	1563	1120	414	305	215	118	98	85	71	61	50
额定转速 Rated speed	r/min	1294	927	343	253	178	98	81	71	59	51	42
额定转矩 Rated torque	N.m	0.3	0.42	1	1.4	2	3.2	3.9	4.5	5	5	5
最大瞬间允许负载Max. permissible load in a short time	N.m	1.5	1.5	6	6	6	10	10	10	10	12	12

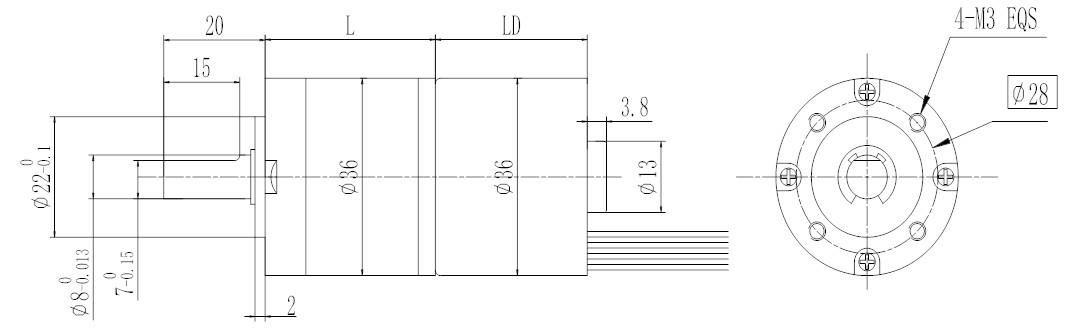

Motor size
